Technical Reference Manual

Overview

The FLO-2D Plugin for QGIS is a tool to develop, format, analyze, and display data used by the FLO-2D Flood Model. The Plugin can import project data, generate data and export appropriately formatted FLO-2D data input files for a FLO-2D Project. This reference manual describes the assumptions, functions, and processes applied in the QGIS Plugin. A companion manual, the FLO-2D QGIS Plugin User’s Manual, describes the workflow, outlines the data structure and presents tutorials for the Plugin. It does not address the functionality and use of the FLO-2D model which has a separate set of reference manuals.

Data File Structure

The FLO-2D QGIS Plugin uses native QGIS layers to display FLO-2D project data. Several aspects of the Plugin file structure are fundamental to understanding project data organization and workflows.

GeoPackage File

All FLO-2D project data is stored in an SQLite database conforming to the GeoPackage specification. The GeoPackage specification is a product of the Open Geospatial Consortium (OGC) and stores spatial data in a non-proprietary database format. For the FLO2D QGIS Plugin, the GeoPackage file is a *.gpkg file. This file is the central repository for project metadata, spatial information, data layers, and attributes. The Plugin generates and requires a single GeoPackage file for each project.

The GeoPackage file can be perused manually using any compatible SQLite database viewer. Manual editing of the file, however, is not recommended and manual review of the file is not required for the use of the Plugin. Plugin tools process and store data within the project GeoPackage. FLO-2D uses *.dat or *.hdf5 files. These files are exported from the *.gpkg database. Figure 1 shows the layout of the layers and tables in QGIS that are used by the FLO-2D Plugin.

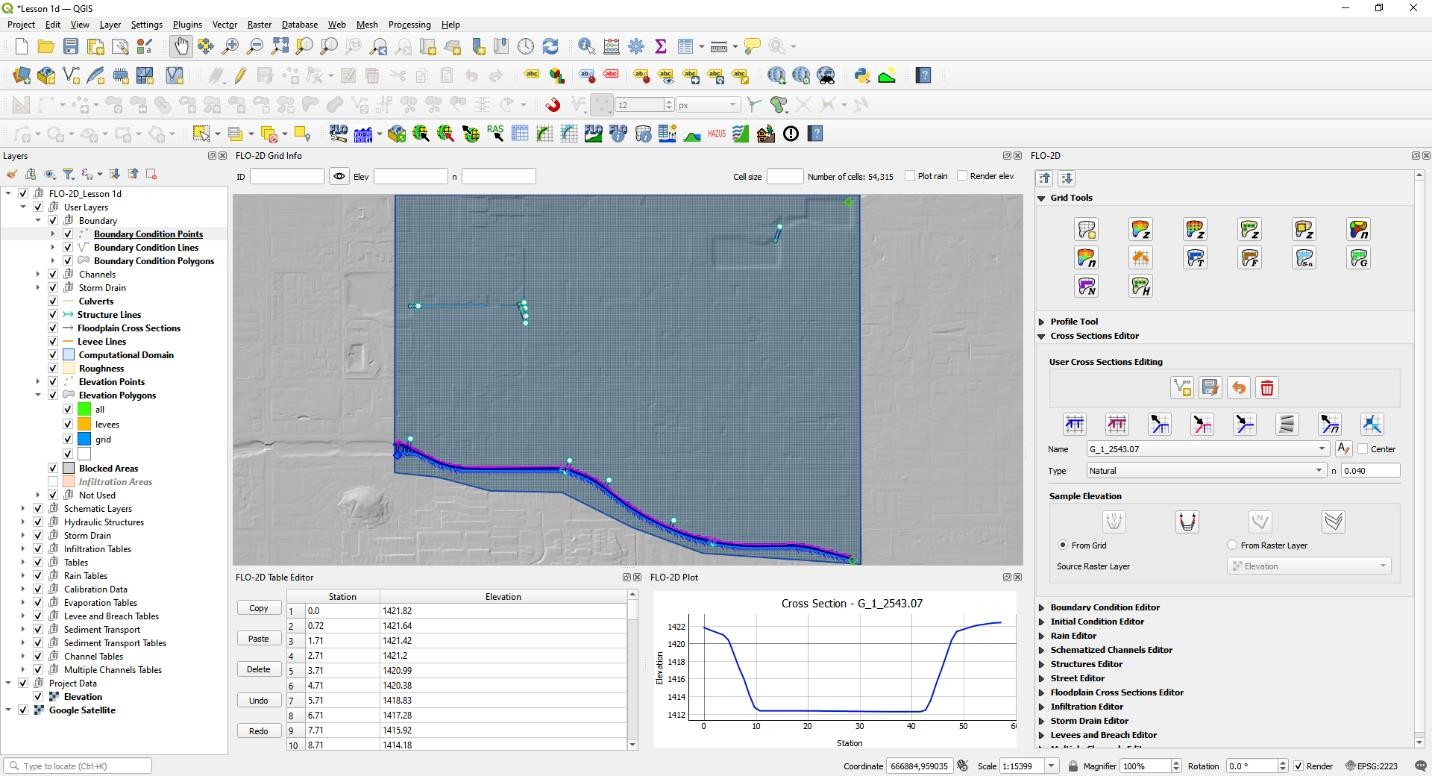

Figure 1. Overview of the QGIS Layout and Layer Structure.

Project Metadata

Non-spatial project metadata, such as data in the CONT.DAT and TOLER.DAT files, as well as the project spatial reference, are stored in tables within the project GeoPackage file. While the project spatial reference is not a spatial dataset, the spatial project data within the GeoPackage file is sensitive to the reference coordinate projection and changes to the selected spatial projection will require regeneration of the project GeoPackage.

Project Spatial Data

Project spatial data is stored within the project GeoPackage file. All input datasets are assumed to have the same spatial coordinate reference system (CRS) as assigned to the FLO-2D project. Datasets in other spatial reference systems should first be projected into the FLO-2D project spatial reference system before attempting to use any of the FLO-2D QGIS Plugin tools.

FLO-2D Plugin

Python Plugin

The FLO-2D Plugin is built with python code. The code is open source and available for any programmer to review or edit. The code is stored in the flo2d directory of the qgis/python/plugins folder (Figure 2).

Figure 2. Plugin Folder.

The code can be viewed, queried and edited with any text editor including UltraEdit, Notepad++ or Textpad. The files include the following:

• *.png – icon files

• *.py – python code files

• *.qml – QGIS layer styles

• *.svg – icon files

• *.sql – SQL code relational database information

• *.ui – QT Creator window editor

The plugin is organized into utility-based directories for plugin files that perform specific functions. For example, there is a folder for the toolbar and one for the sidebar widgets.

The plugin code is built with Pycharm, and Eclipse. The python formatting module Black is used to format the code. Additional python modules are required for some processing purposes. Numpy, H5PY, HDF5, DASK, and DASK Distributed modules may be installed with the OSGEO4W network installer. This method is more complicated than the stand-alone installer but allows for build updates, and multiple versions. It may be necessary to get IT Admin support to add python modules to the QGIS version of Python.

Plugin Processes

The Plugin builds a GeoPackage file. It is generated by running the FLO-2D Plugin Settings Tool. The GeoPackage contains data to define the layers and tables, create layer styles and views. The Plugin includes all the tools to digitize, import, view, edit and export FLO-2D project data. The processes include:

• Import/export tools

• Elevation interpolation and adjustment tools

• Levee calculation

• Sampling spatial data

• Schematization

• Rainfall interpolation

• Infiltration interpolation

• Storm drain import, export, digitize

• Storm drain SWMM.inp development tools

• Channel development tools

• Sediment transport and mudflow development tools

• HAZUS development tools

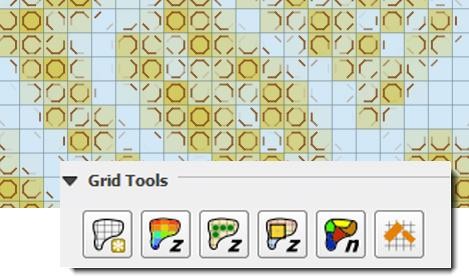

Grid System

The grid system is defined by using the extent of the Computational Domain to generate a grid system boundary. The code generates a bounding box using the x (max, min), and y (max, min) of the computational domain polygon. The bounding box aligned to the upper and lower left extent of the computational domain polygon. The cells of the grid are individual polygons ordered by row and column. Only polygons that intersect the Computation Domain layer are created. The default numbering system is in order of row and then column (Figure 3).

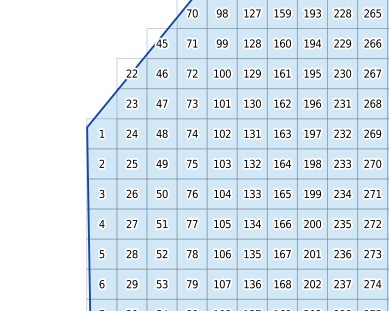

Figure 3. Grid Numbering Scheme.

The Number Units and Coordinate Reference System (CRS) are established when the project GeoPackage is developed using the FLO-2D Plugin Settings Tool. The grid alignment is generally set to the extent of the computational domain, but it can be aligned to the raster as well as shown in Figure 4.

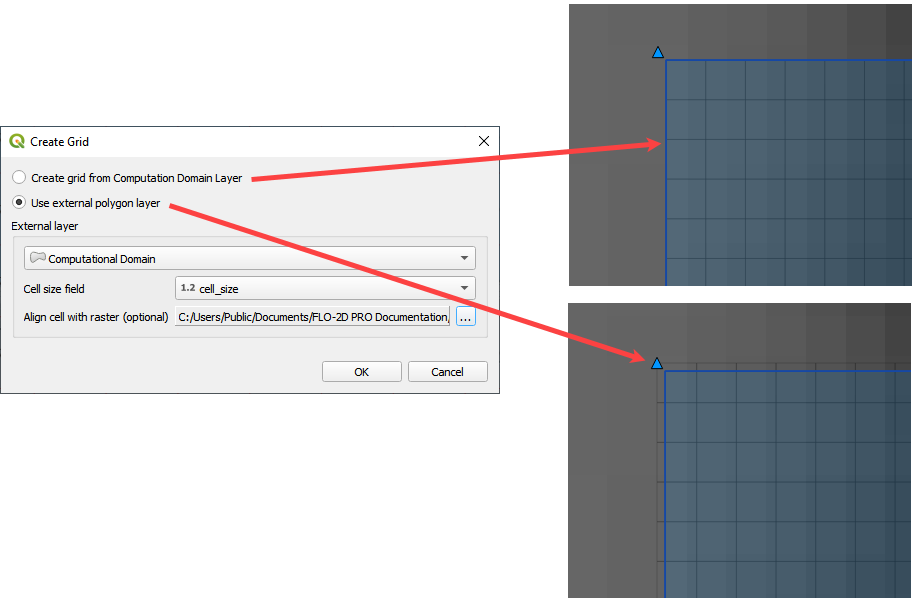

Figure 4. Grid Element Alignment.

Elevation from Raster

The Elevation from Raster calculator uses the alignment and cell size of the grid system to set the origin and raster resolution of the Warp tool. The Geospatial Data Abstraction Library (GDAL) Warp tool is used by the FLO-2D Plugin to generate a temporary elevation file based on one of twelve sampling methods: Near, bilinear, cubic, cubic spline, Lanczos, average, mode, max, min, med, q1 and q3 (Figure 5). The warp is an area weighted calculation of every pixel that touches a single grid element.

After the temporary raster is complete, the grid layer elevation attribute is filled using a centroid point sampling tool. The temporary raster is then removed from QGIS memory, but the interpolate raster is saved alongside the source raster. The external raster layer does not need to have the same coordinates as the project. The warp will transform the new raster into the grid coordinate system. If the elevation layer has the wrong units i.e., meters vs ft, convert the raster to the correct units with the raster calculator before running the elevation from raster processing tool.

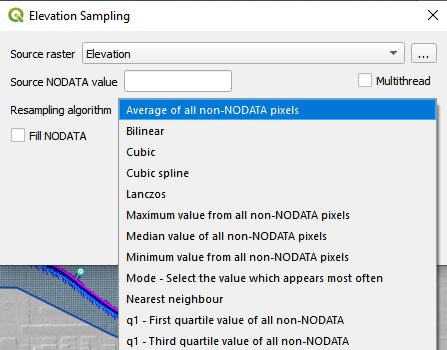

Figure 5. Raster Elevation Dialog Box.

The GDAL warp method is modified so that only the raw input resolution of the raster is applied. This is the most accurate method for the GDAL warp. It is slower than using the ORV data.

Elevation from LiDAR

The Elevation from LiDAR calculator uses a direct average of the points within each cell. (Figure 6).

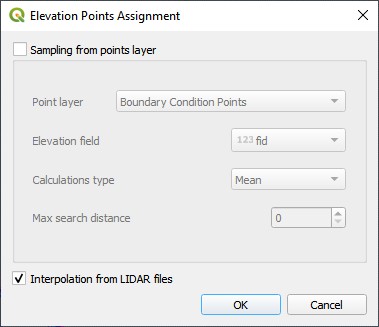

Figure 6. Point Elevation Dialog Box.

If a cell does not contain a point, the cell elevation is averaged from nearest neighbors (Figure 7). The search distance is important if the LiDAR data is filtered from buildings, overpasses, or bridges. LiDAR data for FLO-2D usually represents bare ground. If the Max search distance is too low, there may be a need to process the neighbor calculation more than once. The LiDAR processing tool will identify how many iterations are required to fill the missing grid element elevation. Please remember that there are many excellent LiDAR processing tools available, and this tool is fast and accurate so long as there aren’t too many very large buildings, overpasses, or bridges.

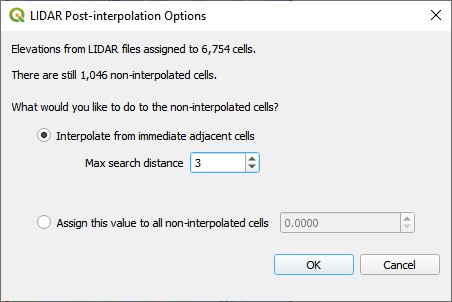

Figure 7. Interpolate Empty Cells Dialog.

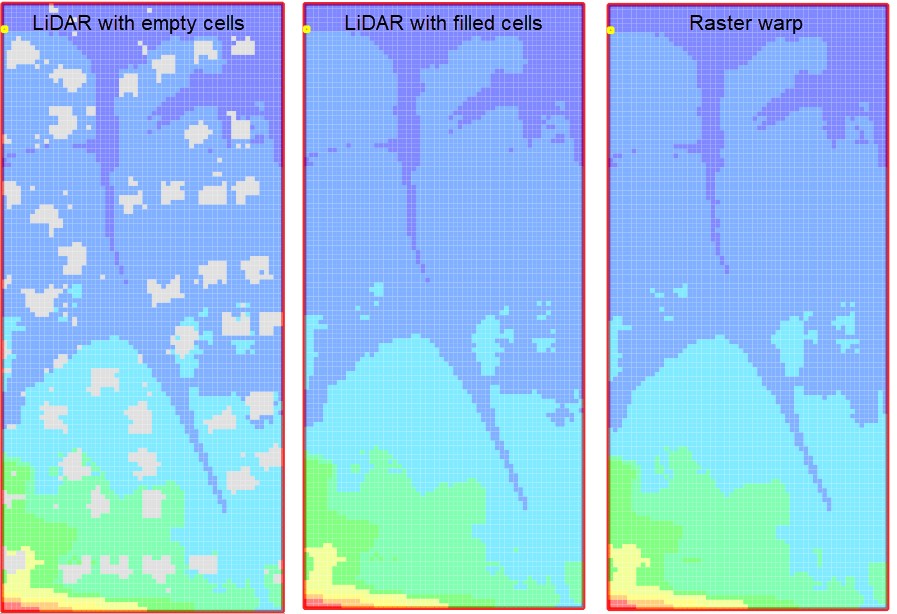

Figure 8 shows the elevation interpolation before the missing cell correction, after the missing cell correction and the raster warp.

Figure 8. Results Test Case 5.

Elevation Adjustment Tool

The Grid Element Adjustment tool is used to make modifications and corrections to the grid element elevations without having to manipulate the original elevation dataset. It is used to make corrections where the elevation might be assigned incorrectly because of the grid element size. This process can be used to define first floor building elevations, invert elevations at headwalls, inlet rim elevation corrections and channel invert and bank elevation corrections. The Grid Elevation Adjustment tool uses several unique processes to redefine baseline elevation data.

User Layers Mode

The following User Layer corrections are available (Figure 6):

• TIN (based on elevation points and polygons)

• TIN (based on elevation polygon boundaries)

• Elevation polygons attributes

• Grid statistics within blocked areas

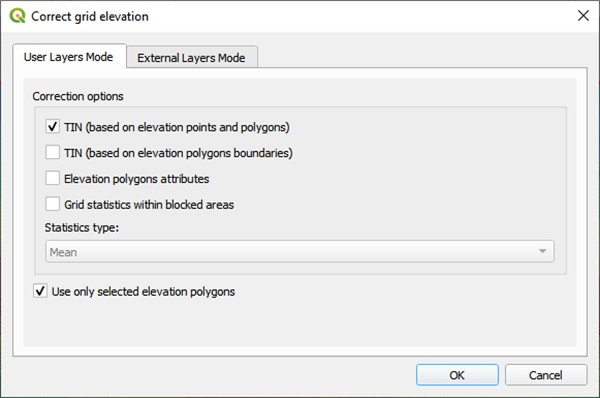

Figure 9. Correct Elevation Dialog Box.

TIN (based on elevation points and polygons)

This method uses a set of elevation points surrounded by triangular irregular network (TIN). The TIN generator is derived from the QgsTINInterpolator feature class that is built in to the QGIS processor libraries. The TIN generator uses the x y coordinates of the elevation correction polygon and the points within the polygon to define the TIN mesh and elevation. The TIN is finally intersected to the grid and the new elevations are assigned to each grid element covered by the TIN.

TIN (based on elevation polygon boundaries)

This method uses a polygon boundary to define a TIN. The TIN generator is derived from the QgsTINInterpolator feature class that is built in to the QGIS processor libraries. The TIN generator uses the x y coordinates of the elevation correction polygon where it intersects to the grid system. The elevations along the boundary of the polygon are used to fill or cut the data from channels or levees. The TIN is finally intersected to the grid and the new elevations are assigned to each grid element covered by the TIN.

Elevation Polygons Attributes

This method intersects the polygon layer to the grid and assigns the elevation or the elevation correction that is defined in the Polygon Attribute Elevation or Correction fields.

Grid Statistics within Blocked Areas

This method intersects the polygon to the grid and calculates the elevation statistics of min, max and mean for each cell within the polygon. The user can select the statistic to use as the final grid element elevation assignment. Each cell within the polygon will be assigned the same elevation.

External Layers Mode

The grid element correction from External Layers Mode offers several methods to correct or edit elevations in the Grid layer from polygon layers that can be imported into the FLO-2D Project in QGIS (Figure 10). The tool uses the same correction calculations discussed above in the User Layers Mode but applies them to imported polygon layers.

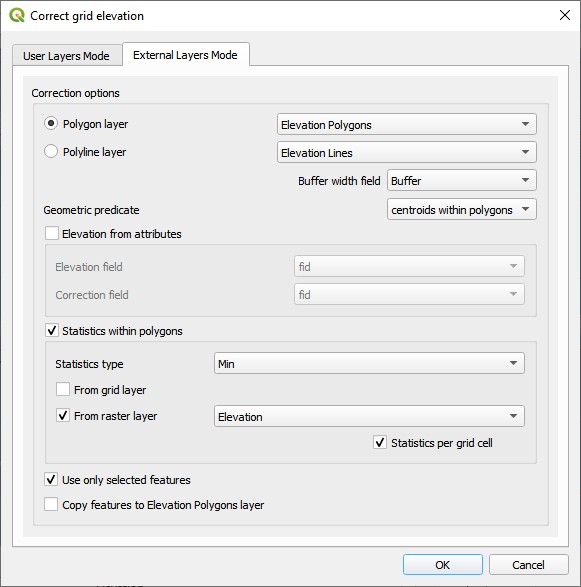

Figure 10. Correct Grid Elevation Dialog Box.

The polygon layer is any polygon layer in the layers list. It can be a layer that is part of the geopackage or an imported shapefile layer. The polygons in the list should cover grid elements that need to be corrected.

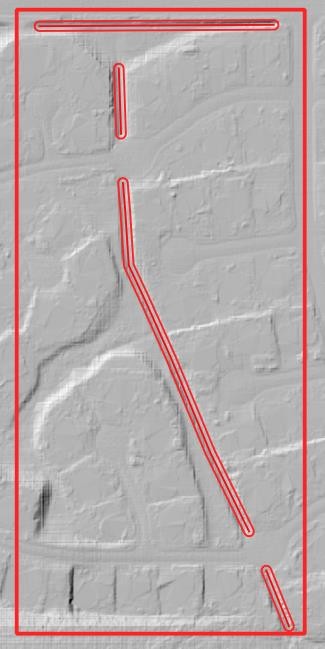

The polyline layer can be any external shapefile layer. It requires a buffer field that contains the width of the feature that is being sampled. This could be a ditch or a levee or a gutter. If the buffer width is less than the width of one grid element, the grid element width is sufficient as a buffer width. The polyline can be placed at the center of a feature that needs an adjustment like the ones in Figure 11. The polyline layer is essentially a polygon with the line as a center.

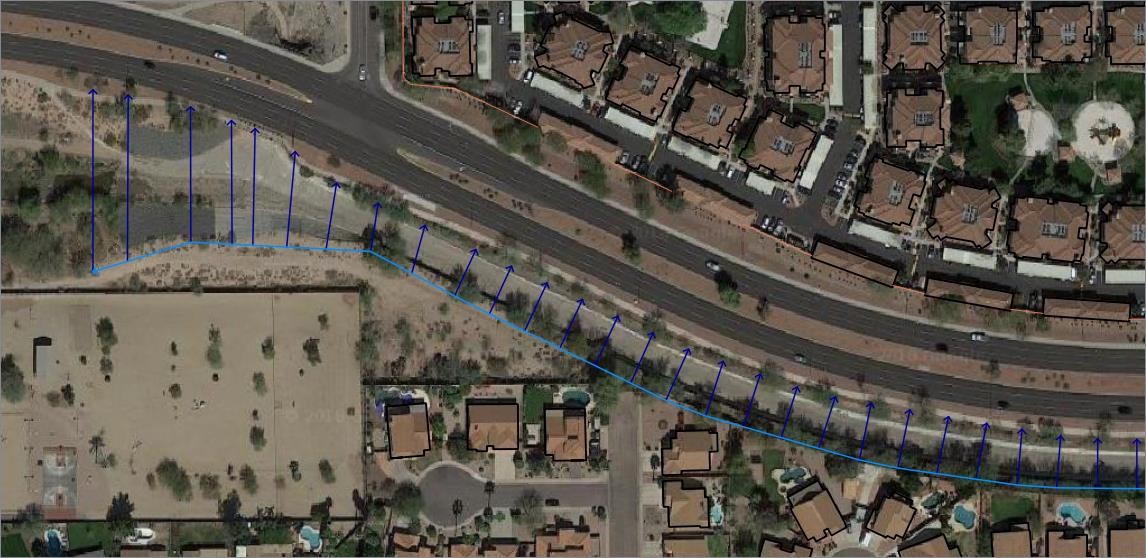

Figure 11. Polyline with Buffer.

The geometric predicate is the intersection method that identifies which grid elements will be adjusted. Grids within polygons means the polygon must cover the whole grid element for the grid element to be corrected. Centroids within polygons are more forgiving and only the centroid of each grid element needs to be within a polygon to be corrected.

The elevation from attributes correction tool applies a direct correction from the elevation and or correction field of the Polygon Layer. The elevation field should contain the new desired elevation in ft or m for the polygon and the correction field should contain NULL or a positive or negative correction value in ft or m. Depending on the geometric predicate, the correction is applied to each grid element or each centroid that falls within the polygon.

The statistics within polygons correction tool uses zonal statistics on wither a group of grid element or a group of pixels that are identified by the polygon. If “from grid layer” is selected, the zonal statistics are applied to the group of grid elements or centroids within the polygon. Each grid element or centroid will get a min, max or mean of the intersected grid elements. If “from raster layer” is selected, the zonal statistics are applied to the raster pixels within the polygon. Each grid element will be assigned a mean, max or min value of raster pixels within the whole elevation polygon. If statistics per grid cell is checked, the raster zonal statistics will be applied to the individual grid elements within the polygon. The checkbox should be used in most cases unless a single elevation is desired for a group of cells.

Levee Tool

The Levee Elevation Tool sees the grid as a set of octagonal sides at a specified distance from the node (Figure 12).

Figure 12. Grid Centroid and Octagonal Sides.

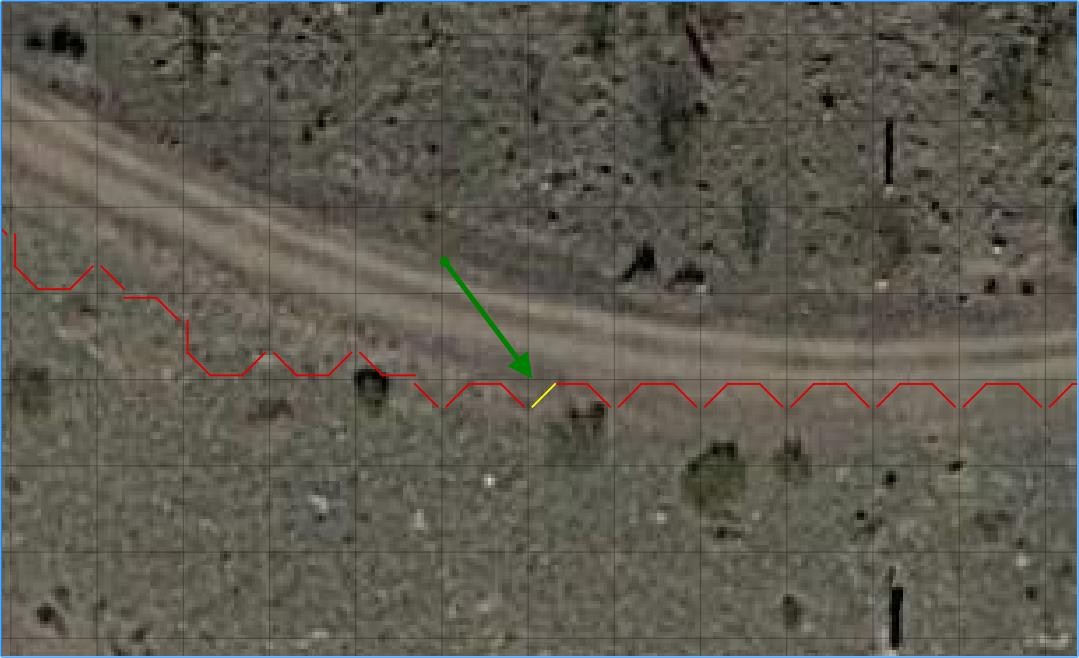

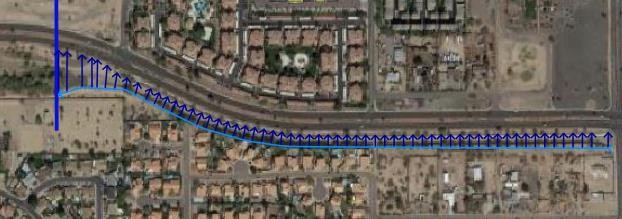

The Levee Elevation Tool uses polylines (Levee Lines) and crest elevation points (Elevation Points) to calculate and digitize the sides of the grid to the Levees layer as “cutoff directions”. The tool uses a combination of polyline to polygon intersection and point to point interpolation to establish the levee position and crest elevation. It intersects each side of the octagon with the Levee Line and a buffer to create individual polylines for each levee cutoff direction as shown in Figure 13.

Figure 13. Levee Cutoff Directions.

Walls

The wall calculator is a tool that is used to add polyline data to the Levee Lines (User Layer). This data can represent any levee like feature but was specifically designed to create urban wall features. The wall features are copied from a polyline shapefile with the attributes: crest elevation, correction, and name. The features are copied into the Levee User Layer.

Digitize a wall shapefile to represent the walls that will make a significant impact to the flooding in an urban development. This represents a wall that may prevent flooding in a neighborhood or walls that may cause flooding by blocking water. The depth and velocity vector maps can help identify walls that are hydraulically significant.

Wall Polyline Properties

Walls that have the potential for failure due to collapse should also be identified. The shapefile must have polyline geometry and should have the following attributes:

• Name – Feature name (string). The Name field is required by the dialog box, but the values can be null.

• Elevation – Crest elevation (ft or m) (real). For walls, this is the top elevation of the wall. This field is required but can be NULL. If NULL, the wall elevation is calculated from the correction field and described in correction as an elevation.

• Correction – Elevation correction (ft or m) (real) Null correction is OK.

  • The correction field is ignored if it is NULL. If Elevation is not NULL and Correction is positive, it will be added to the elevation of the wall.

  • If Elevation is not NULL and Correction is negative, it will be subtracted from the elevation of the wall.

  • If Elevation is NULL and Correction is filled, the Correction is used as a wall height and is applied to a wall elevation calculation using the grid max grid element + the wall height.

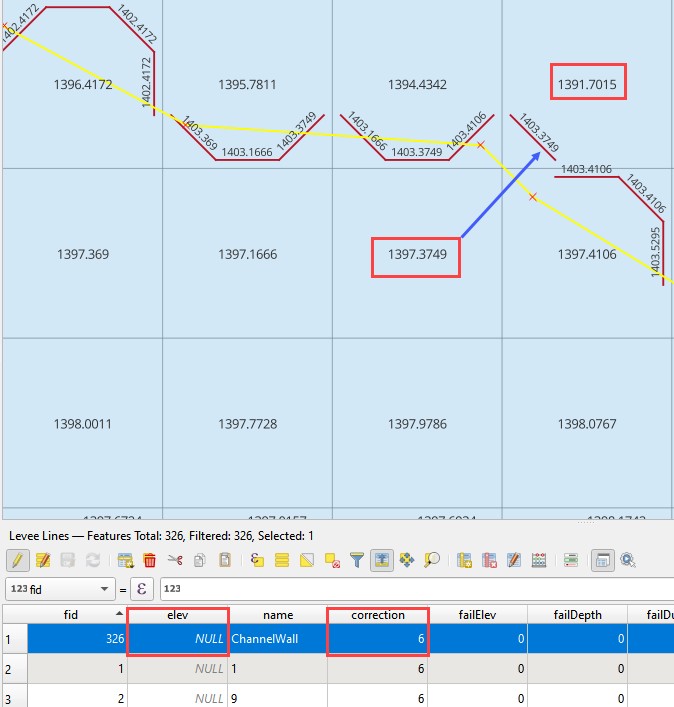

Figure 14 shows the relationship between a NULL elevation field and a wall height applied to the correction field.

Figure 14. Wall Height vs Wall Elevation.

Wall Failure

The wall calculator is used to assign failure data to the levee polylines. The data required for wall failure is as follows:

• Fail Elevation or Fail Depth

• Duration (0 default else, duration water is on levee before failure starts)

• Maximum Width (0 for wall collapse)

• Vertical Fail Rate (0 for wall collapse)

• Horizontal Fail Rate (0 for wall collapse)

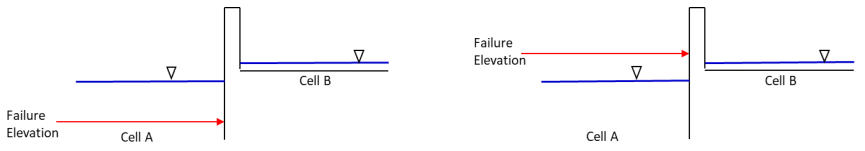

When a failure depth option is selected, the failure elevation is calculated from the failure depth variable. Once the wall failure is assigned to the Levee Lines (User Layer), the Levee Tool will set up the walls and failure for individual grid elements. Wall failure is complicated due to elevation differences across grid elements. The Levee Tool evaluates the ground elevation on each side of the levee and applies the Failure Depth to the highest grid element. The failure elevation is calculated by adding the failure depth to the highest elevation on either side of the grid element. This condition can be seen on the right-hand side of Figure 15.

Figure 15. Grid Element Elevation and Wall Failure.

Moving Window Optimization

Walls are typically used on large projects and the calculation process can result in too much data for a computer to process. To optimize the plugin, a moving window analysis is used. This window is a geometric bounding box that samples a small set of grid elements at a time. The window size is 100 x 100 grid elements. The levee lines are clipped to the window to eliminate duplicate calculations. Figure 16 shows an example of a grid system split into a bounding box. Each box in the figure is isolated and calculated individually.

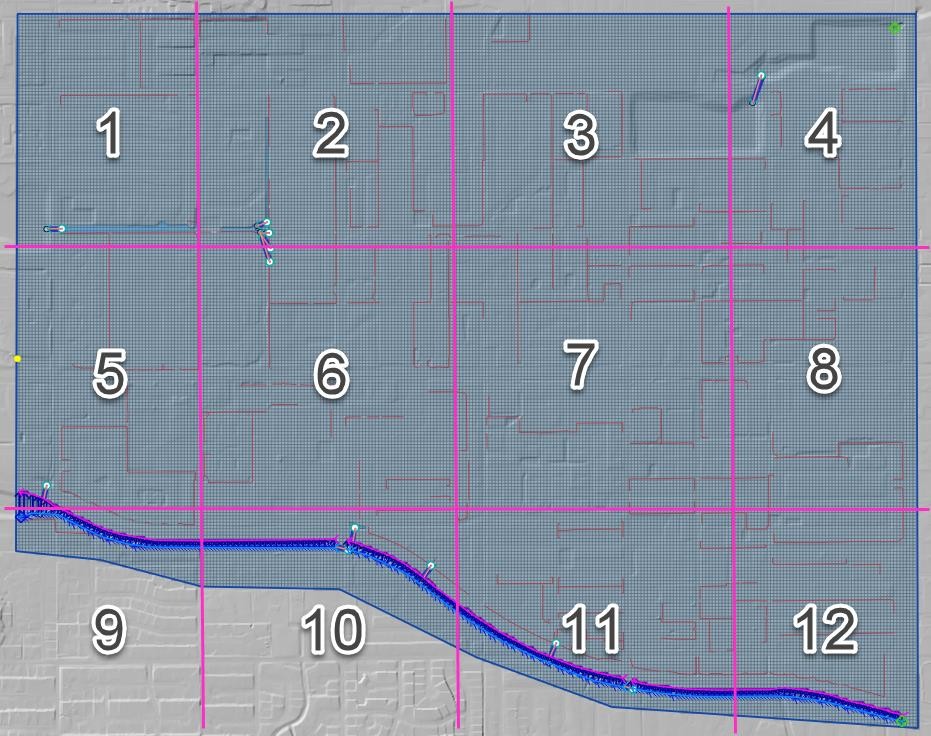

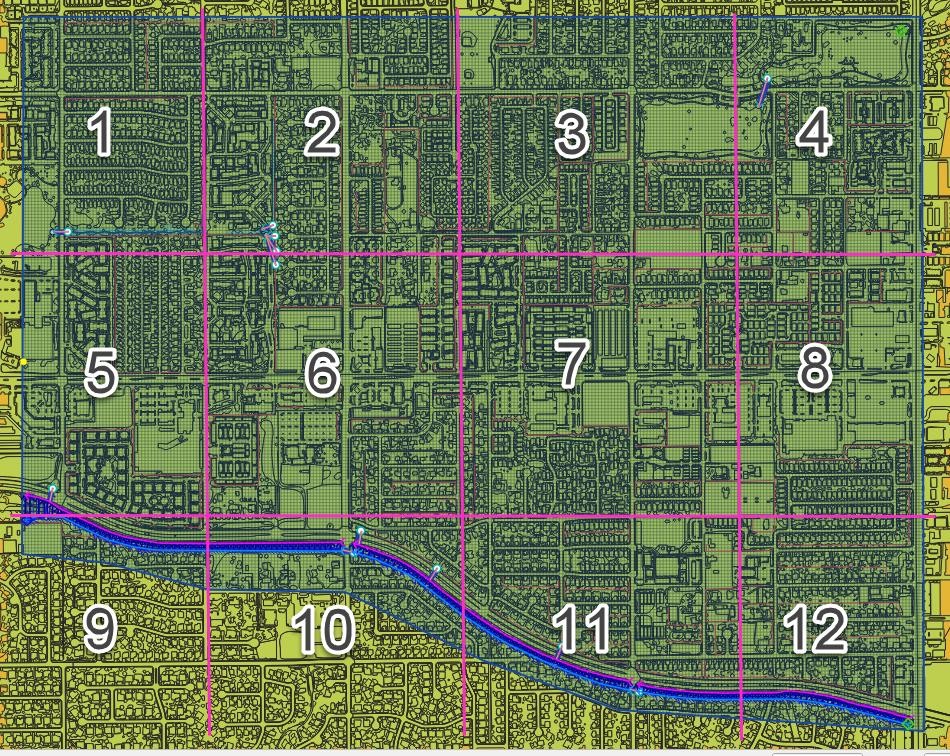

Figure 16. Levee and Wall Moving Window Example.

The final step is to identify and remove duplicates. The levee tables are sorted and scanned for additional duplicates which are removed. Redundant levees are also identified and removed. Duplicate levees are levees with the same cutoff listed twice. That means the same set of D lines for each L line. Redundant levees are levees with a neighboring cell that has a facing levee. They are not typically the same crest elevation. The plugin will identify redundant levees and delete the levee with the lower crest elevation.

Spatially Variable Data Processing

The plugin processes data for several spatially variable data sets. These include:

• Manning’s n-value

• Spatial Tol (LID)

• Spatial Limiting Froude

• Spatial Shallow n-value

• Gutters

To assign spatially variable data, the Plugin uses a combination of intersecting polygons to the grid and uses the centroid to point sample data to the grid. The spatial data is stored in the attributes table for each polygon. Figure 17 shows an example of a polygon with spatial TOL data. It needs to be assigned to any grid element that intersects the pink polygon. The processor will intersect the pink area to each grid element and extract the grid element number and the TOL variable into a specific layer. In some instances, the intersection is not necessary. A point sample that represents the center of each grid element is used to sample the polygon and extract the data of a known point based on the grid element ID.

Figure 17. Spatially Variable Data.

Area and Width Reduction Factor

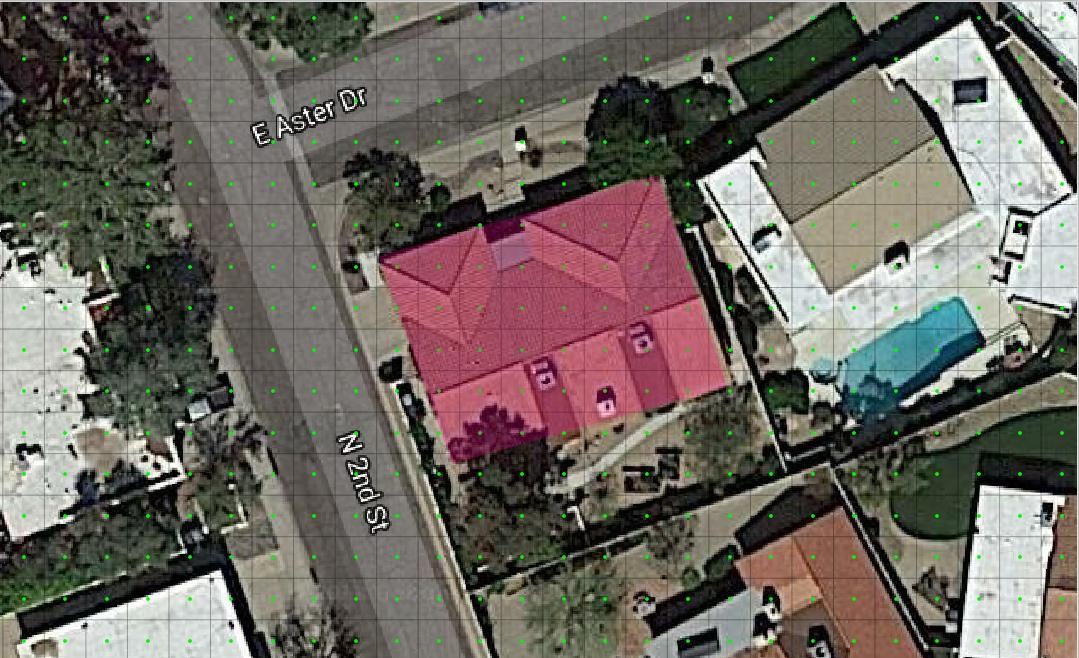

The calculator intersects the polygons in the Blocked Areas (buildings) layer to the polygons in the Grid layer and uses the centroid to set up the ARF/WRF table of variables. The ARF calculator intersects the Blocked Areas polygon with the grid polygon and calculates the area of the building that occupies each grid. If the grid is totally blocked, the ARF = 1. If the blockage is greater than 0.9, the ARF is reset to 1. If the area of the building is a percentage of the grid, then the value is assessed and written to the ARF attribute. Figure 18 shows an ARF that would have a value of 4.74 / 9.29 = 0.51.

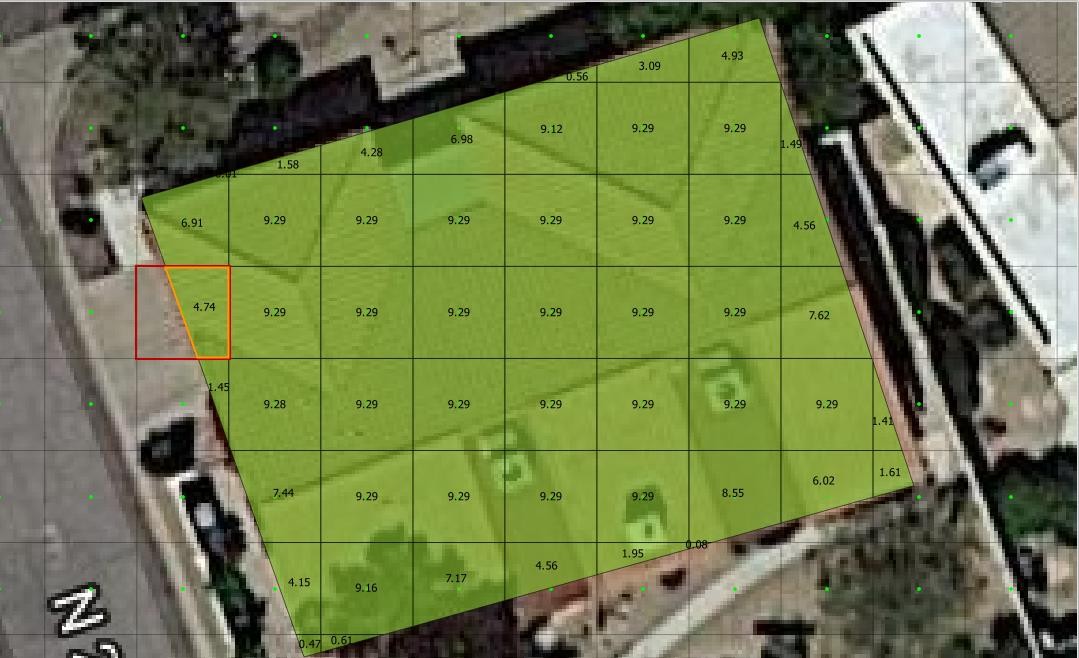

Figure 18. Area Reduction Intersection.

The WRF calculator intersects the Blocked Areas polygon to grid element. It is different in that it intersects the building to the octagonal side of the grid. The WRF calculator uses the grid centroid, half width and a Lambda function (Python, 2018) to define the grid octagon. The Lambda function defines the position of the octagon sides. The octagonal sides are intersected to the polygons in the Blocked Areas layer to calculate the width reduction factor (Figure 19).

Figure 19. Area and Width Reduction Factors.

The QGIS and GDS have slight differences in calculators.

1. The Plugin will reset ARF = 1 for any cell greater than 0.90 ARF. This can be seen in the following image. GDS left ARF = 0.94 and QGIS Right ARF = 1 (Figure 20).

Figure 20. ARF GDS / QGIS Comparison.

2. The GDS inserts redundant WRFs for cells that would otherwise be empty. This makes the GDS WRFs look more conservative, but it isn’t necessary. GDS on the left and QGIS on the right (Figure 21).

Figure 21. WRF Redundancy GDS / QGIS Comparison.

3. QGIS calculator is more accurate on cells that have partial WRFs. The GDS WRF on the left is calculated as 0.98. The QGIS WRF on the right is calculated at 0.44 and that is more accurate (Figure 22).

Figure 22. WRF Calculator GDS / QGIS Comparison.

Rainfall Interpolation Tool

The Rainfall Interpolation Tool uses rainfall depth rasters like those provided by NOAA Atlas 14. The original raster resolution is on the order of 2000 by 2000 ft pixels (Error! R eference source not found.).

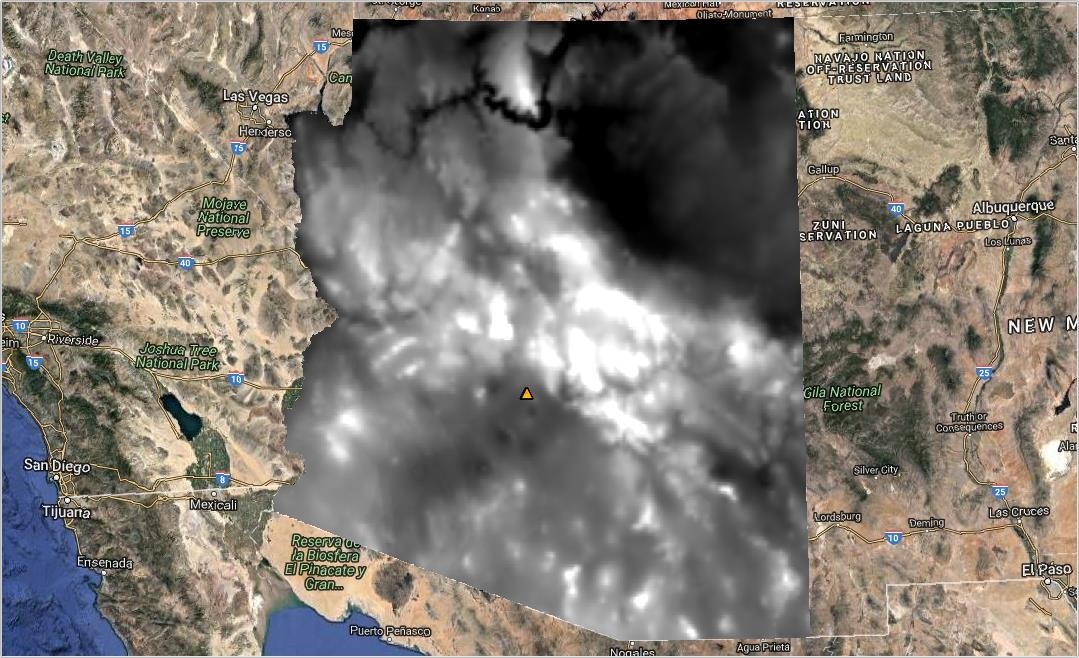

Figure 23. Rainfall 24hr 100yr NOAA Atlas 14.

The interpolation processor performs a GDAL Warp function to build a rastername_interp.tif. The new raster has these properties:

• Reprojected CRS = Project CRS.

• Pixel size = grid element size.

• Clipped to Grid layer extent.

• Aligned to the grid.

The new raster (figure 24) is sampled to the grid using the centroid. Raster statistics determine the maximum rainfall value (RAIN_max). The final RAIN_arf variable is calculated as a ratio of the local rain depth to the max rain depth. A rainfall reduction value is calculated for each element in the grid system using Eq.1.

(20)\[𝑅𝐴𝐼𝑁_{arf} = \frac{𝑅𝐴𝐼𝑁_{grid}}{𝑅𝐴𝐼𝑁_{max}}\]

where:

RAIN_arf = A spatially reduced rainfall value

RAIN_grid = The rainfall sampled from the centroid of the grid element.

RAIN_max = The maximum rainfall for the raster in the project area.

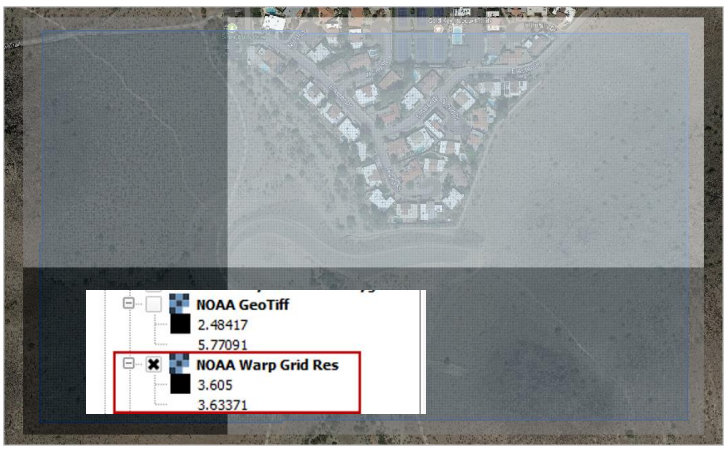

Figure 24. Warped Rainfall Raster.

Real-time Rainfall Sampling Tool (NEXRAD Data)

Interpolated rainfall data from NEXRAD is an estimation of a rainfall event over a particular region using data from the NEXRAD radar network. NEXRAD (Next-Generation Radar) is a network of over 150 high-resolution Doppler weather radars operated by the National Oceanic and Atmospheric Administration (NOAA) in the United States.

The spatial and temporal resolution of the radar rainfall data is limited by the network coverage, and there are gaps and inconsistencies in the precipitation data. The NEXRAD data is post processed or interpolated to rain gage data. The interpolation algorithms analyze the relationship between the radar observations and the topography of the region to estimate rainfall. The interpolated rainfall data from NEXRAD can be used by FLO-2D to simulate real storm events.

The Real-Time Rain Interpolation Tool requires ascii grid files *.asc files and a catalog file *.rtc with the rainfall heading data and list of grid files to import. There is one file for every 5 to 15 minutes of rainfall. Figure 25 shows the layout of a *.asc file and a group of files.

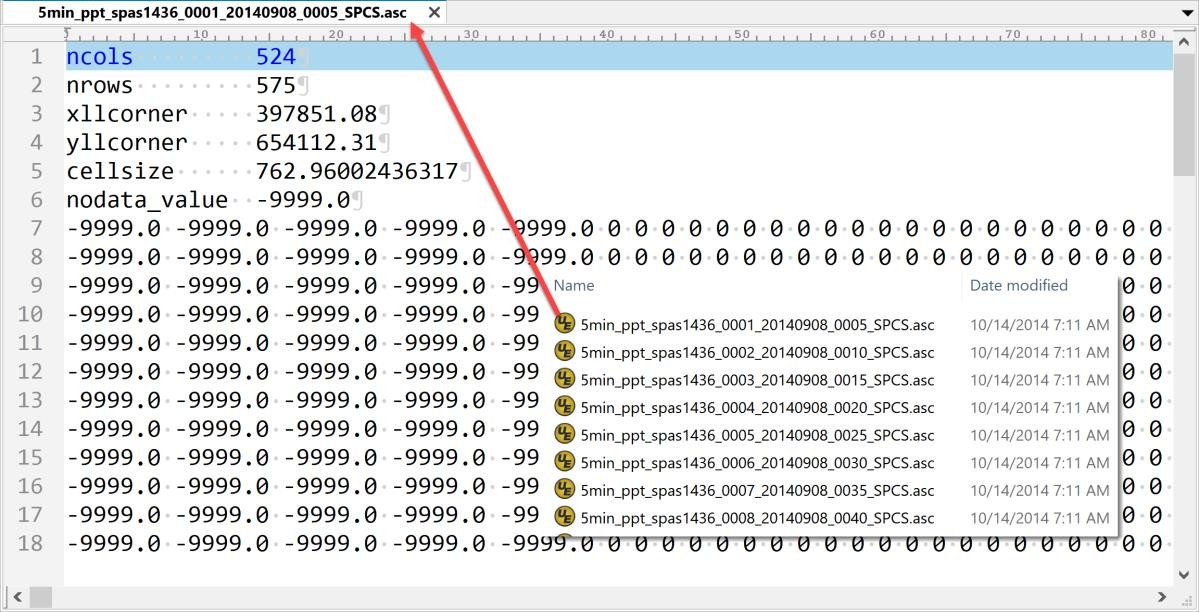

Figure 25. NEXRAD Rainfall *.ASC File Example.

The *.asc files are read as rasters in alphabetical order. Each raster file is warped to the grid and sampled at the centroid as described in the previous section. The grid assignment is a point sample. The data is not interpolated. The plugin will export a

RAINCELL.DAT file or a binary RAINCELL.HDF5 file. These files contain the entire rainfall event. Figure 26 shows an example of the rainfall data file.

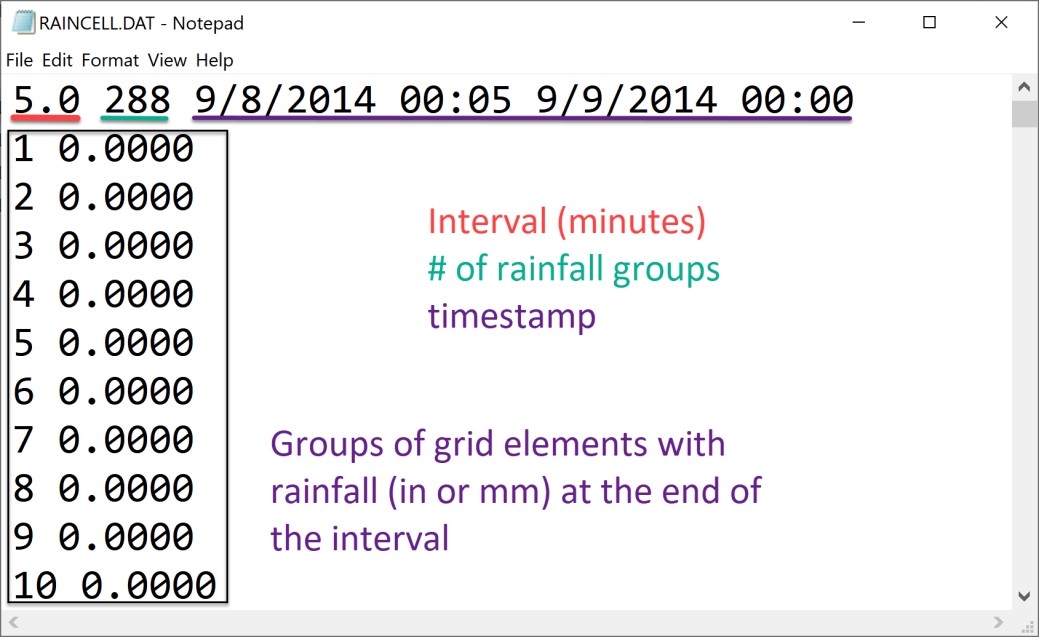

Figure 26. RAINCELL.DAT.

Infiltration Development Tools

The Infiltration Editor is used to assign infiltration data globally or spatially from polygon layers. The Infiltration calculators can use embedded layers for infiltration or imported layers. The infiltration calculators intersect the infiltration polygons to each cell to calculate area weighted infiltration parameters. The infiltration calculator is optimized to run on large projects with millions of cells. The optimization process isolates blocks of polygon data and runs them individually as defined by small bounding boxes that break up the data for processing. Individual calculations are addressed below for each infiltration type.

Green and Ampt

There are various methods for assigning spatially variable Green and Ampt data. The Schematize method assigns data directly to the grid from polygons digitized to the Infiltration Areas layer. The calculator calculates data from external soils and landuse layers.

Schematize Method

The Schematize Method samples the Infiltration Areas polygons from the grid centroid and assigns the infiltration values that are written in the Green Ampt fields. These fields are the fields that are written to the INFIL.DAT file:

• green_char – green ampt character

• hydc – hydraulic conductivity

• soils – soil suction

• dtheta – soil moisture deficit

• abstrinf – initial abstraction

• rtimpf – impervious percentage

• soildepth – soil depth

The attribute data is written to the infil_cells_green table. The widget uses the poly2grid processor. This processor uses an intersection where the grid element centroid is located within a polygon in the Infiltration Areas layer. The Green-Ampt attributes for the grid elements are copied to the infil_cells_green table. Any grid element that does not contain a polygon is not written to the table. That infiltration data will default to the Global Infiltration parameters.

Green and Ampt (FCDMC Method 2023)

The Calculate Green and Ampt Method intersects the landuse and soils polygons to the grid polygons and calculates a spatially variable infiltration from the external layers. Figure 27 shows the Compute Green-Ampt dialog for the FCDMC Method 2023.

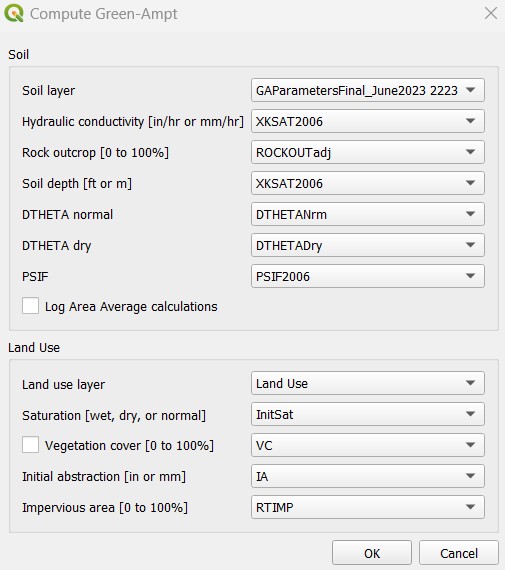

Figure 27. Compute Green-Ampt dialog (FCDMC Method 2023)

This method follows the guidelines in the FCDMC Hydrology Manual from 2023 (FCDMC, 2023). The difference between this method and the 2018 method is the Log Average of PSIF. The general calculations are as follows:

XKSAT

XKXAT is the hydraulic conductivity in in/hr or mm/hr of the soil layer. Figure 28 shows the hydraulic conductivity of the soil layer.

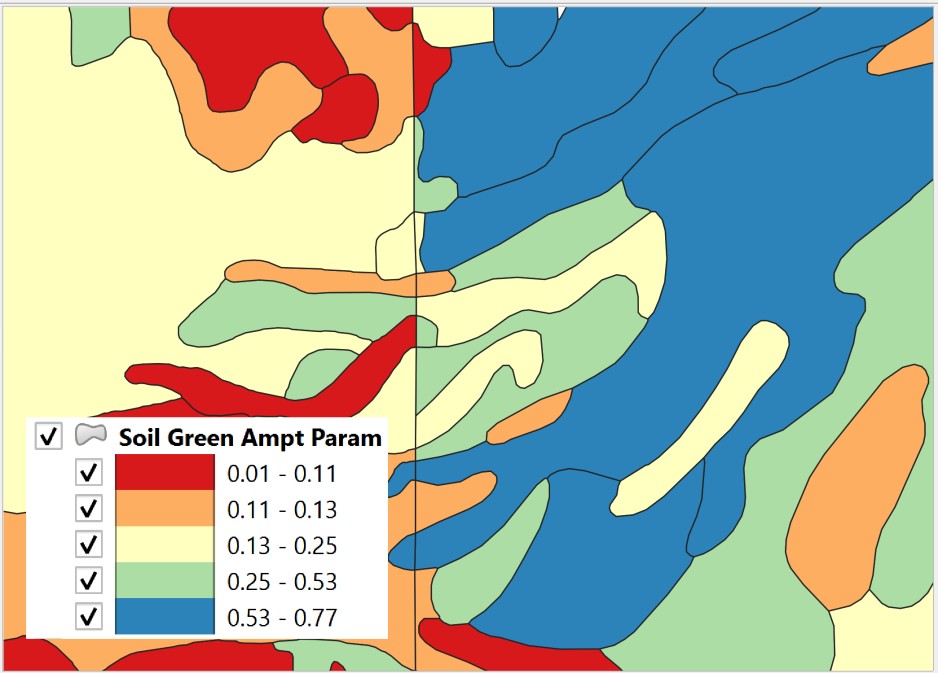

Figure 28. Soil layer with XKSAT.

The area weighted log average is calculated for each grid element from the soil layer (Eq.2).

(21)\[{\overline{XKSAT}}_{grid} = 10\ \hat{}\ \left( \frac{\Sigma A_{i}*log({XKSAT}_{i})}{A_{ge}} \right)\]

where:

XKSAT_i is obtained from the soil attribute table.

A_i is the subarea intercepted by the grid element from the 3^rd column of the landuse table and AGE is the grid element area.

PSIF

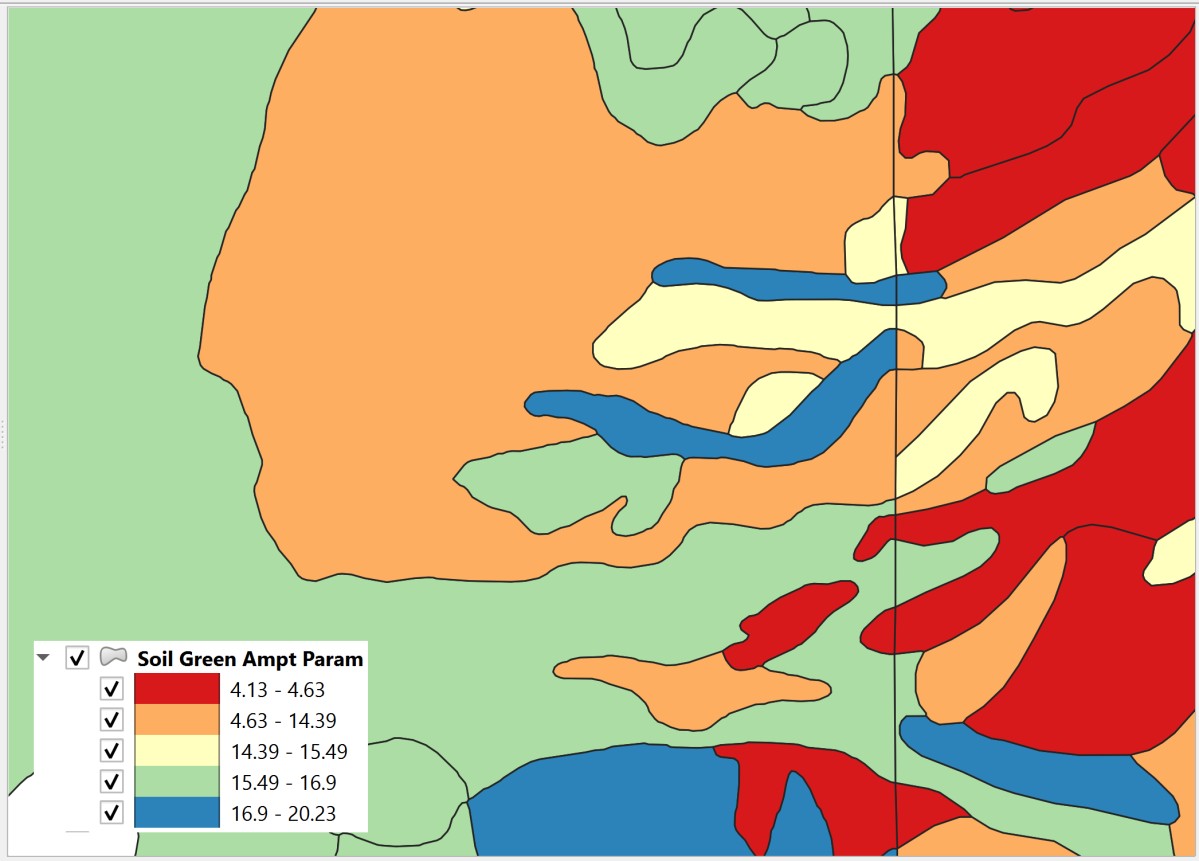

PSIF is the wetting front capillary suction in or mm of the soil layer (Figure 29).

Figure 29. Soil Layer with PSIF.

The area weighted log average is calculated for each grid element from the soil layer (Eq.3). The soil polygon is intersected with the grid polygon to provide the A_i.

(22)\[{\overline{PSIF}}_{grid} = 10\ \hat{}\ \left ( \frac{\Sigma A_{i}*log({PSIF}_{i})}{A_{ge}} \right)\]

where:

PSIF_i is obtained from the soil attribute table.

A_i is subarea intercepted by the grid element from the 3^rd column of the landuse table and AGE the grid element area.

DTHETA

DTHETA is the soil moisture deficit. It ranges in value from zero to the effective porosity of the soil (Figure 30).

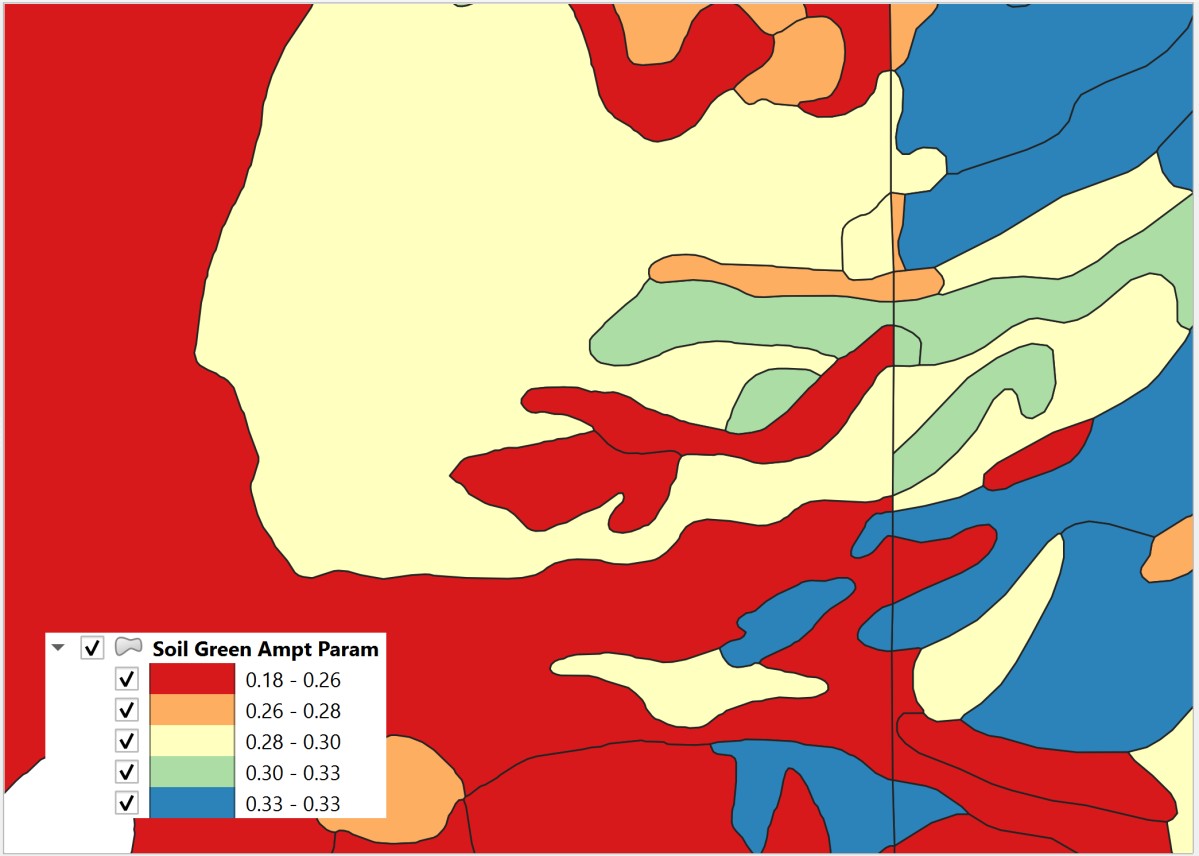

Figure 30. Soil Layer with DTHETA.

DTHETA represents the soil moisture capacity for the start of a rainfall event. The initial soil conditions vary with respect to landuse categories like irrigation or ponded water conditions. Initial saturation is part of the landuse data (see Figure 31).

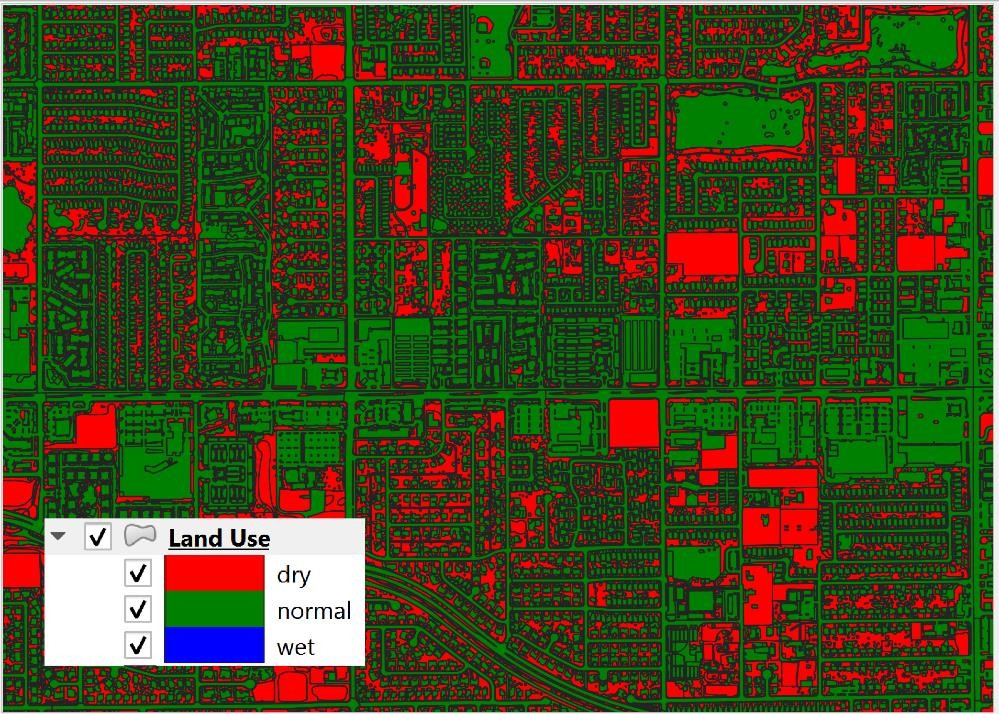

Figure 31. Landuse with Initial Saturation Condition.

As a result, DTHETA is split into individual parts that represent the DTHETA (wet, dry or normal). DTHETA_wet is zero, DTHETA_dry and DTHETA_normal are calculated for the soil layers for individual soil groups (Figure 32).

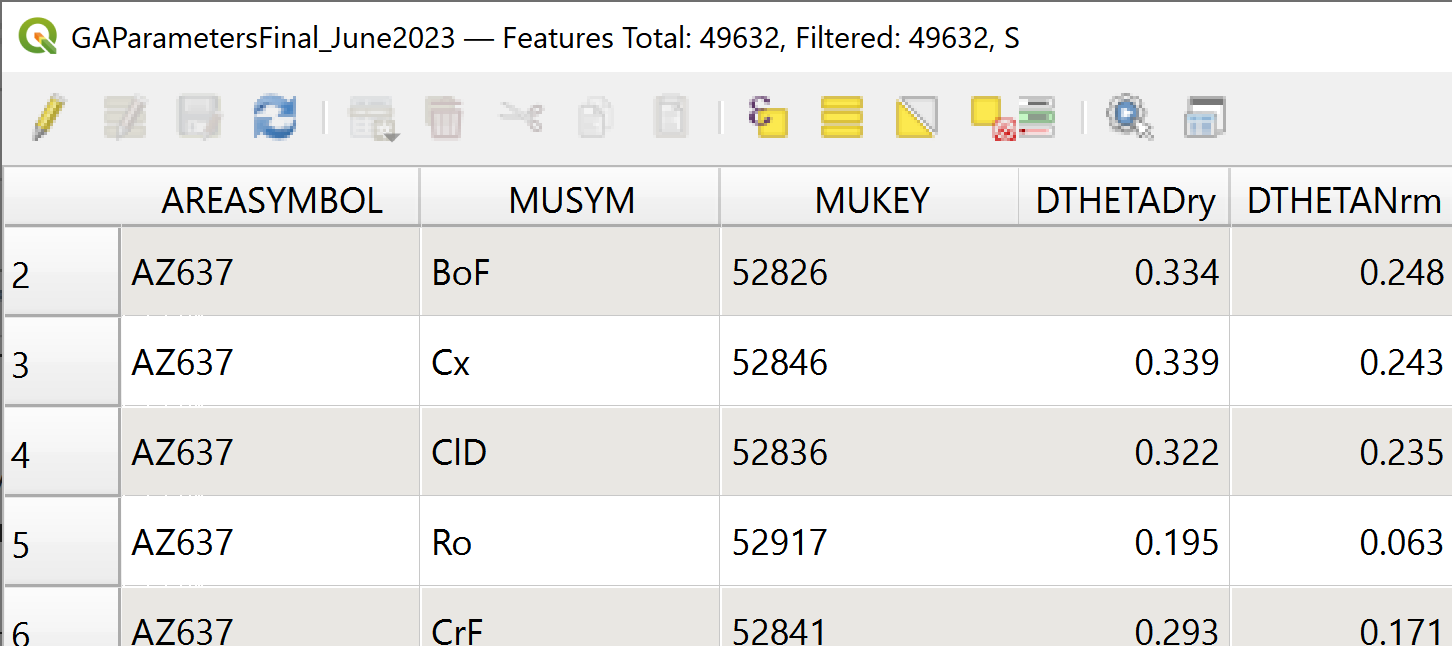

Figure 32. DTHETA Dry and Normal.

After the soil layer is intersected with the landuse, DTHETA_parts attributes are filled.

DTHETA_wet, DTHETA_normal, and DTHETA_dry attributes are filled for individual parts. Once DTHETA_parts is complete, DTHETA_grid is calculated using a weighted average for each grid element (Eq.4).

(23)\[{\overline{DTHETA}}_{\mathbf{grid}} = \left( \frac{\Sigma A_{i}*{DTHETA}_{i}}{A_{ge}} \right)\]

where:

DTHETA_i is taken from the intersected landsoil DTHETA_parts.

A_i is the subarea intercepted by the grid element from the 3^rd column of the landuse table and AGE is the grid element area.

If a grid element is within by a “wet” or “saturated” polygon, the DTHETA for that grid = 0.

RTIMP

RTIMP is the percent impervious of the landuse (paved surfaces, buildings) and the soil (rockout). Figure 33 shows the rock out percentages for the landuse layer.

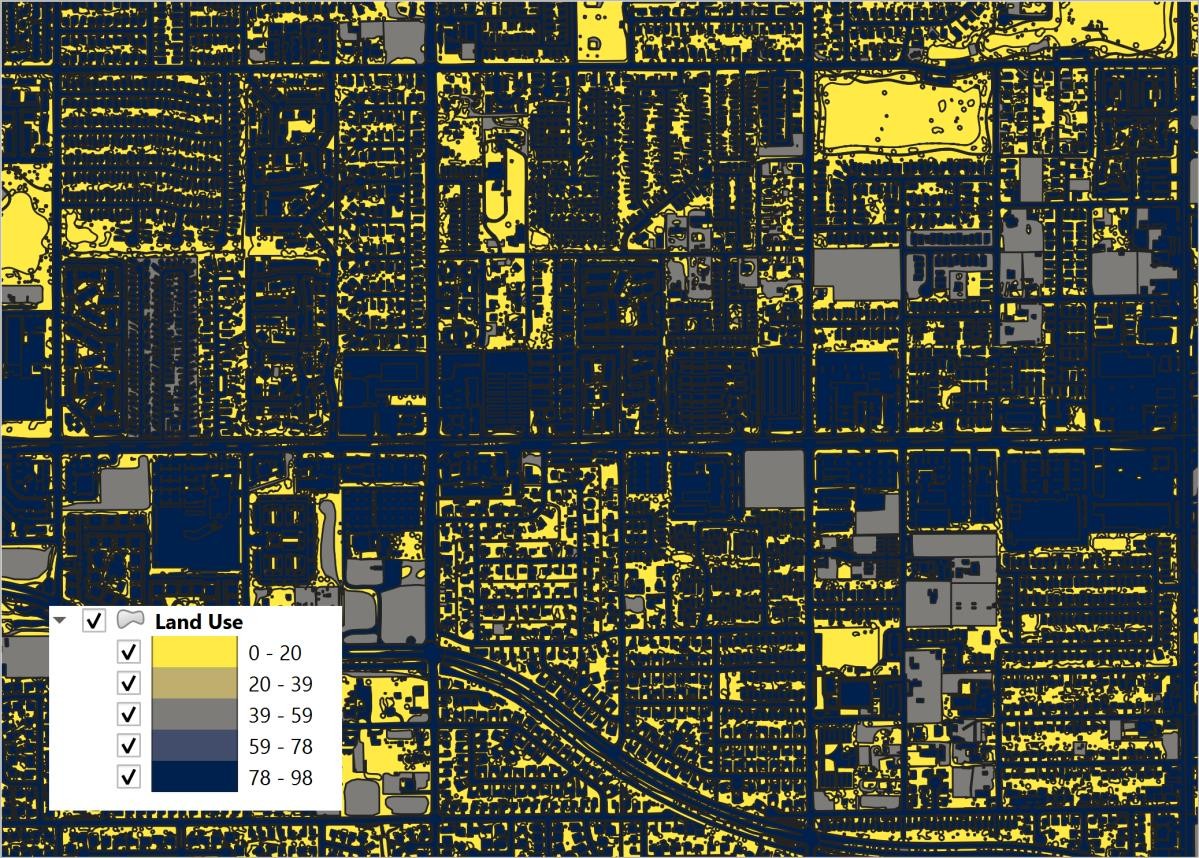

Figure 33. Landuse with Rockout Percentages.

Intersecting the landuse with the soil combines the data into a single layer (land_soil) of polygon features with attributes of RTIMP_land and RTIMP_natural. The RTIMP_max is given by Eq.5.

(24)\[{RTI MP}_{\max} = \max({RTIMP}_{land,\ }{RTIMP}_{natural})\]

where:

RTIMP_max is the maximum impervious value of the intersection between the landuse data and the soil data.

RTIMP_land is percent impervious related to buildings, paved surfaces.

RTIMP_natural is percent impervious of the rock outcrop.

RTIMP_grid is the intersection of the land_soil and the grid. This is an area weighted average impervious decimal calculation (Eq.6) for each grid element.

(25)\[{RTIMP}_{grid} = \ \frac{\left( \frac{\Sigma{RTIMP}_{\max}*(A_{i})}{A_{ge}} \right)}{100}\]

where:

RTIMP_grid is the final decimal percent impervious for each grid element. RTIMP_max is the maximum impervious polygon intersected from the land_soil intersection.

Ai is the subarea intersected by the grid element and the RTIMP_max polygon.

A_ge is the area of the grid element.

RTIMP_final is an intersection of the EFF Areas layer and the Grid. Any centroid within an EFF polygon is applied to an EFF or effectiveness of the impervious field (Eq.7).

(26)\[{RTIMP }_{final} = \ \left( {RTIMP}_{grid}*(EFF*.01) \right)\]

where:

RTIMP_final is the effective imperviousness of the grid element.

RTIMP_grid is the intersected imperviousness of the grid element. The geometric predicate is centroid within.

The Green-Ampt parameters are printed to the spatially variable lines of the INFIL.DAT file (Figure 34). The INFIL.DAT structure is outlined in the Data Input Manual at the INFIL.DAT tab. More information on how FLO-2D uses the Green-Ampt method to calculate rainfall runoff is available in the FLO-2D Pro Reference Manual.

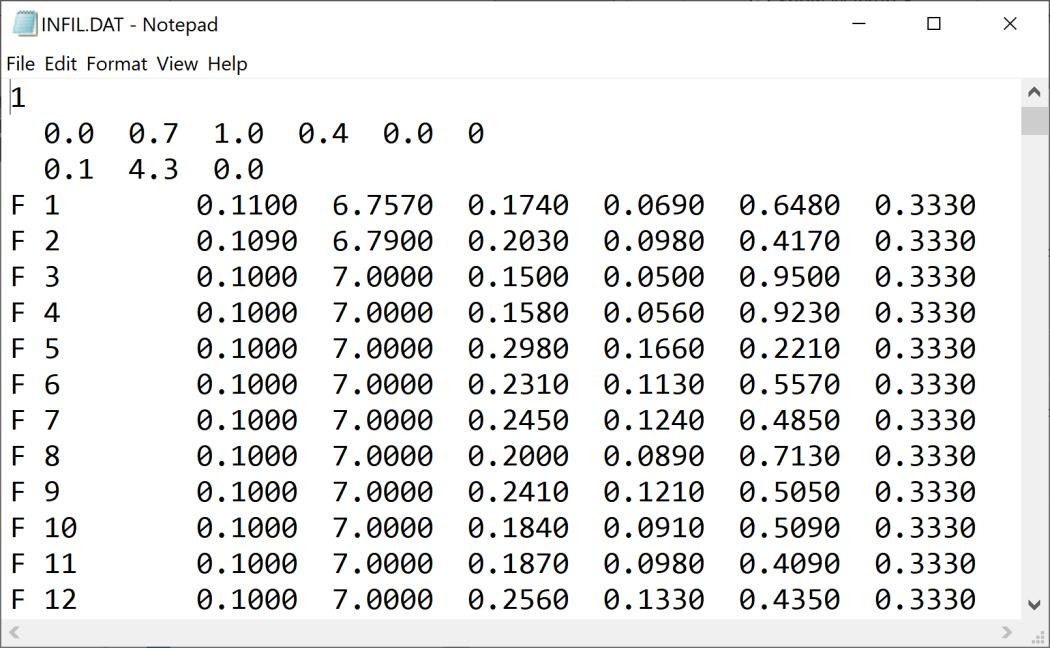

Figure 34. Example INFIL.DAT file.

VC

VC is the vegetative cover related to the topsoil horizon. Figure 35 shows the vegetative cover of the landuse layer.

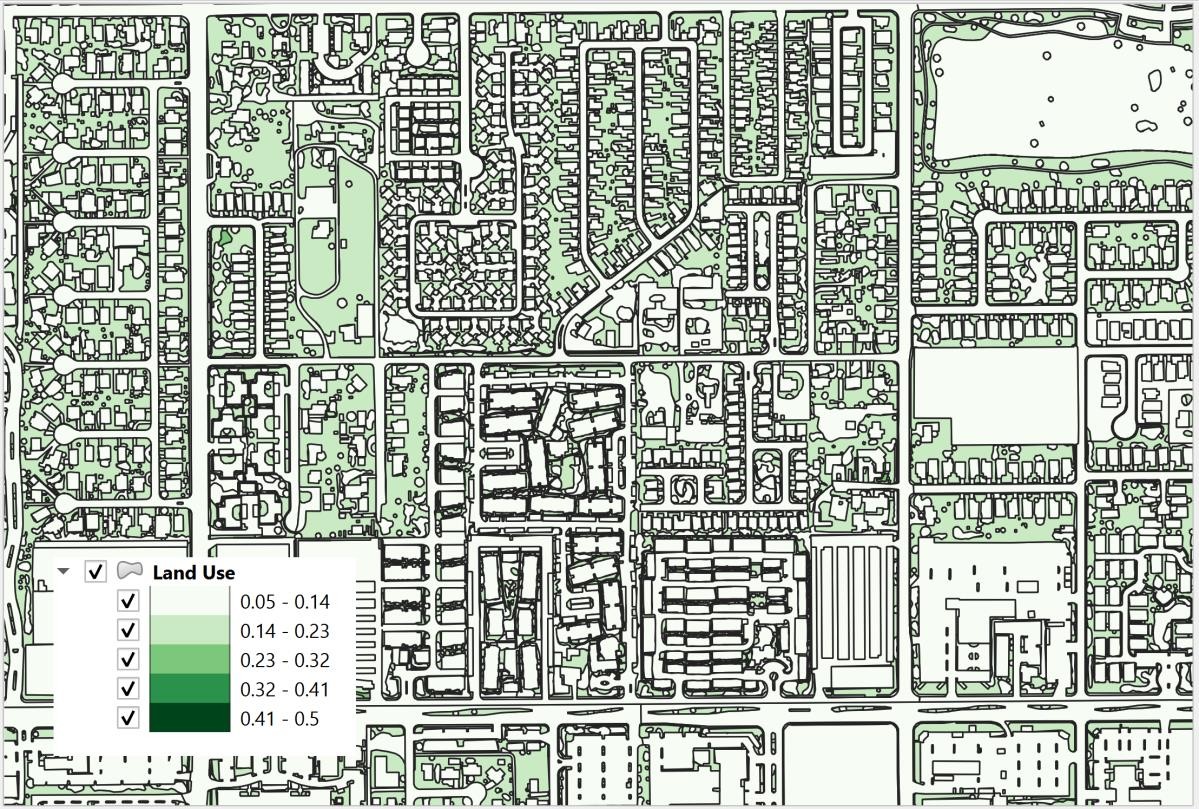

Figure 35. Landuse with Vegetative Cover.

It is used to adjust XKSAT (Eq.2) as a function of the vegetation cover VC (Eq.8) from the landuse table when XSAT < 0.4 in/hr. This requires a computation of the ratio of the hydraulic conductivity for the vegetative cover to the bare ground hydraulic conductivity (Eq.9):

(27)\[C_{K} = \left( \frac{{VC}_{K} - 10)}{90} \right) + 1\]

(28)\[XKSATC = XKSAT\ \sum_{k}^{}{P_{k}C_{k}}\]

where:

P_k is the percentage of the area within the grid element corresponding to C_k and XKSATC for each grid element is written in the INFIL.DAT file.

IA

IA is the initial abstraction for each grid element. Figure 36 shows the initial abstraction for the landuse layer.

Figure 36. Landuse with Initial Abstraction.

The intersection between the landuse and grid element gives an area weighted average for the initial abstraction (Eq.10):

(29)\[IABSTR\ = \left( \frac{\sum_{}^{}{A_{i}({IA}_{i})}}{A_{GE}} \right)\]

where:

IA_i is the initial abstraction in the subarea Ai intercepted by the element and is based on the 3^rd column of the landuse table. The intercepted subareas are computed using the landuse shape file and IABSTR is added to the INFIL.DAT file for each element.

Green and Ampt (FCDMC Method 2018)

The 2018 method for Green-Ampt uses a different calculator for PSIF and DTHETA. Figure 37 shows the Compute Green-Ampt dialog for the FCDMC Method 2018.

Figure 37. Green-Ampt dialog (FCDMC Method 2018)

For each grid element, compute wetting front capillary suction PSIF according to the following regressions as a function of XKSAT (Generated from Figure 4.3 of the Maricopa County Drainage Design Manual, 2018).

XKSAT (in/hr)	PSIF (in)
0.01 ≤ XKSAT ≤ 1.2	PSIF = EXP(0.9813 - 0.439*Ln(XKSAT) + 0.0051(Ln(XKSAT))^2 + 0.0060(Ln(XKSAT))^3)

For each grid element, compute volumetric soil moisture deficiency (DTHETA) according to the following table. The specific table used for DTHETA depends on the saturation field of the soil table (6th column).

Saturation = DRY

XKSAT (in/hr)	DTHETA DRY
0.01 ≤ XKSAT ≤ 0.15	DTHETA =EXP(-0.2394 + 0.3616 Ln(XKSAT))
0.15 ≤ XKSAT ≤ 0.25	DTHETA =EXP(-1.4122 - 0.2614 Ln(XKSAT))
0.25 ≤ XKSAT ≤ 1.2	DTHETA = 0.35

Saturation = NORMAL

XKSAT (in/hr)	DTHETA NORMAL
0.01 ≤ XKSAT ≤ 0.02	DTHETA = EXP(1.6094 + Ln(XKSAT)
0.02 ≤ XKSAT ≤ 0.25	DTHETA = EXP(-0.0142 + 0.5850 Ln(XKSAT))
0.02 ≤ XKSAT ≤ 0.04	DTHETA = 0.15
0.04 ≤ XKSAT ≤ 0.15	DTHETA = EXP(1.0038 + 1.2599 Ln(XKSAT))
0.15 ≤ XKSAT ≤ 0.4	DTHETA = 0.25
0.4 ≤ XKSAT ≤ 1.2	DTHETA = EXP(-1.2342 + 0.1660 Ln(XKSAT))

Saturation = WET or SATURATED

DTHETA = 0 for all XKSAT

Moving Window Optimization

The moving window code is used to speed up the Green-Ampt infiltration calculator. This window is a geometric bounding box that samples a small set of grid elements at a time. The window size is 100 x 100 grid elements. The polygons are clipped to the window to eliminate duplicate calculations.

SCS Curve

There are two methods for assigning spatially variable SCS data. The Schematize method assigns data directly to the grid from polygons digitized to the Infiltration Areas layer. This is the most effective method.

The Calculator assigns the SCS curve number from a single external polygon. It can also calculate the Pima County method from a combined layer with soil, coverage density and impervious areas. Each method intersects the infiltration polygons to the grid and assigns an area weighted average to each grid element. The calculator method requires polygon layers with no geometric deficiencies and therefore is not as desirable as the Schematize method.

Horton

The Schematize Method assigns data directly to the grid from polygons digitized to the Infiltration Areas layer. The required data fields are:

• fhorti – Initial infiltration rate

• fhortf – Final infiltration rate

• deca – Decay coefficient

The schematize method intersects the Horton polygons to the grid and assigns the variables using an area weighted average.

Channel Development Tools

The channel development tools use several methods and calculators for channel development. A channel is composed of three polyline layers for the banks and cross sections and a point layer for confluences. The channel layers are defined by intersecting the left banks to the grid at the nearest centroid to the left bank.

Left Bank Layers

The Left Bank User Layer defines the geographical position of the left bank. The Plugin uses this polyline layer to intersect and connect the left bank grid elements. The position of the left bank elements is dependent on the position of the polyline vertices. It is important to note that if left bank schematization does not have accurate bank coverage, more vertices may be required along the length of the polyline.

The Left Bank Schematic Layer is a polyline layer that represents the real position of the FLO-2D channel with a single vertex representing each channel element in a segment. Multiple polyline features are used to represent separate channel segments. Figure 38 shows a sample of the two separate layers.

Figure 38. Left Bank Layers.

Cross Section Layers

The Channel Cross Section User Layer is used to define the channel geometry and the position of the right bank (Figure 39). The data requirement is station elevation data from the left top of bank to the right top of bank. The station elevation data is obtained from several sources including survey data or profile data from rasters or points. The data can also be defined for trapezoidal or rectangular channels. The last data source is a variable area equation such as: A = a*d^b. Where the area is defined by a coefficient, depth, and exponent.

Figure 39. Cross Section User Layer.

Right Banks

The Standard schematization button will produce a right bank according to the position of the cross sections. It works somewhat similar to the left bank but will allow for more than one cross section to be assigned to a right bank.

Bank Elevation

The plugin uses two methods to define bank elevation. The first is to assign the bank elevation in the cross section data. This is the only method for N (Natural) channels as the bank elevation is assigned in the Station Elevation table. Assigning bank elevation is the preferred method for T (trapezoidal), R (rectangular), and V (variable area) channels. With this method, the left and right bank data is assigned to Left Bank Elevation and Right Bank Elevation fields in the Cross Section User Layer attributes.

The second bank elevation method is to leave the Left Bank Elevation and Right Bank Elevation variables NULL. This method only works with the T, R, and V channel types. The NULL variable assignment results in No Data being assigned to the Schematized Left Bank Layer. When no data is assigned, the Left Bank Elevation and Right Bank Elevation is not written to CHAN.DAT. The model uses the grid element elevation in lieu of the missing data.

Interpolation

The Plugin uses the same interpolator that the PROFILES program uses. It is an external App that is installed into the FLO-2D Pro subdirectory along with the FLO-2D software. The Plugin exports the CHAN.DAT, CHANBANK.DAT, and XSEC.DAT and executes the interpolation program. The data is reloaded into the Plugin Schematic Layers with the interpolation dialog box.

Import HEC-RAS

The Import HEC-RAS tool is used to import channel data from HEC-RAS geometry files. The RAS project must be georeferenced and in the same coordinate system as the GeoPackage. This system can import channel geometry, full cross sections, bank to bank cross sections, interpolated cross sections and levees.

Figure 40. HEC-RAS Import.

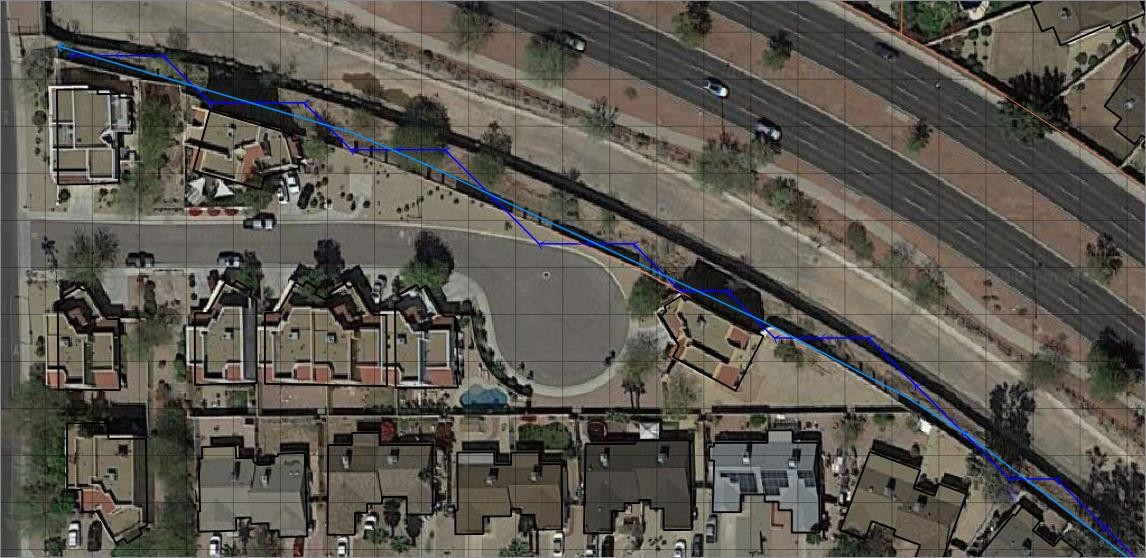

Upon import, the HEC-RAS channels are saved to the User Layers (Figure 40). The data is saved to the left bank and cross section layers. It is important to note that the data imported to QGIS is read from the *.g0 file in linear order. The channels are imported as segment 1 being the first data set and segment 2 is next in order of the geometry file. If the channel data is in the wrong order, it should be corrected before being imported.

Cross sections are saved to the Cross Section layer in the order by which they were written to the geometry file. The cross section names are extracted from the river mile field (Figure 41).

Figure 41. Channel Cross Sections.

Storm Drain Development Tools

The FLO-2D surface water model has a dynamic exchange with the storm drain system. FLO-2D calculates the surface water depth at grid cells. Those cells that contain the storm drain inlets use the surface water depth and the inlet geometry, to compute the discharge inflow to the storm drain system. The storm drain engine then routes the flow in the pipe network and calculates potential return flow to the surface water system (Figure 42).

The Storm Drain Editor application and setup are well documented in the FLO-2D Plugin User Manual

A detailed tutorial is available Storm Drain Tutorial

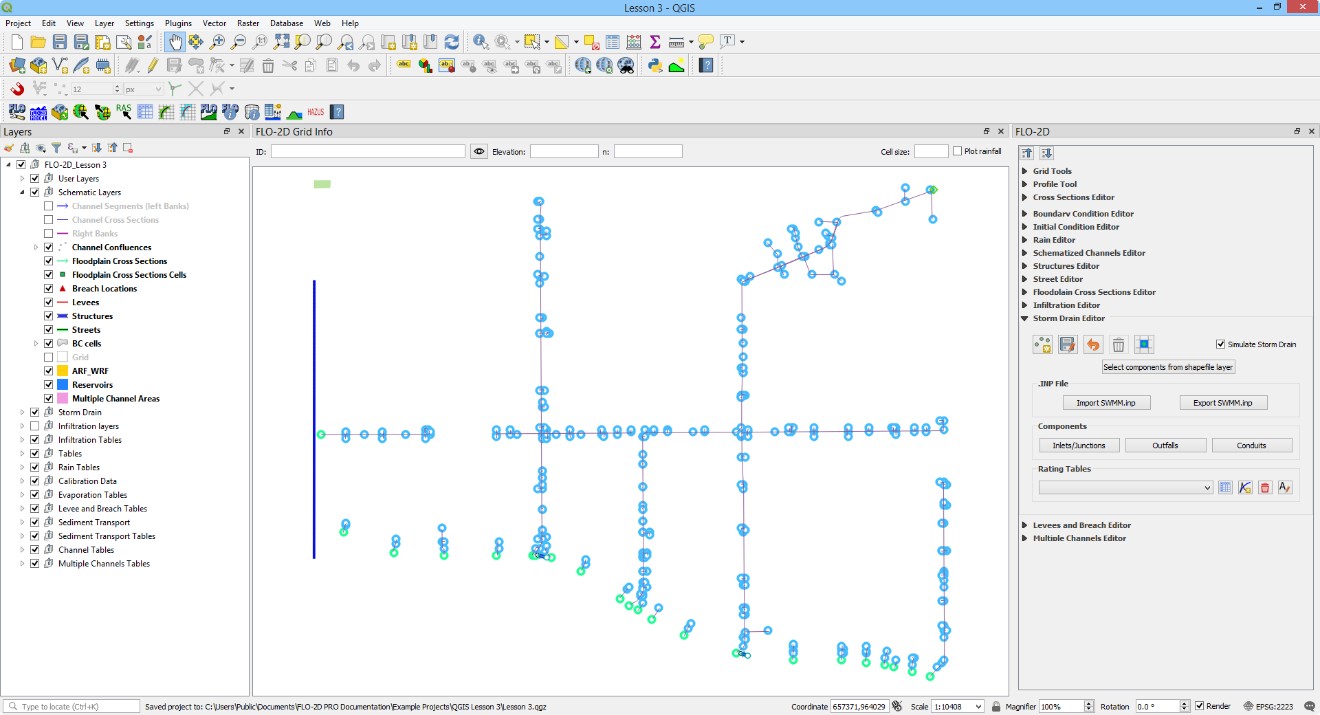

Figure 42. Storm Drain Layout in QGIS.

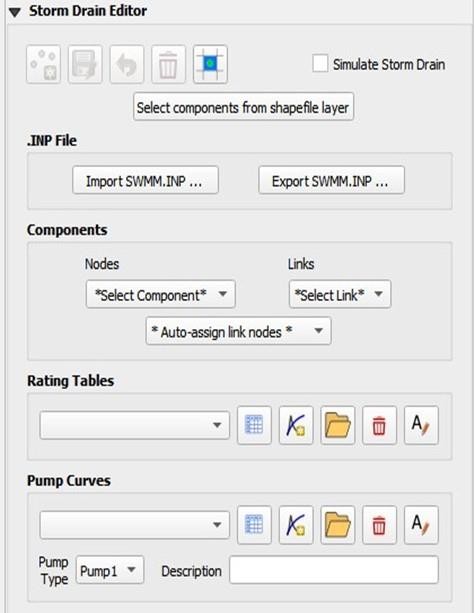

The Storm Drain data files (SWMM.INP and *.DAT files) can be developed from scratch in the FLO-2D Plugin Storm Drain Editor by assigning the data from shapefiles to the storm drain features. Figure 43 shows the Storm Drain dialog box.

Figure 43. Storm Drain Dialog Box.

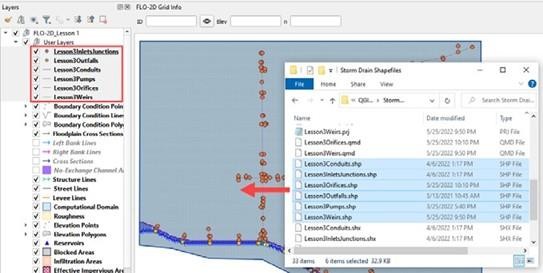

QGIS can be used to create the storm drain shapefiles for Inlets/Junctions, Outfalls and Conduits. These shapefiles contain all the required data to fill the Storm Drain data files (see FLO-2D Plugin User’s Manual and FLO-2D Storm Drain Manual for more information about the required data for each component). If the storm drain shapefiles exist, they can be imported into the QGIS project. If the storm drain shapefiles do not exist, they can be digitized into Storm Drain User Layers (Figure 44).

Figure 44. Storm Drain Shapefiles.

Storm Drain Components

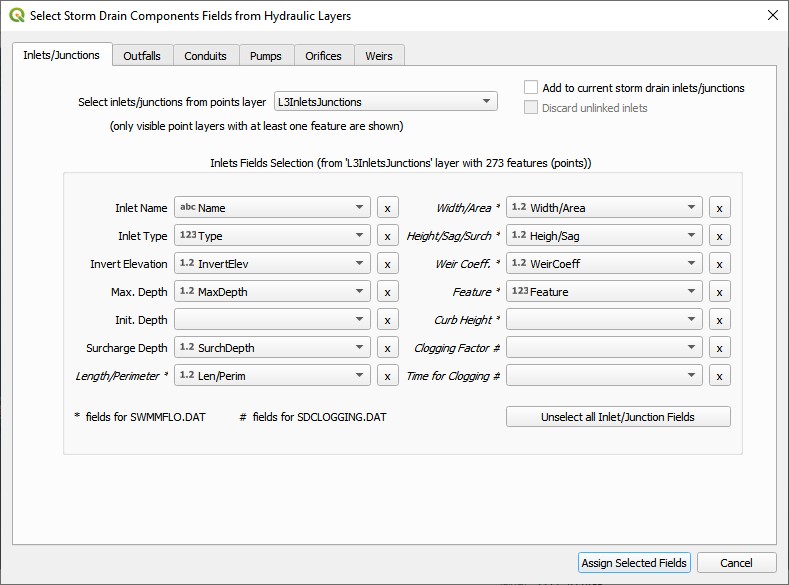

The Storm Drain Configuration Tool (Figure 45), is the main processing tool for storm drain development. The algorithms copy features and attributes from shapefiles into the storm drain tables and layers. This organizes the data in a manner that is ideal for the swmm.inp, SWMMFLO.DAT, and SWMMOUTF.DAT data files.

Figure 45. Select Components from Shapefile Layer: Inlet/Junctions.

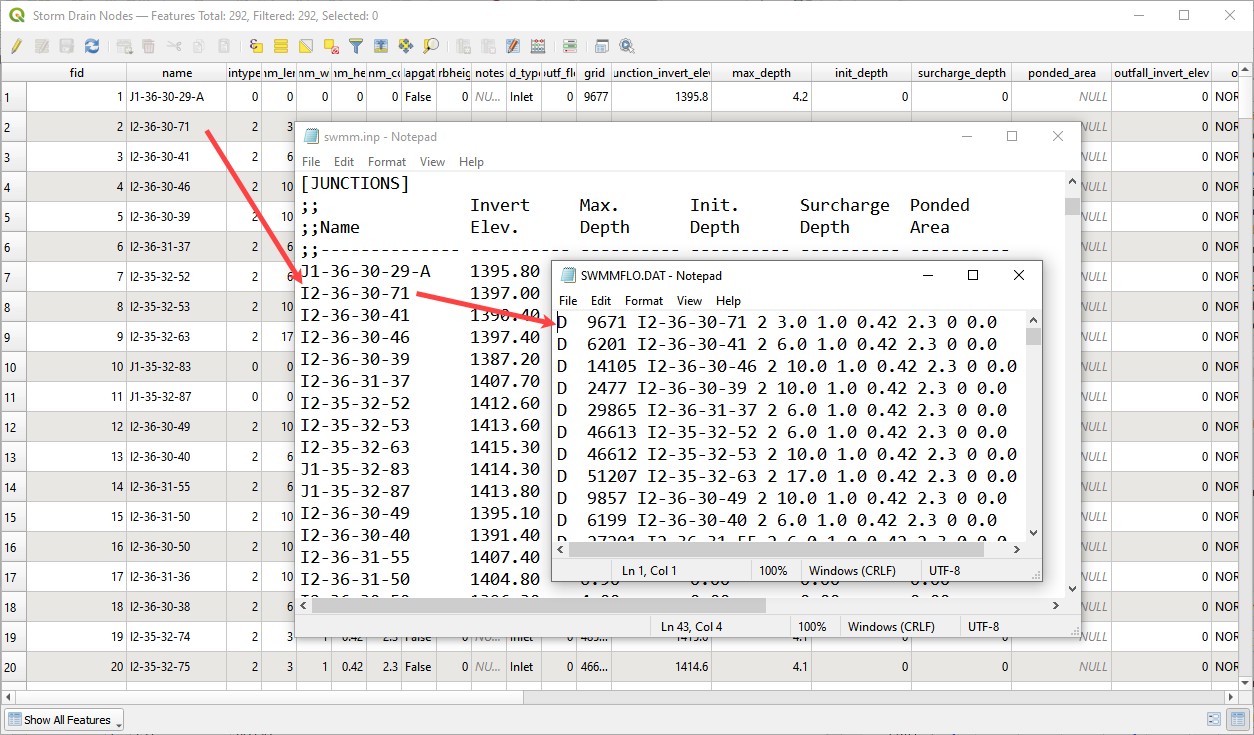

The data layout and organization prevent array allocation errors between FLO-2D engine and the storm drain engine. The features are written in the correct order from between swmm.inp and SWMMFLO.DAT.

Figure 46. Data Organization Inlets.

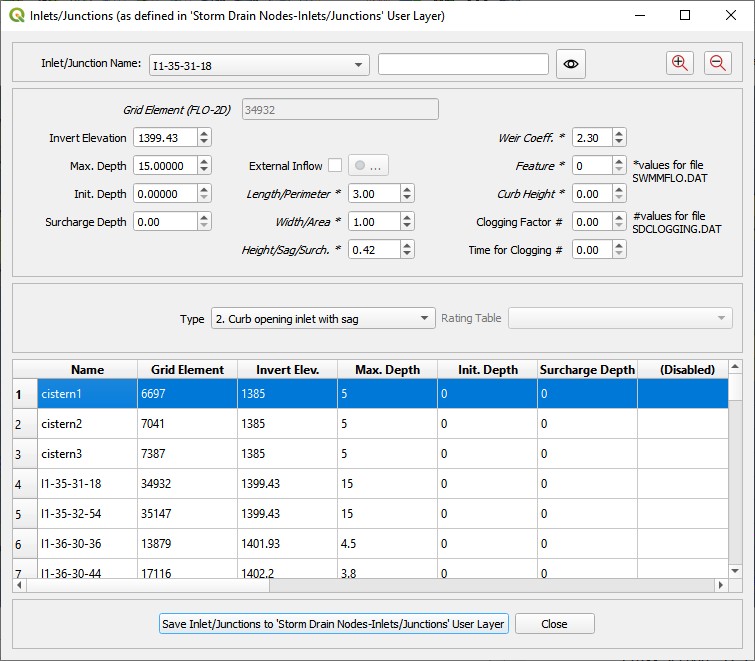

The finished tables can be validated and edited with the node and link dialog boxes (Figure 47). These boxes highlight and pan/zoom to the current feature and allow extra data to be assigned. Changes to these dialog boxes automatically update the storm drain arrays.

Figure 47. Review Attributes from Storm Drain Table.

Digitizing Storm Drain Features

Storm Drain features can be created in QGIS for the development of the INP file. Point layer shapefiles must be created for Inlets/Junctions and outfalls. Line Layer Shapefiles must be created for conduits. Once the shapefiles have been created, features from the shapefiles can be selected and assigned to the storm drain data.

The storm drain editor has an option to Select Components from Shapefile Layer in the Storm Drain Editor. The selected attributes will be assigned to the Inlets/Junctions, Outfalls and Conduits Components Tables in User Layers.

The data must be schematized using the schematize button in the Storm Drain Editor.

Then the *.INP can be created by clicking Export SWMM.inp. Storm drain data files as:

SWMMFLO.DAT file, SWMMOUTF.DAT File and SWMMFLORT.DAT file will be created when FLO-2D Data Files are exported in the QGIS Project. The Storm Drain component needs to be turned ON in the FLO-2D Control and Tolerance Variables.

Importing existing *.INP file

An existing *.INP file can be imported with the buttons in Figure 48 once the FLO-2D surface model has been already created. The Storm Drain Editor has an option to Import SWMM.inp that can be used to read an existing *.INP file. Storm drain systems created using other software can be imported if the format is compatible with EPA SWMM Version 5.

Figure 48. Import Export SWMM.INP Options.

The storm drain features will be read from the *.INP file and the Inlets/Junctions, Outfalls and Conduits tables in the components section in the Storm Drain Editor will be completed.

Auto assign nodes

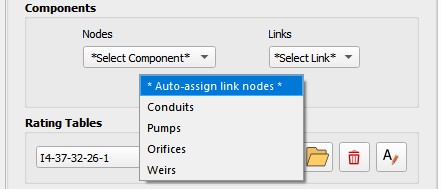

The auto assign tool (Figure 49) scans the polyline data and finds the nodes at the upstream and downstream end. The node names fields from the Link tables are filled automatically.

Figure 49. Auto Assign Tool.

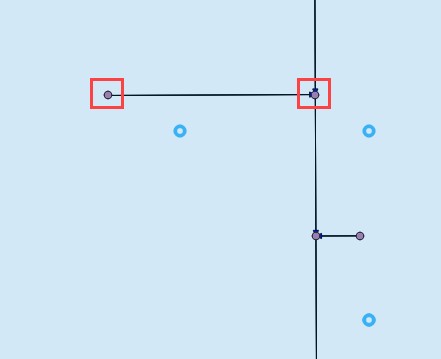

The algorithm uses a loop to read the xy coordinate of each end of the polyline using the xat,yat vertex(1) and xat,yat vertex (-1). This calls the first and last vertex of each line. A small buffer is then applied to each of the points. If a node is within the buffer, it is assigned to the InNode or OutNode table for each of the Link features. It is important that the links are digitized in the correct flow direction. Arrows are used in the feature style to represent the flow direction. Figure 50 shows the nodes next to each end of the link and the flow direction is shown by the blue arrows.

Figure 50. Link Node and Flow Direction.

Rating Tables and Pump Curves

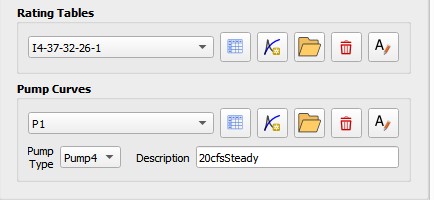

The rating table and pump curve tools (Figure 51) can import or build tabular data for type 4 inlets and pumps. These tools are connected to the table and plotting windows shown in Figure 52. These tools facilitate data assignment by automatically finding node names or link names and assigning the data with the same name.

Figure 51. Rating Tables and Pump Curves.

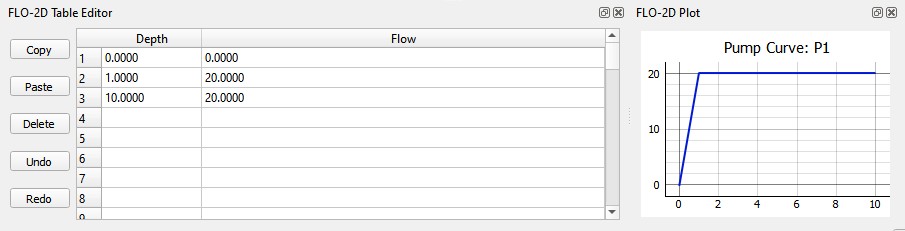

Figure 52. Table Editor and Plotting Window.

Hazus tools

The Hazus tool will generate a raster maximum depth file that can be used as an input for the FEMA Hazus program. The required layers include building shape files, grid cell elevations, grid cell depth and water surface elevations. The user must define ground elevation, water surface elevation and maximum flow depth for each building. An adjustment factor can be applied to calculate the finished floor elevation. Figure 53 shows the tool requirements.

Figure 53. Hazus Tool.

The process to generate a Hazus raster is outlined in the User’s Manual. It requires the use of several general QGIS tools for importing, intersecting, calculating, and rasterizing data. The requirements and calculations are outlined below for each layer.

• Building layer – This layer is used to define the building locations and set the building ID.

• Depth and water surface data – FLO-2D results imported as text files.

• Assign water surface and depth – This calculation process uses a simple Join feature to write the results into the Grid layer.

• Intersect buildings layer – This QGIS process splits the building polygons into separate polygons for each grid element.

• Homogenize the building intersection layer – This process joins the split buildings to the grid elevation, depth and water elevation data and calculates statistics for the building.

• Join building statistics to building polygons – This QGIS process writes the stats back to the Buildings layer.

• Rasterize – This QGIS process rasterizes building depth and water surface data for Hazus.

References

Open Geospatial Consortium (OGC), 2023. GeoPackage Encoding Standard, Version 1.3. https://www.ogc.org/standard/geopackage/

Python Software Foundation, 2023. The Python Tutorial, Python 3.12 Documentation. https://docs.python.org/3/tutorial/

Flood Control District of Maricopa County (FCDMC), 2023. Drainage Design Manual for Maricopa County, Arizona – Hydrology. (Accessed 2023; no stable public URL provided.)

Appendix A GeoPackage Structure

all_schem_bc

A table that stores the boundary condition cell data from the BC cells schematic layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
type	TEXT	Defines inlet or outlet.
tab_bc_fid	INTEGER	Link to the hydrograph or stage timetable.
grid_fid (DUM)	INTEGER	Grid element id of the cell.
geom	POLYGON	Polygon of the cell.

blocked_cells

This table lists the data stored in the ARF_WRF layer of the Schematic group. The ARF_WRF layer stores the data written to the ARF.DAT file.

Field Name	Field Type	Description
fid	INTEGER	Unique id not related to the grid element.
grid_fid (igd / ittawf)	INTEGER	Grid element id of the cell.
area_fid	INTEGER	Id of the blocked areas layer in the User Layers group.
arf	REAL	Area reduction factor.
wrf1	REAL	Width reduction factor north.
wrf2	REAL	Width reduction factor east.
wrf3	REAL	Width reduction factor south.
wrf4	REAL	Width reduction factor west.
wrf5	REAL	Width reduction factor northeast.
wrf6	REAL	Width reduction factor southeast.
wrf7	REAL	Width reduction factor southwest.
wrf8	REAL	Width reduction factor northwest.
geom	POINT	A point layer but the style of the layer is set up to look like blocked cells with 8 direction blockage.

breach

Individual breach data stored in the breach.dat file. This table works with import and export. It can be edited in the Breach layer of the Schematic Layers group.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
ibreachdir	INTEGER	Breach direction.
zu	REAL	Upstream face slope.
zd	REAL	Downstream face slope.
zc	REAL	Upstream and downstream core slope.
crestwidth	REAL	Crest width of the dam or levee.
crestlength	REAL	Crest length of the dam or levee
brbotwidmax	REAL	Maximum breach width at the bottom.
brtopwidmax	REAL	Maximum breach width at the top of the breach.
brbottomel	REAL	Minimum erosion elevation of the breach.
weircoef	REAL	Weir coefficient.
d50c	REAL	Mean sediment size core.
porc	REAL	The porosity of the core material.
uwc	REAL	Unit weight core.
cnc	REAL	Manning’s n core.
afrc	REAL	Angle of internal friction core.
unfcc	REAL	Cohesive strength core.
cohc	REAL	Sediment gradient core.
d50s	REAL	Mean sediment size shell.
pors	REAL	The porosity of the shell.
uws	REAL	Unit weight shell.
cns	REAL	Manning’s n shell.
afrs	REAL	Angle of internal friction shell.
cohs	REAL	Cohesive strength shell.
unfcs	REAL	Sediment gradient shell.
bratio	REAL	The ratio of initial breach width to depth.
grasslength	REAL	Average grass length on downstream face.
grasslength	REAL	Average grass length on downstream face.
grasscond	REAL	The condition of the grass. Poor or Good.
grassvmaxp	REAL	Maximum permissible velocity for the the grasslined downstream face.
sedconmax	REAL	Maximum sediment concentration.
d50df	REAL	Mean sediment size of the downstream upper one foot face.
unfcdf	REAL	Sediment gradient of the downstream upper one foot face.
breachtime	REAL	Length of time between the initial breach condition and the start of the breach.
geom	POINT	Breach layer is a point layer.

breach_cells

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id or the breach id.
breach_fid	INTEGER	Id that joins to the breach point layer.
grid_fid (dum)	INTEGER	Grid element id of the cell.

breach_fragility_curves

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
fragchar	TEXT	Fragility character.
prfail	REAL	Levee fragility failure probability.
prdepth	REAL	The distance below levee crest paired with the failure probability.

breach_global

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
ibreachsedeqn	INTEGER	Unit fid is unique and not associated with the grid id.
gbratio	REAL	The ratio of the initial breach width to breach depth.
gweircoef	REAL	Weir coefficient
gbreachtime	REAL	Time to start of erosion from when pipe elevation is reached.
gzu	REAL	Upstream face slope.
gzd	REAL	Downstream face slope.
gzc	REAL	Upstream and downstream core slope.
gcrestwidth	REAL	Crest width of the dam or levee.
gcrestlength	REAL	Crest length of the dam or levee.
gbrbotwidmax	REAL	Maximum breach width at the bottom.
gbrtopwidmax	REAL	Maximum breach width at the top of the breach.
gbrbottomel	REAL	Minimum erosion elevation of the breach.
gd50c	REAL	D50 of the core material.
gporc	REAL	The porosity of the core material.
guwc	REAL	Unit weight core.
gcnc	REAL	Manning’s n core.
gafrc	REAL	Angle of internal friction core.
gcohc	REAL	Cohesive strength core.
gunfcc	REAL	Sediment gradient core.
gd50s	REAL	Mean sediment size shell.
gpors	REAL	The porosity of the shell.
guws	REAL	Unit weight shell.
gcns	REAL	Manning’s n shell.
gafrs	REAL	Angle of internal friction shell.
gcohs	REAL	Cohesive strength shell.
ggrasslength	REAL	Sediment gradient shell.
gunfcs	REAL	Average grass length on downstream face.
ggrasscond	REAL	Condition of grass. Poor or Good.
ggrassvmaxp	REAL	Maximum permissible velocity for grass lined downstream face.
gsedconmax	REAL	Maximum sediment concentration.
d50df	REAL	Mean sediment size of the downstream upper one foot face.
gunfcdf	REAL	Sediment gradient of the downstream upper one foot face.

bridge_variables

Field Name	Field Type	Description
struct_fid	INTEGER	structure fid for which the data are defined “IBTYPE” INTEGER.
IBTYPE	INTEGER	Type of bridge configuration (see Appendix figures).
COEFF	REAL	Overall bridge discharge coefficient assigned or computed (default = 0.).
C_PRIME_USER	REAL	Baseline bridge discharge coefficient to be adjusted with detail coefficients.
KF_COE	REAL	Froude number coefficient assigned or computed (= 0.).
KWW_COEF	REAL	Wingwall coefficient assigned or computed (= 0.).
KPHI_COEF	REAL	Flow angle with bridge coefficient assigned or computed (= 0.).
KY_COEF	REAL	Coefficient associated with sloping embankments and vertical abutments (= 0.).
KX_COEF	REAL	Coefficient associated with sloping abutments assigned or computed (= 0.).
KX_COEF	REAL	Coefficient associated with sloping abutments assigned or computed (= 0.).
KJ_COEF	REAL	Coefficient associated with pier and piles assigned or computer (= 0.).
BOPENING	REAL	Bridge opening width (ft or REAL**BOPENING** m). See Figure 7.
BLENGTH	REAL	Bridge length from upstream edge to downstream abutment (ft or m).
BN_VALUE	REAL	Bridge reach n-value (typical channel n-value for the bridge cross section).
UPLENGTH12	REAL	Distance to upstream cross section unaffected by bridge backwater (ft or m).
LOWCHORD	REAL	Average elevation of the low chord (ft or m).
DECKHT	REAL	Average elevation of the top of the deck railing for overtop flow (ft or m).
DECKLENGTH	REAL	Deck weir length (ft or m).
PIERWIDTH	REAL	Combined pier or pile cross section width (flow blockage width in ft or m).
SLUICECOEFADJ	REAL	Adjustment factor to raise or lower the sluice gate coefficient which is 0.33 for Yu/Z = 1.0.
ORIFICECOEFADJ	REAL	Adjustment factor to raise or lower the orifice flow coefficient which is 0.80 for Yu/Z = 1.0.
COEFFWEIRB	REAL	Weir coefficient for flow over the bridge deck. For metric: COEFFWIERB x 0.552.
WINGWALL_ANGLE	REAL	Angle the wingwall makes with the abutment perpendicular to the flow.
PHI_ANGLE	REAL	Angle the flow makes with the bridge alignment perpendicular to the flow.
LBTOEABUT	REAL	Toe elevation of the left abutment (ft or m).
RBTOEABUT	REAL	Toe elevation of the right abutment (ft or m)

buildings_areas

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
adjustment_factor(arfblockmod)	REAL	Global adjustment of totally blocked cell ARFs. Coefficient.
geom	POLYGON	Polygon of the building footprint.

buildings_stats

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
building_id	INTEGER	ID of a unique building
grnd_elev_avg	REAL	Average elevation of the cells within the building footprint.
grnd_elev_min	REAL	Min elevation of the cells within the building footprint.
grnd_elev_max	REAL	Max elevation of the cells within the building footprint.
floor_avg	REAL	Average floor elevation.
floor_min	REAL	Min floor elevation.
floor_max	REAL	Max floor elevation.
water_elev_afb	INTEGER	Average water surface elevation of the cells surrounding the building footprint.
water_elev_max	REAL	Max water surface elevation of the cells surrounding the building footprint.
depth_afg	REAL	Average depth of th cells around the building footprint.
depth_min	REAL	Average depth of the cells around the building footprint
geom	POLYGON	Polygon of the building footprint.

bridge_xs

Table for bridge upstream and downstream cross section identification.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
struct_fid	INTEGER	Unique id for the hydraulic structure that the bridge cross section matches.
xup	REAL	Station in ft or m.
yup	REAL	Elevation in ft or m.
yb	REAL	Distance from bridge to up cross section.

chan

Table for the Channel Segments (left banks) layer in the Schematic Layers group. This layer stores the data that is written to the chanbank.dat for each channel segment control line. It also sets the rank of each channel in the chan.dat file so that the channel matches the position of the cross-sections. Channel are written in order from rank = 1 to n number of segments.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Segment name.
depinitial	REAL	Initial depth.
froudc	REAL	Limiting Froude.
roughadj	REAL	Manning’s n adjustment factor.
isedn	INTEGER	Channel sediment switch.
notes	TEXT	Notes.
user_lbank_fid	INTEGER	Left bank id links channel segment to a left bank line.
rank	INTEGER	Rank order in the chan.dat file.
geom	LINESTRING	Polyline

chan_confluences

Table of data associated with the Channel Confluences layer in the Schematic Layers group. This table identifies the connecting channel cells and identifies if a confluence cell is a tributary or main channel element.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id, confluence or the channel id.
conf_fid	INTEGER	Id of confluence pair.
type	TEXT	Tributary or Main.
chan_elem_fid(iconflo1, iconflo2)	INTEGER	Left or right bank id of the channel cell being connected.
notes	TEXT	Notes
geom	POINT	Point associated with the channel cell for a tributary or main element.

chan_elems

Table associated with all Channel Cross Sections layer in the Schematic Layers group. This table uses several id fields to link the cross sections to the correct channel segment, left bank element, right bank element and station or geometry data.

Field Name	Field Type	Description
id	INTEGER	Unit fid is unique and not associated with the grid id, seg id, xsec id.
Fid (leftbank)	INTEGER	Left bank grid element id.
seg_fid	INTEGER	Segment id from chan layer.
nr_in_seg	INTEGER	Rank of channel element in segment.
Rbankgrid(rightbank)	INTEGER	Right bank grid element id.
fcn	REAL	Manning’s n number of channel cross section.
xlen	REAL	Length of channel element.
type	TEXT	Geometry type. R, T, N, V
notes	TEXT	Notes.
user_xs_fid (nxsecnum)	INTEGER	Cross-section id links each polyline to the cross-section data table.
interpolated	INTEGER	Interpolated cross section. 0 non interpolated 1 interpolated.
max_water_elev	REAL	Maximum water elevation imported from hychan.out.
peak_discharge	REAL	Peak q imported from hychan.out.
geom	LINESTRING	Polyline.

chan_elems_interp

This table is used for a calculation scheme that calculates the distance between channel cross sections for the purpose of interpolation. The table is referenced in two python files. They are Schematic_tools.py and flo2dobjects.py.

Field Name	Field Type	Description
id	INTEGER	Id of the interpolated cross section.
fid	INTEGER	Unit fid is unique and not associated with the grid id.
seg_fid	INTEGER	Channel segment id.
up_fid	INTEGER	Id of the upstream cross section.
lo_fid	INTEGER	Id of the downstream cross section.
up_lo_dist_left	REAL	Distance from upstream cross section to current cross section.
up_lo_dist_right	REAL	Distance from current cross section to downstream cross section.
up_dist_left | REAL	Distance from left ban	to center.
up_dist_right	REAL	Distance from right bank to center.

chan_n

Table that stores the data that links natural cross-sections to left bank elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
elem_fid(ichangrid)	INTEGER	Left bank grid element id of the cell.
nxsecnum	INTEGER	Natural cross section number.
xsecname	TEXT	Cross section name.

chan_r

The table that stores the cross-section data for rectangular cross sections and links them to left bank elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
elem_fid(ichangrid)	INTEGER	Left bank grid element id of the cell.
bankell	REAL	Left bank elevation.
bankelr	REAL	Right bank elevation.
fcw	REAL	Channel width.
fcd	REAL	Channel depth.

chan_t

The table that stores the cross-section data for trapezoidal cross sections and links them to left bank elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
elem_fid(ichangrid)	INTEGER	Left bank grid element id of the cell.
bankell	REAL	Left bank elevation.
bankelr	REAL	Right bank elevation.
fcw	REAL	Channel width.
fcd	REAL	Channel depth.
zl	REAL	Left bank slope.
zr	REAL	Right bank slope.

chan_v

The table that stores the cross-section data for variable area regression cross sections and links them to left bank elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
elem_fid(ichangrid)	INTEGER	Left bank grid element id of the cell.
bankell	REAL	Left bank elevation.
bankelr	REAL	Right bank elevation.
fcd	REAL	Channel depth.
a1	REAL	Coefficient area.
a2	REAL	Exponent area.
b1	REAL	Coefficient wetted perimeter.
b2	REAL	Exponent wetted perimeter.
c1	REAL	Coefficient top width.
c2	REAL	Exponent top width.
excdep	REAL	Second equation starts when channel reaches this depth.
a11	REAL	Coefficient area (depth 2).
a22	REAL	Exponent area (depth 2).
b11	REAL	Coefficient wetted perimeter (depth 2).
b22	REAL	Exponent wetted perimeter (depth 2).
c11	REAL	Coefficient top width (depth 2).
c22	REAL	Exponent top width (depth 2).

chan_wsel

Table connecting the initial conditions to specific channel segments.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
seg_fid	INTEGER	Channel segment id.
istart	INTEGER	Channel element number that starts the water surface elevation.
wselstart	REAL	Elevation at the start.
iend	INTEGER	Channel element number that ends the water surface elevation.
wselend	REAL	Elevation at the end.

cont

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name field.
value	TEXT	Value field.
note	TEXT	Notes.

culvert_equations

The table that stores the data for the generalized culvert equations and linked to the Structures Layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
struct_fid	INTEGER	Hydraulic structure id from structures layer.
typec	INTEGER	Culvert type box or circular.
typeen	INTEGER	Entrance type.
culvertn	REAL	Manning’s n value.
ke	REAL	Contraction value.
cubase	REAL	Culvert width.
multibarrels	INTEGER	Multiple barrels.

evapor

The table that stores the start time and date for the Evaporation group.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
ievapmonth	INTEGER	Starting month of simulation. 1-12
iday	INTEGER	Starting day of the week. 1-7
clocktime	REAL	Starting clock time hours.

evapor_hourly

Temporal evaporation information related to the evaporation of a specific calendar.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
month	TEXT	Name of evaporation month.
hour	INTEGER	Evaporation hour.
hourly_evap	REAL	Evaporation rate.

evapor_monthly

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
month	TEXT	Month.
monthly_evap	REAL	Monthly evaporation rate.

fpfroude

The table that lists the data for the Froude Areas layer in the User Layers group. This polygon layers stores the spatially variable limiting Froude data.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
froudefp	REAL	Limting Froude.
geom	POLYGON	Polygon features that outline the limiting Froude areas.

fpfroude_cells

A table of cells that are written to the froudefp.dat when the project is exported.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
area_fid	INTEGER	This ID is joined to the fpfroude table from the User Layers.
grid_fid(idum)	INTEGER	Grid element id of the cell.

fpxsec

Table for the Floodplain Cross Sections layer in the Schematic Layers group. Stores the order of cross sections listed in fpxsec.dat.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
iflo	INTEGER	Flow direction 1 – 8.
nnxsec	INTEGER	Cross section number.
geom	LINESTRING	Polyline representing the exact location of the floodplain cross section.

fpxsec_cells

Table for the Floodplain Cross Sections Cells. Lists the cells in each floodplain cross section as written to fpxsec.dat.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
fpxsec_fid	INTEGER	Floodplain cross-section id.
grid_fid(nodx)	INTEGER	Grid element id of the cell.
geom	POINT	Point geometry to identify the cells in each floodplain cross section.

gpkg_contents

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
table_name	TEXT
data_type	TEXT
identifier	TEXT
description	TEXT
last_change	DATETIME
min_x	DOUBLE
min_y	DOUBLE
max_x	DOUBLE
max_y	DOUBLE
srs_id	INTEGER

gpkg_data_column_constraints

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
constraint_name	TEXT
constraint_type	TEXT
value	TEXT
min	NUMERIC
minIsInclusive	BOOLEAN
max	NUMERIC
maxIsInclusive	BOOLEAN
description	TEXT

gpkg_data_columns

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
table_name	TEXT
column_name	TEXT
name	TEXT
title	TEXT
description	TEXT
mime_type	TEXT
constraint_name	TEXT

gpkg_extensions

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
table_name	TEXT
column_name	TEXT
extension_name	TEXT
definition	TEXT
scope	TEXT

gpkg_geometry_columns

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
table_name	TEXT
column_name	TEXT
geometry_type_name	TEXT
srs_id	INTEGER	Coordinate system id.
z	TINYINT
m	TINYINT

gpkg_metadata

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
id	INTEGER
md_scope	TEXT
md_standard_uri	TEXT
mime_type	TEXT
metadata	TEXT

gpkg_metadata_reference

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
reference_scope	TEXT
table_name	TEXT
column_name	TEXT
row_id_value	INTEGER
timestamp	DATETIME
md_file_id	INTEGER
md_parent_id	INTEGER

gpkg_spatial_ref_sys

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
srs_name	TEXT	Coordinate reference system.
srs_id	INTEGER	Coordinate reference id number.
organization	TEXT
organization_coordsys_id	INTEGER
definition	TEXT
description	TEXT

gpkg_tile_matrix

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
table_name	TEXT
zoom_level	INTEGER
matrix_width	INTEGER
matrix_height	INTEGER
tile_width	INTEGER
tile_height	INTEGER
pixel_x_size	DOUBLE
pixel_y_size	DOUBLE

gpkg_tile_matrix_set

OGC GeoPackage Encoding Standard Table (Open Geospatial Consortium, 2017).

Field Name	Field Type	Description
table_name	TEXT
srs_id	INTEGER
min_x	DOUBLE
min_y	DOUBLE
max_x	DOUBLE
max_y	DOUBLE

grid

Table for the Grid layer in the Schematic Layers group. Used to store the grid element number, n_value and elevation. Data saved to topo.dat and mannings.dat.

Field Name	Field Type	Description
fid (dum)	INTEGER	Grid element id of the cell.
col	INTEGER	Row id.
row	INTEGER	Column id.
n_value(fpnvalue)	REAL	Manning’s n-value for each cell.
elevation(elev)	REAL	Elevation for each cell.
water_elevation	REAL	Imported water surface elevation.
flow_depth	REAL	Imported flow depth.
geom	POLYGON	Polygons define the grid system based on the cells size.

gutter_areas

The Gutter_Areas layer is used to define the spatial position of gutters. It also contains local variables used in gutter cells.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
width (widstr)	REAL	Individual cell street width.
height(curbht)	REAL	Individual cell curb height.
n_value(xnstr)	REAL	Individual cell street nvalue.
direction(icurbdir)	INTEGER	Curb direction.
geom	POLYGON	Polygons define the grid system based on the cells size.

gutter_cells

The gutter cells calculated from the gutter_areas. These are written to the GUTTER.DAT file when the project is exported.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
area_fid	INTEGER	The fid that is associated with the gutter area polygons.
line_fid	INTEGER	The fid that is associated with the gutter line polylines.
line_fid	INTEGER	Grid element id of the cell.

gutter_globals

The gutter_globals layer is a table that stores the global gutter variables. It is exported to GUTTER.DAT when the project is exported.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
height(strwidth)	REAL	Global curb height.
width(curbheight)	REAL	Global street width.
n_value (street_n-value)	REAL	Global gutter n-value

gutter_lines

The gutter_lines layer is a polyline layer that stores the gutter lines. It is exported to intersected to the gutter_cells table when the gutter calculator is applied.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
width(strwidth)	REAL	Gutter street width.
height(curbheight)	REAL	Gutter height.
n_value (guttern-value)	REAL	Gutter n-value
direction
geom	POLYLINE	Polyline geometry type.

infil

Table of global infiltration parameters for Green-Ampt, SCS, and Horton.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
infmethod	INTEGER	Grid element id of the cell.
abstr	REAL	Initial abstraction global.(in or mm).
sati	REAL	Initial saturation global. (decimal percentage).
satf	REAL	Final saturation global. (decimal percentage usually 1).
poros	REAL	Porosity global.(in^3 or mm^3).
soild	REAL	Soil depth global. The spatially variable soil depth will not be used unless this value is greater than zero. (ft or m).
infchan	INTEGER	Infiltration channel switch.
hydcall	REAL	Hydraulic conductivity global. (in/hr or mm/hr).
soilall	REAL	Capillary soil suction global. (in or mm).
hydcadj	REAL	Hydraulic conductivity adjustment. This variable will adjust spatially hydraulic conductivity per the conditions in the data Input Manual. (no units).
hydcxx	REAL	Channel hydraulic conductivity global. (in/hr or mm/hr).
scsnall	REAL	SCS curve number global. Do not use a value greater than 99.
abstr1	REAL	SCS initial abstraction global. (in or mm).
fhortoni	REAL	Horton initial infiltration rate global. (in/hr only).
fhortonf	REAL	Horton final infiltration rate global. (in/hr only).
decaya	REAL	Horton decay coefficient global. (no units).

infil_cells_green

Tables that stores green-ampt infiltration parameters for specific grid elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid (infgrid)	INTEGER	Grid element id of the cell.
hydc	REAL	Hydraulic conductivity for a specific grid element. (in/hr or mm/hr).
soils	REAL	Capillary soil suction for a specific grid element.(in or mm).
dtheta	REAL	Soil volumetric void ratio for a specific grid element. (unitless volume ratio).
abstrinf	REAL	Initial abstraction for a specific grid element. (in or mm).
soil_depth	REAL	Limiting soil infiltration depth for a specific grid element. (ft or m).

infil_cells_horton

Table that stores the Horton infiltration parameters for specific grid elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid (infgrid)	INTEGER	Grid element number.
fhorti	REAL	Horton initial infiltration rate for a specific grid element. (in/hr only).
fhortf	REAL	Horton final infiltration rate for a specific grid element. (in/hr only).
deca	REAL	Horton decay coefficient for a specific grid element.

infil_cells_scs

Tables that stores the scs curve number for specific grid elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid (infgrid)	INTEGER	Grid element id of the cell.
scsn	INTEGER	SCS curve number for specific grid elements. Do not use a value greater than 99.

infil_chan_elems

Table that stores the channel hydraulic conductivity for specific channel elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid (infch)	INTEGER	Grid element id of the cell left bank.
hydconch	INTEGER	Hydraulic conductivity for a specific channel cross section identified by the left bank grid id.

infil_chan_seg

Hidden table linked to the Infiltration editor. Data is not available to view via a table.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
chan_seg_fid	INTEGER	Channel segment.
hydcx	REAL	Hydraulic conductivity channel.
hydcxfinal	REAL	Final hydraulic conductivity channel.
soildepthcx	REAL	Soil depth channel.

inflow

Table for Inflow layer stored in the Tables group. Data is stored when the boundary condition schematize button is pushed.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of the inflow node.
time_series_fid	INTEGER	Hydrograph id.
ident	TEXT	Inflow type channel or floodplain.
inoutfc	INTEGER	Inflow or outflow.
note	TEXT	Note.
geom_type	TEXT	The field that identifies if the inflow source was from a point, line or polygon.
bc_fid	INTEGER	Id linking the inflow data to the BC layer.

inflow_cells

The table stores the data for Inflow Cells layer in the Tables group. This table joins the grid layer to the inflow layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
inflow_fid	INTEGER	Inflow id from the BC layer.
grid_fid	INTEGER	Grid element id of the cell.
area_factor	REAL	Not used.

inflow_time_series

The table that stores the number and name of the inflow time series. This data is used to join the time series data to the inflow cell data and the time series tables.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of the time series.

inflow_time_series_data

Table of the time series hydrograph data.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
series_fid	INTEGER	Id that joins the hydrographs to the time series names.
time (hp(j,1))	REAL	Hydrograph time.
value(hp(j,2))	REAL	Hydrograph discharge.
value2(hp(j,3))	REAL	Mudflow concentration.

levee_data

The table storing the data in the Levees layer in the Schematic Layers group. This data is written to the levee.dat file when the file is exported.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid(lgridno)	INTEGER	Grid element id of the cell.
ldir	INTEGER	Levee cutoff direction.
levcrest	REAL	Levee crest elevation.
user_line_fid	INTEGER	Id from the user layer.
geom	LINESTRING	The line that represents a levee aligned along the cut-off direction.

levee_failure

The table that stores the data for a prescribed levee breach. This layer is hidden. It is not editable. It is filled when the project is imported.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid(lfailgrid)	INTEGER	Grid element id of the cell.
lfaildir	INTEGER	Levee fail direction.
failevel	REAL	Fail start elevation. (ft or m).
failtime	REAL	Levee fail time to delay start. (hrs).
levbase	REAL	Fail base elevation. (ft or m).
failwidthmax	REAL	Max breach width. (ft or m).
failrate	REAL	Vertical fail rate. (ft/hr or m/hr).
failwidrate	REAL	Horizontal fail rate. (ft/hr or m/hr).

levee_fragility

The table that stores the levee fragility data. This data is written to the hidden layer when the data is imported. This table is not editable.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid(levfraggrid)	INTEGER	Grid element id of the cell.
levfragchar	TEXT	Fragility character representing levee frag line.
levfragprob	REAL	Fragility probability.

levee_general

The hidden table that is filled when the file is imported. Not editable.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
raiselev	REAL	Global height to raise all levees. (ft or m).
ilevfail	INTEGER	Levee fail switch.
gfragchar	TEXT	Levee fragility character.
gfragprob	REAL	Levee fragility probability.

mud

Table of data for the sed.dat file mudflow line. Data is imported into this table when GDS import is used. It is not editable.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
va	REAL	Viscosity coefficient.
vb	REAL	Viscosity exponent.
ysa	REAL	Yield stress coefficient.
ysb	REAL	Yield stress exponent.
sgsm	REAL	Specific gravity.
xkx	REAL	Laminar flow resistance.

mud_areas

The table that stores the data for the polygons that represent a debris storage basin. The polygons are stored in the Mud Areas layer in the Sediment Transport group. Data is for the sed.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
debrisv	REAL	The volume of debris basin.
geom	POLYGON	Polygons features of debris basins.

mud_cells

The table that joins the mudflow debris basin polygons to the grid. Data is for the SED.DAT file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid(debnod)	INTEGER	Grid element id of the cell.
area_fid	INTEGER	Id of the mud areas layer.

mult

The table that stores the data imported from the GDS import. Hidden table not editable. Data is for the mult.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
wmc	REAL	Incremental global width expansion.
wdrall	REAL	Global maximum width.
dmall	REAL	Maximum depth.
nodchansall	INTEGER	Number of channels in each grid element.
xnmultall	REAL	Global Manning’s n.
sslopemin	REAL	Minimum slope.
sslopemax	REAL	Maximum slope.
avuld50	REAL	Bed material D50.
simple_n	REAL	Simple mult roughness.

mult_areas

Table of values stored in the spatially variable multiple channel areas. The Multiple Channel Areas layer is part of the Schematic Layers group. Data is for the mult.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
wdr	REAL	Individual max width.
dm	REAL	Individual max depth.
nodchns	REAL	An individual number of channels within the element.
xnmult	REAL	Individual Manning’s n.
geom	POLYGON	Feature polygon representing individual multiple channel areas.

mult_cells

The table that joins the multiple channel areas to the grid layer. Data is for the mult.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid(igrid)	INTEGER	Grid element id of the cell.
area_fid	INTEGER	Multiple channel areas id.
line_fid	INTEGER	Multiple channel line id.
wdr	REAL	Local width.
dm	REAL	Local depth.
nodchns	INTEGER	Number of mult channels in a grid.
xnmult	REAL	Channel n-value.

mult_lines

The table that joins the multiple channel lines to the grid layer. Data is for the mult.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
wdr	REAL	Local width.
dm	REAL	Local depth.
nodchns	INTEGER	Number of mult channels in a grid.
xnmult	REAL	Channel n-value.
geom	POLYLINE

noexchange_chan_cells

This table stores the areas that are converted into noexchange channel cells.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
area_fid	INTEGER	Polygon area id intersected to grid element.
grid_fid	INTEGER	Grid element id.

out_hydrographs

This is a table of polygon areas that define the outflow condition as O1 – O9. This table is used for schematizing the out_hydrographs_cells table.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
hydro_sym(outchar)	TEXT	O1 – O9
name	TEXT	Name of outflow cell with hydrograph.
geom	POLYGON	Polygon that will intersect a group of cells that will be assigned as outflow nodes.

out_hydrographs_cells

This table stores the grid elements and outflow polygons that are used to write the O1 – O9 outflow hydrograph data. This data will be exported to the OUTFLOW.DAT file when the project is exported.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
hydro_fid	INTEGER	Fid for the polygons in out_hydrographs table.
grid_fid	INTEGER	Grid element id of the cell.

outflow

Table of data for the Outflow layer. This layer is part of the Tables group. The table is listed in the import lines of the flo2dgeopackage.py code. It is used by the import function and its the main purpose is to set up the id fields and switches to join various data tables to the outflow nodes. It is referenced in the import GDS code, schematic to user layers code and export GDS code.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of the outflow feature.
chan_out	INTEGER	Switch to identify a channel node. Set to 1 for a channel. Leave null for no channel.
fp_out	INTEGER	Switch to identify a floodplain node. Set to 1 for floodplain. Leave null for no floodplain.
hydro_out	INTEGER	Switch to identify that a hydrograph should be captured for a downstream model.
chan_tser_fid	INTEGER	Id to join to time series data for a channel.
chan_qhpar_fid	INTEGER	Id to join to channel rating curve data.
chan_qhtab_fid	INTEGER	Id to join to depth discharge data.
fp_tser_fid	INTEGER	Id to join to outflow time series data.
type	INTEGER	Inflow or outflow.
geom_type	TEXT	Point, line or polygon.
bc_fid	INTEGER	Id from the BC layer in Schematic layers.

outflow_cells

Table to join the outflow data to the grid layer. This layer is part of the Tables group.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
outflow_fid	INTEGER	Id for the outflow features from the user layer.
grid_fid (kout,noddc)	INTEGER	Grid element id of the cell.
area_factor	REAL	Not used.

outflow_time_series

The table that lists the time series tables by name.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of the time series table.

outflow_time_series_data

The table that lists the time series stage-time tables by time and elevation data.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
series_fid	INTEGER	Id to join to the time series table.
time(sta_time)	REAL	Time for each stage.
value (sta_stage)	REAL	Stage in elevation.

qh_params

Table to store the names of features for channel outflow discharge curve.

Field Name	Field Type	Description
fid	INTEGER	Id of outflow curve.
name	TEXT	Name of outflow curve.

qh_params_data

Parameters for the stage-discharge curve for a channel outflow node. This table joins to the qh_params table to identify the name of the table and assign the data to the correct outflow node. The data is imported and exported to the outflow.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
params_fid	INTEGER	Id of outflow curve.
hmax(hout(j,1))	REAL	Max depth for valid equation.
coef(hout(j,2))	REAL	Coefficient.
exponent(hout(j,3))	REAL	Exponent.

qh_table

Table for storing the name and id of the channel time discharge curve.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of the hydrograph.

qh_table_data

Table to store the depth discharge data for channel outflow nodes and join to the qh_table data. Data is imported and exported for outflow.dat.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
table_fid	INTEGER	Id from qh_table.
depth(chdepth)	REAL	Channel depth.
q (cqtable)	REAL	Discharge for depth discharge outflow condition.

rain

Table of global and control rain data. Data is imported and exported to the rain.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT
irainreal	INTEGER	Real-time rainfall switch.
irainbuilding	INTEGER	Rain on building switch.
time_series_fid	INTEGER	Id for the time series data.
tot_rainfall(rtt)	REAL	Total rainfall.
rainabs	REAL	Global rainfall abstraction.
irainarf(rainarf)	INTEGER	RainARF switch. This variable is miss labeled in QGIS. It is not an array but a global variable.
movingstorm	INTEGER	Moving storm switch.
rainspeed	REAL	The speed of moving storm.
iraindir	INTEGER	The direction of moving storm.
notes	TEXT	Notes

rain_arf_cells

The table that facilitates the join between the rain arf areas layer and the grid layer. Data is imported and exported to the RAIN.DAT file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
rain_arf_area_fid	INTEGER	Id of the rain arf areas polygons.
grid_fid	INTEGER	Grid element id of the cell.
arf	REAL	Rainfall reduction factor.

rain_time_series

A table that lists the names of the rainfall time series tables.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of time series table.

rain_time_series_data

Data in the rainfall time series tables. This date is imported and exported to the rain.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
series_fid	INTEGER	Id from the rain time series table.
time (r_time)	REAL	Time of rainfall.
value (r_distr)	REAL	Percent total rainfall 0 to 1.

raincell

Control data for the real-time rainfall data. This data is imported and exported to the raincell.dat or raincell binary file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
rainintime	REAL	Time interval minutes.
irinters	INTEGER	Number of intervals.
timestamp	TEXT	Start and end time.
name	TEXT	Name of the rainfall event.

raincell_data

Data for the real-time rainfall event. This data is imported and exported to the raincell.dat file or the raincell hdf5 file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
rrgrid	INTEGER	Grid element.
time_interval	REAL	Time of rainfall.
iraindum	REAL	Rainfall in inches or mm.

rat_curves

Table of values for the rating curves for hydraulic structures. This data is imported and exported to the hystruc.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
struct_fid	INTEGER	Id of the structure polyline feature.
hdepexc	REAL	Maximum valid depth for curve q.
coefq	REAL	Coefficient for curve q.
expq	REAL	Exponent for curve q.
coefa	REAL	Coefficient for replacement curve.
expa	REAL	Exponent for replacement curve.

rat_table

Table of values for the depth discharge tables for hydraulic structures. This data is imported and exported to the hystruc.dat file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
struct_fid	INTEGER	Id to join to structure polyline.
hdepth	REAL	Headwater depth value for the depth discharge table.
qtable	REAL	Discharge for the depth discharge table.
atable	REAL	Area for the depth discharge table.

rbank

Table of data linked to the Right Bank layer of the Schematic Layers group.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
chan_seg_fid	INTEGER	Id of the channel segment.
geom	LINESTRING	Polyline representing a right bank.

repl_rat_curves

Table of data that stores the replacement rating curve data for hydraulic structures. This data is saved to the HYSTRUC.DAT file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
struct_fid	INTEGER	Id to join to structure polyline.
repdep	REAL	Replacement depth. Replacement curve starts at this depth.
rqcoef	REAL	Replacement discharge coefficient.
rqexp	REAL	Replacement discharge exponent.
racoef	REAL	Replacement area coefficient.
raexp	REAL	Replacement area exponent.

reservoirs

This table stores the reservoir node data for the schematic layer. It writes to the R line of the INFLOW.DAT file

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
user_res_fid	INTEGER	Id of the reservoir feature in the user layer.
name	TEXT	Name of the reservoir feature.
grid_fid	INTEGER	Grid element id of the cell.
wsel	REAL	Reservoir water surface elevation.
n_value	REAL	Replacement n value for grid elements within reservoir
use_n_value	INTEGER	Switch to replace n value within reservoir group to n_value reservoir.
tailings	REAL	Tailings elevation. Should be lower than wsel.
note	TEXT	Note
geom	POLYGON	The geometry of this layer is a polygon and it would be the same size and shape as a single grid element.

rtree_buildings_stats_geom

RSTLNE.

Field Name	Field Type	Description
id	INTEGER	Unit fid is unique and not associated with the grid id.
minx	REAL
maxx	REAL
miny	REAL
maxy	REAL

rtree_buildings_stats_geom_node

RSTLNE.

Field Name	Field Type	Description
nodeno	INTEGER
data	TEXT

rtree_buildings_stats_geom_parent

RSTLNE.

Field Name	Field Type	Description
nodeno	INTEGER
parentnode	TEXT

rtree_buildings_stats_rowid

RSTLNE.

Field Name	Field Type	Description
rowid	INTEGER	Unit fid is unique and not associated with the grid id.
nodeno	TEXT

rtree_grid_geom

RSTLNE.

Field Name	Field Type	Description
id	INTEGER
minx	REAL
maxx	REAL
miny	REAL
maxy	REAL

rtree_grid_geom_node

RSTLNE.

Field Name	Field Type	Description
nodeno	INTEGER
data	TEXT

rtree_grid_geom_parent

RSTLNE.

Field Name	Field Type	Description
nodeno	INTEGER
parentnode	TEXT

rtree_grid_geom_rowid

RSTLNE.

Field Name	Field Type	Description
rowid	INTEGER
nodeno	INTEGER

sed

A table of values that define like groups of sediment transport data. This data is written to the SED.DAT file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
isedeqg	INTEGER	Sediment transport equation.
isedsizefrac	INTEGER	Sediment size fraction.
dfifty	REAL	Sediment size D50
sgrad	REAL	Sediment gradient coefficient.
sgst	REAL	Sediment specific gravity.
dryspwt	REAL	Dry specific weight.
cvfg	REAL	Fine sediment volumetric concentration.
isedsupply	INTEGER	Supply sediment group to floodplain or channel.
isedisplay	INTEGER	The element used for a list of output for each sediment transport equation.
scourdep	REAL	Maximum allowable scour depth.

sed_group_areas

The table used to connect the sediment transport polygons to the sediment table.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
group_fid	INTEGER	Id of the sediment transport group data table.
geom	POLYGON	Polygon layer.

sed_group_cells

Table and layer that joins the sediment layers to the grid layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Grid element id of the cell.
area_fid	INTEGER	Id for the sediment layer.

sed_group_frac

This table lists the names of the sediment fragment groups.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT

sed_group_frac_data

This table stores the sediment data for the sediment fragment groups.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
dist_fid	INTEGER	This is the Id of the sediment fragment group.
sediam	REAL	Diameter of the sediment in this group.
sedpercent	REAL	Percentage of the sediment with the specified diameter.

sed_groups

This table stores the data for sediment fraction groups like bed thickness and volumetric sediment concentration.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
isedeqi	INTEGER	Sediment transport equation number.
bedthick	REAL	Sediment bed thickness for sediment routing by size fraction.
cvfi	REAL	Fine sediment volumetric concentration local.
name	TEXT	Name of sediment group.
dist_fid	INTEGER	Id of sediment group.

sed_rigid_areas

This table lists the polygons that represent rigid bed areas.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
geom	POLYGON

sed_rigid_cells

This table connects the rigid bed areas to the grid elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Grid element id of the cell.
area_fid	INTEGER	Id from the rigid bed areas.

sed_supply_areas

This table lists the sediment supply data for polygons that are used to define the location of specific local sediment supply areas.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
isedcfp	INTEGER	Floodplain or channel switch for this sediment supply area.
ased	REAL	Sediment rating curve coefficient.
bsed	REAL	Sediment rating curve exponent.
dist_fid	INTEGER	Id of the sediment supply group.
geom	POLYGON	Polygon features that represent the sediment supply areas.

sed_supply_cells

These are the cells that are intersected with the sed_supply_areas table.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Grid element id of the cell.
area_fid	INTEGER	Id from the sediment_supply_areas.

sed_supply_frac

A table that lists the sediment supply groups.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of the sediment supply groups.

sed_supply_frac_data

A table of sediment supply data representing sediment diameter and percentage of a given diameter.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
dist_fid	INTEGER	Id of the sediment supply group.
ssediam	REAL	Sediment diameter.
ssedpercent	REAL	Percentage of the sediment for a given diameter.

simple_mult_cells

A table of cells that are identified as simple mult cells by the cell id and simple mult line id.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Grid element number ID.
line_fid	REAL	Simple mult line id.

simple_mult_lines

A table of cells that are identified as simple mult cells by the cell id and simple mult line id.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
geom	POLYLINE	Polyline geometry.

spatialshallow

A table of data that lists the polygons that have local shallow n data.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
shallow_n(shallown)	REAL	Spatially variable shallow n-value.
geom	POLYGON	Polygon of a group with the same spatial shallow n.

spatialshallow_cells

A table that connects the spatial shallow polygons to the grid elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
area_fid	INTEGER	Fid associated with the spatial shallow n polygons.
grid_fid	INTEGER	Grid element fid.

storm_drains

The table of data for simple storm drains written to the HYDROSTRUC.DAT file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
struct_fid	INTEGER	Id of the hydraulic structure.
istormdout	INTEGER	Grid element number of the combined outflow node for the simple storm drain.
stormdmax	REAL	Maximum discharge value for the outlet.

street_elems

The table that links local street nodes to the street segment.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
seg_fid	INTEGER	Id of the street segment.
istdir	INTEGER	Flow direction from the center of the node.
widr	REAL	Local street width.

street_general

Table of global street data assigned to each street segment.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
strman	REAL	Manning’s n.
istrflo	INTEGER	Inflow node to the street or floodplain switch.
strfno	REAL	Maximum Froude number.
depx	REAL	Global street curb height.
widst	REAL	Global street width.

street_seg

Table of local street data.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
str_fid	INTEGER	Id field to join local streets to individual street features.
igridn	INTEGER	Id field to join the individual street features to the grid element.
depex	REAL	Local curb height.
stman	REAL	Local Manning’s n.
elstr	REAL	Local elevation of the street.
geom	MULTILINESTRING	A geometry with multiple components.

streets

Table of street names for individual street segments.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
stname	TEXT	Name of the street segment.
notes	TEXT	Notes.

struct

Table of values assigned to the polyline features of the hydraulic structures layer. This data is imported and exported to HYSTRUC.DAT.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
type(struchar)	TEXT	Character that identifies the line in hystruc.dat.
structname	TEXT	Name of the structure.
ifporchan	INTEGER	Switch to configure the structure floodplain or channel inlet and outlet designation.
icurvtable	INTEGER	Switch to configure structure calculation source.
inflonod	INTEGER	Inlet grid element.
outflonod	INTEGER	Outlet grid element.
inoutcont	INTEGER	Switch to configure the tailwater condition.
headrefel	REAL	Head reference elevation.
clength	REAL	Culvert length.
cdiameter	REAL	Culvert diameter.
notes	TEXT	Notes
geom	LINESTRING	Geometry is a line that begins in the inlet node and ends in the outlet node.

swmm_inflow_patterns

Table of data to represent the storm drain external inflow patterns. This data is written to swmm.inp.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
pattern_name	TEXT	Pattern name.
patter_description	TEXT	Pattern description.
hour	REAL	Hourly repeat for each multiplier.
multiplier	REAL	One for each hour.

swmm_inflows

Schematized table of data to define the type of time series data and the location of the timeseries data file. This data is written to swmm.inp.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
node_name	TEXT	Storm drain node name.
constituent	TEXT	Water.
baseline	REAL	Baseline discharge cfs (cms)
pattern_name	TEXT	Name of the inflow pattern.
time_series_name	TEXT	Name of the time series.
scale_factor	REAL	Discharge scale factor.

swmm_pump_curve_data

Schematized table of data to define the type pump curve. This data is written to swmm.inp.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
pump_curve_name	TEXT	Name of the pump curve.
pump_curve_type	TEXT	Type of pump curve.
description	TEXT	Description field.
x_value	REAL	x column of the table.
y_value	REAL	y column of the table.

swmm_tidal_curve

Table of data to represent the storm drain tidal curve patterns. This data is written to swmm.inp.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
tidal_curve_name	TEXT	Tidal curve name.
tidal_curve_description	TEXT	Tidal curve description.

swmm_tidal_curve_data

Table of tidal data for stage and time.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
tidal_curve_name	TEXT	Tidal curve name.
hour	REAL	Time at stage in hours.
stage	REAL	Stage at time in ft or m.

swmm_time_series

Table of data to represent the storm drain time series file or data table id. This data is written to swmm.inp.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
time_series_name	TEXT	Time series name.
time_series_description	TEXT	Tidal curve description.
time_series_file	TEXT	File path of the time series file.
time_series_data	TEXT	Table name of the time series data.

swmm_time_series_data

Table of time series data. This data is written to swmm.inp.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
tidal_series_name	TEXT	Tidal curve name.
date	TEXT	Date ()
time	TEXT	Time (HH:MM)
value	REAL	Inflow or outflow discharge value. (cfs or cms)

swmmflo

Table of values that stores the FLO-2D parameters for storm drain inlets. This data is imported and exported from SWMMFLO.DAT.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
swmmchar	TEXT	Line identifier for
swmm_jt	INTEGER	Grid element assigned to the inlet.
swmm_iden	TEXT	Storm drain inlet name.
intype	INTEGER	Type of inlet.
swmm_length	REAL	Curb opening length or grate wetted perimeter.
swmm_width	REAL	Curb opening width or grate area.
swmm_height	REAL	Curb opening height or grate sag or manhole surcharge depth.
swmm_coeff	REAL	Weir coefficient.
flapgate	INTEGER	Flapgate switch.
curbheight	REAL	Curb height.
name	TEXT	Name (used by plugin not assigned to SWMMFLOW.DAT or SWMM.inp).
geom	POINT	The feature is a point geometry that is assigned to the grid element closest to the actual inlet location.

swmmflo_culvert

A table of data that joins the grid element and swmmid to the generalized culvert equation data for the SWMMFLORT.DAT file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Grid element id of the cell.
name	TEXT	Name of the inlet that the table is assigned to.
cdiameter	REAL	Conduit diameter or height. (ft or m)
typec	INTEGER	Inlet type.
typeen	INTEGER	Entrance type.
cubase	REAL	Conduit width.
multbarrels	INTEGER	Number of barrels.

swmmflort

A table of data that joins the grid element and swmmid to the rating table data for the SWMMFLORT.DAT file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Grid element id of the cell.
name	TEXT	Name of the inlet that the table is assigned to.

swmmflort_data

Table of data that stores the rating tables for individual inlets. This data is imported and exported from SWMMFLORT.DAT.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
swmm_rt_fid	INTEGER	Id for individual inlets.
depth	REAL	The depth of flow.
q	REAL	Inlet discharge received for each depth.

swmmoutf

Table of data to join the storm drain outfalls to the grid element. This data is imported to and exported from to the SWMMOUTF.DAT.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Grid element id of the outfall cell.
name	TEXT	Name of the outfall. This field is used by the MOUTF.DAT and SWMM.inp file.
outf_flo	INTEGER	Outfall discharge switch.
geom	POINT	The feature is a point geometry that is assigned to the grid element closest to the actual outfall location.

tailing_cells

Table of data that stores the rating tables for individual inlets. This data is imported and exported from SWMMFLORT.DAT.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Id for individual inlets.
thickness	REAL	Tailings depth or thickness. (ft or m)

tolspatial

Table of data that stores the depth assigned to individual polygons.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
tol	REAL	Depth associated with a storage value for individual grid elements.
geom	POLYGON	Polygon geometry.

tolspatial_cells

Table of values that join the tolspatial polygons to grid elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
area_fid	INTEGER	Id field from the tolspatial layer.
grid_fid	INTEGER	Id of the grid element spatially joined to the tolspatial polygon.

trigger_control

Table of data that lists a layer and sets a repaint control switch that is linked to the schematization buttons so that the layer is repainted when the layers are schematized.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Layer name.
enabled	INTEGER	Switch to enable trigger.

user_1d_domain

Table of data assigned for a 1d layer. This table is not currently used by the plugin.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
geom	POLYGON	Polygon geometry for a 1 D layer.

user_bc_lines

Table of data for the boundary control polylines in the user layers. Polyline features that define an inflow or outflow boundary control.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
type	TEXT	Inflow or outflow type.
geom	LINESTRING	Polyline geometry for an inlet or outlet feature.

user_bc_points

Table of data for the boundary control points in the user layers. Point features that define an inflow or outflow boundary control. This data is schematized to the BC Cells layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
type	TEXT	Inflow or outflow.
geom	POINT	Point geometry for an inlet or outlet feature.

user_bc_polygons

Table of data for the boundary control polygons in the user layers. Polygon features that define an inflow or outflow boundary control. This data is schematized to the BC Cells layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
type	TEXT	Inlet or outlet.
geom	POLYGON	Polygon geometry for an inlet or outlet feature.

user_blocked_areas

Blocked areas table data for the Blocked Areas layer in the User Layer. This layer is used to calculate the Area and Width Reduction Factors. The polygons in this layer are typically building outlines.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
collapse	INTEGER	Building collapse switch
calc_arf	INTEGER	ARF reduction factor. A coefficient to reduce any ARF value generated by the plugin.
calc_wrf	INTEGER	WRF reduction factor. A coefficient to reduce any WRF value generated by the plugin.
geom	POLYGON	Polygons that represent buildings or other blocked features.

user_chan_n

Table of data that joins a natural cross section to a channel element. The data is saved and schematized to the Channel Tables. This table is edited by many processes:

• RAS imported

• Cross section editor

• Channel left bank layer

• Converter schematic to user

• Schematize user data

• Interpolation processes

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
user_xs_fid	INTEGER	Id of a cross-section feature to join to channel feature.
nxsecnum	INTEGER	Id of a channel cross section to join the data from the cross-section table to the channel element.
xsecname	TEXT	Cross section name.

user_chan_r

Table of data that stores channel geometry and joins a rectangular cross section to a channel element. The data is saved and schematized to the Channel Tables. This table is edited by many processes:

• Cross section editor

• Channel left bank layer

• Converter schematic to user

• Schematize user data

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
user_xs_fid	INTEGER	Id of a cross-section feature to join to channel feature.
bankell	REAL	Left bank elevation.
bankelr	REAL	Right bank elevation.
fcw	REAL	Cross-section width.
fcd	REAL	Cross-section depth.

user_chan_t

Table of data that stores channel geometry and joins a trapezoidal cross section to a channel element. The data is saved and schematized to the Channel Tables. This table is edited by many processes:

• Cross section editor

• Channel left bank layer

• Converter schematic to user

• Schematize user data

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
user_xs_fid	INTEGER	Id of a cross-section feature to join to channel feature.
bankell	REAL	Left bank elevation.
bankelr	REAL	Right bank elevation.
fcw	REAL	Cross-section bottom width.
fcd	REAL	Cross-section depth.
zl	REAL	Left bank side slope.
zr	REAL	Right bank side slope.

user_chan_v

Table of data that stores channel geometry and joins a variable cross section to a channel element. The data is saved and schematized to the Channel Tables. This table is edited by many processes:

• Cross section editor

• Channel left bank layer

• Converter schematic to user

• Schematize user data

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
user_xs_fid	INTEGER	Id of a cross-section feature to join to channel feature.
bankell	REAL	Left bank elevation.
bankelr	REAL	Right bank elevation.
fcd	REAL	Cross-section depth.
a1	REAL	Coefficient for variable area.
a2	REAL	Exponent for variable area.
b1	REAL	Coefficient for variable wetted perimeter.
b2	REAL	Exponent for variable wetted perimeter.
c1	REAL	Coefficient for variable top width.
c2	REAL	Exponent for variable top width.
excdep	REAL	Limiting depth for upper replacement curves.
a11	REAL	Upper coefficient for variable area.
a22	REAL	Upper exponent for variable area.
b11	REAL	Upper coefficient for variable wetted perimeter
b22	REAL	Upper exponent for variable wetted perimeter
c11	REAL	Upper coefficient for variable top width
c22	REAL	Upper exponent for variable top width

user_effective_impervious_area

A polygon layer of data that is intersected to the grid when infiltration calculator FCDMC method is used. The EFF * 0.01 is multiplied by the RTIMP.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Feature name.
eff	REAL	EFF value in 0 to 100.
geom	POLYGON	Correction value + will add elevation correction and – will subtract correction.

user_elevation_points

Table of data assigned to the Elevation Points layer. This layer is used to define elevation of levee crests or correct elevations for specific grid elements. This data is called by the Levee editor and the Correct Grid Elevation tools. Data processing is saved to the Levee and Grid layers.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Feature name.
elev	REAL	Elevation.
correction	REAL	Correction value + will add elevation correction and – will subtract correction.
membership	TEXT	All, Grid or Levee. Elevation or correction is applied to grid layer or levee feature based on membership.
geom	POINT	Geometry is a point representing a point of know elevation.

user_elevation_polygons

Table of data assigned to the Elevation Polygons layer. This layer is used to define elevation of levee crests or correct elevations for specific grid elements. This data is called by the Levee editor and the Correct Grid Elevation tools. Data processing is saved to the Levee and Grid layers.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of the feature.
elev	REAL	Elevation.
correction	REAL	Correction value + will add elevation correction and – will subtract correction.
membership	TEXT	All, Grid or Levee. Elevation or correction is applied to grid layer or levee feature based on membership.
geom	POLYGON	Geometry is a polygon representing an area of know elevation.

user_fpxsec

Table of data for the floodplain cross section user layer. This data is schematized to the Floodplain Cross Sections and Floodplain Cross Sections Cells layers.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
iflo	INTEGER	Flow direction.
name	TEXT	Cross-section name.
geom	LINESTRING	Geometry polyline.

user_infiltration_areas

Table of data for the infiltration user layer. This is a polygon layer digitized by the user to define spatially Green-Ampt, SCS curve number or Horton infiltration. The data from this layer is schematized to the Infiltration tables and layers.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of the polygon.
green_char	TEXT	C for channel F for floodplain.
hydc	REAL	Hydraulic conductivity.
soils	REAL	Capillary suction.
dtheta	REAL	Soil moisture deficit.
abstrinf	REAL	Initial abstraction.
rtimpf	REAL	Percent impervious.
soil_depth	REAL	Soil limiting depth.
soil_depth	REAL	Hydraulic conductivity channel.
scsn	REAL	Curve number.
fhorti	REAL	Horton initial infiltration.
fhortf	REAL	Horton final infiltration.
deca	REAL	Horton decay coefficient.
notes	TEXT	Notes.
geom	POLYGON	Polygon feature outlines variable infiltration areas.

user_left_bank

Data table for the left bank line. This data is schematized to the Channel Segments layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Channel segment name.
depinitial	REAL	Initial depth.
froudc	REAL	Channel limiting Froude.
roughadj	REAL	Roughness adjustment.
isedn	INTEGER	Sediment transport equation.
rank	INTEGER	Segment rank.
notes	TEXT	Notes
geom	LINESTRING	Geometry is a polyline.

user_levee_lines

Table of variables for the levee lines in the user layer. It is also coupled to the Elevation Points layer to create 3-D center lines of levee data. The Levee tool uses data from this layer to schematize the Levees layer. Levee failure data is also contained in this table.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Levee name.
elev	REAL	Crest elevation. (ft or m).
correction	REAL	Elevation correction. (ft or m).
failElev	LINESTRING	Elevation on the levee to initiate failure. (ft or m).
failDepth	REAL	Depth from highest grid element to initiate failure. (ft or m).
failMaxWidth	REAL	Maximum failure width. (ft or m).
failVRate	REAL	Vertical failure rate. (ft/hr or m/hr).
failhrate	REAL	Horizontal failure rate. (ft/hr or m/hr).
geom	LINESTRING	Multiline geometry.

user_model_boundary

Table of data assigned to the Computational Domain layer. Computational domain layer is used to outline the project boundary and set the cell size. This layer is intersected to the grid array to define the location of the grid elements in row and column form. The plugin defines the elements in column, row order. Element number 1 is the first cell of column 1 on the left. The numbering is by column top to bottom.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
cell_size	REAL	Grid element size. Must be an integer. (ft or m)
geom	POLYGON	Polygon of the boundary.

user_noexchange_chan_areas

User polygon areas applied to left banks as no exchange channel cells.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
notes	TEXT	Notes.
geom	POLYGON	Polygon no exchange cells.

user_reservoirs

Table of values that stores the data to be assigned as a reservoir node. This data is schematized to the Reservoirs layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Name of reservoir point.
wsel	REAL	Water surface elevation. (ft or m).
n_value	REAL	Replacement n value for grid elements within the reservoir.
use_n_value	INTEGER	Switch to use replacement n value. (0 or 1).
tailings	REAL	Tailings elevation. Should be lower than the wsel. (ft or m).
notes	TEXT	Notes.
geom	POINT	A point feature representing any location within the banks of the reservoir.

user_right_bank

A layer that can be used to create a right bank defined by a polyline.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
chag_seg_fid	INTEGER	Id of a specific channel segment.
notes	TEXT	Notes.
geom	LINESTRING	Polyline feature used to intersect grid elements for a right bank.

user_right_bank

Data table for the right bank line. This data is schematized to the Channel Segments layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
chan_seg_fid	REAL	Identifies the left bank line but not used.
notes	TEXT	Notes
geom	LINESTRING	Geometry is a polyline.

user_roughness

Table of data assigned to the Roughness layer. This layer can be used to set the roughness variable to individual cells or blocks of cells in the grid layer. It is not necessary to assign roughness data to this layer. The tool will calculate it from any polygon layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
n	REAL	Manning’s n.
code	TEXT	Notes.
geom	POLYGON	Polygon features of spatially variable roughness data.

user_spatial_froude

A layer used to create spatially variable limiting Froude polygons.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
Froude(froudefp)	REAL	Manning’s n.
code	TEXT	Notes.
geom	POLYGON	Polygon features of spatially variable roughness data.

user_spatial_shallown

A layer used to create spatially variable shallow n polygons.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
n {shallown}	REAL	Shallow Manning’s n.
code	TEXT	Notes.
geom	POLYGON	Polygon features of spatially variable spatial shallow n data.

user_spatial_tolerance

A layer used to create spatially variable tolerance or LID polygons.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
tolerance(tol)	REAL	Shallow Manning’s n.
code	TEXT	Notes.
geom	POLYGON	Polygon features of spatially variable spatial shallow n data.

user_streets

Table of data used to define the global data of street segments. This data is schematized to the Streets layer.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
name	TEXT	Street name.
n_value	REAL	Street Manning’s n value.
elevation	REAL	Street elevation.
curb_height	REAL	Curb height.
street_width	REAL	Street width.
notes	TEXT	Notes.
geom	LINESTRING	Polyline that represents a single street segment.

user_struct

Table of data used to define hydraulic structure polylines. The polylines sole purpose is to define the inlet node and outlet node. All other data is stored in Hydraulic Structures tables. These tables are not visible to the user. They are edited via the Structure Editor widget.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
geom	LINESTRING	Polyline used to define a straight line between the inlet and outlet of a hydraulic structure. It does not reflect the exact location of the structure.

user_swmm_conduits

The user layer that stores storm drain conduit data. This data is written to the schematic layers.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
conduit_name	TEXT	Name of the conduit.
conduit_inlet	TEXT	Name of the inlet node.
conduit_outlet	TEXT	Name of the outlet node.
conduit_length	REAL	Length of the conduit.
conduit_manning	REAL	Roughness of the conduit.
conduit_inlet_offset	REAL	Offset height of conduit from inlet node invert elevation.
conduit_outlet_offset	REAL	Offset height of conduit from outlet node invert elevation.
conduit_init_flow	REAL	Initial flow.
conduit_max_flow	REAL	Max flow.
losses_inlet	REAL	Inlet loss coefficient.
losses_outlet	REAL	Outlet loss coefficient.
losses_average	REAL	Average loss coefficient.
losses_flapgate	TEXT	Flapgate.
xsections_shape	TEXT	Cross section shape.
xsections_max_depth	TEXT	Maximum depth or diameter.
xsections_geom2	REAL	Geom 2
xsections_geom3	REAL	Geom 3
xsections_geom4	REAL	Geom 4
xsections_barrels	INTEGER	Number of barrels.
notes	TEXT	Notes.
geom	LINESTRING	polyline geometry.

user_swmm_nodes

The user layer that stores storm drain inlet, junction and outfall data. This data is written to the schematic layers.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid	INTEGER	Grid element number.
sd_type	TEXT	Inlet, junction, or outfall.
name	TEXT	Node name. Use “i” or “I” for nodes that act as inlets or manholes.
intype	INTEGER	Inlet type 1 to 5. 1, and 2 are curb and gutter, 3 is grate, 4 is rating table or generalized culvert equation, 5 is manhole.
external_inflow	INTEGER	Switch to turn external inflow on or off. (0 or 1).
junction_nvert_elev	REAL	Junction invert elevation.
max_depth	REAL	node maximum depth from rim elevation to invert elevation.
init_depth	REAL	Initial flow depth at the node.
surcharge_depth	REAL	Depth or weight related to the manhole cover.
ponded_area	REAL	Ponded area.
outfall_invert_elev	REAL	Invert elevation of the outfall.
outfall_type	TEXT	Outfall type: free, fixed stage, tidal, time series.
tidal_curve	TEXT	Tidal curve name or id to link the node to a tide table.
time_series	TEXT	Time series name or id to link the node to a time series flow control.
flapgate	TEXT	Outfall flapgate.
swmm_length	REAL	Length of a curb opening or perimeter of a grate or manhole opening.
swmm_width	REAL
swmm_height	REAL	Rim elevation.
swmm_coeff	REAL	Grid element elevation.
swmm_feature	INTEGER	Grid element to rim elevation difference.
curbheight	REAL	Notes
swmm_clogging_factor	REAL	Inlet or junction point.
swmm_time_for_clogging	REAL
swmm_allow_discharge	TEXT
water_depth	REAL
rt_fid	INTEGER
rt_name	TEXT
outf_flo	INTEGER
invert_elev_inp	REAL
max_depth_inp	REAL
rim_elev_inp	REAL
rim_elev	REAL
ge_elev	REAL
difference	REAL
notes	TEXT
geom	POINT

user_swmm_orifices

The user layer that stores storm drain orifice data. This data is written to the schematic layers.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
orifice_name	TEXT	Name of the conduit.
orifice_inlet	TEXT	Name of the inlet node.
orifice_outlet	TEXT	Name of the outlet node.
orifice_type	TEXT	Orifice type
orifice_crest_height	REAL	Height of the orifice crest.
orifice_disch_coeff	REAL	Discharge coefficient.
orifice_flap_gate	TEXT	Flapgate
orifice_open_close_time	REAL	Time that orifice opens.
orifice_shape	TEXT	Shape of the orifice opening.
orifice_height	REAL	Orifice opening height.
orifice_width	REAL	Orifice opening width.
geom	LINESTRING	Polyline geometry.

user_swmm_pumps

The user layer that stores storm drain pump data. This data is written to the schematic layers.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
pump_name	TEXT	Name of the conduit.
pump_inlet	TEXT	Name of the inlet node.
pump_outlet	TEXT	Name of the outlet node.
pump_curve	TEXT	Name of the pump curve.
pump_init_status	Text	On or Off initial status.
pump_startup_depth	REAL	Startup depth.
pump_shutoff_depth	REAL	Shutoff depth.
geom	LINESTRING	Polyline geometry.

user_swmm_weirs

The user layer that stores storm drain weirs. This data is written to the schematic layers.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
weir_name	TEXT	Name of the conduit.
weir_inlet	TEXT	Name of the inlet node.
weir_outlet	TEXT	Name of the outlet node.
weir_type	TEXT	Orifice type
weir_crest_height	REAL	Height of the orifice crest.
weir_disch_coeff	REAL	Discharge coefficient.
weir_flap_gate	TEXT	Flapgat.e
weir_end_contrac	TEXT	End contraction.
weir_end_coeff	REAL	End coefficient
weir_shape	TEXT	Weir shape.
weir_height	REAL	Weir height.
weir_length	REAL	Weir length.
weir_side_slope	REAL	Weir side slope.
geom	LINESTRING	Polyline geometry.

user_xsec_n_data

User cross section data including cross section number and station elevation pairs.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
chan_n_nxsecnum(nxsecum)	INTEGER	Channel cross section number.
xi	REAL	Cross section station.
yi	REAL	Cross section elevation.

user_xsections

Table of data assigned to Cross Sections layer. These cross sections are schematized to the Channel Cross Sections layer. The data in this layer is used by the User Cross Sections Editor to define the location of cross sections and assign them to the left bank elements.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
fcn	REAL	Manning’s n.
type	TEXT	Natural, Rectangular, Trapezoidal, Variable Area.
name	TEXT	Cross section name.
notes	TEXT	Notes.
geom	LINESTRING	A polyline that represents the location of a cross section.

wstime

Table of data assigned to the Calibration Data layers. This data is imported from and exported to the WSTIME.DAT file.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Grid element id of the cell.
wselev	REAL	Water surface elevation.
wstime	REAL	Time at which the elevation occurs.
geom	POINT	Point feature reflecting a known location of elevation of water.

wsurf

Table of data assigned to the Calibration Data layers. This data is imported from and exported to the WSURF.DAT file.

Field Name	Field Type	Description
Fid	INTEGER	Unit fid is unique and not associated with the grid id.
grid_fid	INTEGER	Grid element id of the cell.
wselev	REAL	Max water surface elevation.
geom	POINT	Point of known water surface elevation.

xsec_n_data

Cross section data for the schematic data. This data is written to the XSEC.DAT file when the project is exported.

Field Name	Field Type	Description
fid	INTEGER	Unit fid is unique and not associated with the grid id.
chan_n_nxsecnum	INTEGER	Channel cross section number.
xi	REAL	Cross section station.
yi	REAL	Cross section elevation.

Appendix B FLO-2D Plugin Error Codes

Errors

Type	Code	Message	Details
ERROR	110618.1828	Could not save FLO-2D parameters!
ERROR	110618.1816	Could not save FLO-2D parameters!!
ERROR	101218.1535	exporting CONT.DAT or TOLER.DAT failed!
ERROR	101218.1541	exporting MANNINGS_N.DAT or TOPO.DAT failed!
ERROR	101218.1542	exporting INFLOW.DAT failed!
ERROR	101218.1543	exporting OUTFLOW.DAT failed!
ERROR	101218.1543	exporting RAIN.DAT failed!
ERROR	101218.1558	exporting RAINCELL.DAT failed!
ERROR	101218.1559	exporting INFIL.DAT failed!
ERROR	101218.1544	exporting EVAPOR.DAT failed!
ERROR	101218.1623	exporting CHAN.DAT failed!
ERROR	101218.1607	exporting XSEC.DAT failed!
ERROR	101218.1608	exporting HYSTRUC.DAT failed!
ERROR	101218.1609	exporting STREET.DAT failed!
ERROR	101218.161	exporting ARF.DAT failed!
ERROR	101218.1611	exporting MULT.DAT failed!
ERROR	101218.1539	exporting TOLSPATIAL.DAT failed!
ERROR	101218.1612	exporting SED.DAT failed!
ERROR	101218.1614	exporting LEVEE.DAT failed!
ERROR	101218.1613	exporting FPXSEC.DAT failed!
ERROR	101218.1616	exporting BREACH.DAT failed!
ERROR	101218.1617	exporting FPFROUDE.DAT failed!
ERROR	101218.1901	exporting SHALLOWN_SPATIAL.DAT failed!
ERROR	101218.1618	exporting SWMMFLO.DAT failed!
ERROR	101218.1619	exporting SWMMFLORT.DAT failed!
ERROR	101218.162	exporting SWMMOUTF.DAT failed!
ERROR	101218.1621	exporting WSURF.DAT failed!
ERROR	101218.1622	exporting WSTIME.DAT failed!
ERROR	170618.0611	construction of INP dictionary failed!
ERROR	170618.0701	couldn’t create a [LOSSES] group from storm drain .INP file!
ERROR	170618.0704	couldn’t create a [XSECTIONS] group from storm drain .INP file!
ERROR	170618.07	couldn’t create a [OUTFALLS] group from storm drain .INP file!
ERROR	170618.0701	couldn’t create a [JUNCTIONS] group from storm drain .INP file!
ERROR	060319.1604	Evaluation of ARFs and WRFs failed! Please check your Blocked Areas User Layer.
ERROR	060319.1606	Evaluation of ARFs and WRFs failed! Please check your Blocked Areas User Layer.
ERROR	051218.2035	Green-Ampt infiltration failed while intersecting soil layer with grid.
ERROR	51218.2001	Green-Ampt infiltration failed!
ERROR	140119.1715	Green-Ampt infiltration failed!
ERROR	40319.1921	Adding features to Storm Drain Nodes failed!
ERROR	21019.0629	update of Breach Global Data failed!
ERROR	40219.2015	update of Individual Breach Data failed!
ERROR	130219.0755	update of fragility curves failed!
ERROR	200618.0707	assignment of value failed!
ERROR	200618.0705	assignment of value from conduits users layer failed!
ERROR	200618.0631	assignment of value failed!
ERROR	310718.1942	error populating control variables dialog.
ERROR	110618.1806	Could not save FLO-2D parameters!
ERROR	130618.165	Hazus layers loading failed!
ERROR	130618.1715	Hazus layers loading failed!
ERROR	80618.0456	Uniformization of field values failed!
ERROR	150618.0235	Error while computing buildings statistics!
ERROR	80618.0456	Uniformization of field values failed!
ERROR	40219.2015	update of Individual Breach Data failed!
ERROR	20219.0812	couldn’t save inlets/junction into User Storm Drain Nodes!
ERROR	100618.0846	error while loading outfalls components!
ERROR	210618.1702	error assigning outfall values!
ERROR	40319.1915	Converting Schematic SD Inlets to User Storm Drain Nodes failed!
ERROR	51218.1146	couldn’t load point or/and line layers!
ERROR	51218.0559	there are not defined or visible point layers to select ‘inlets/junctions’ components!
ERROR	51218.06	there are not defined or visible point layers to select outfall components!
ERROR	51218.0601	there are not defined or visible line layers to select conduits components!
ERROR	70618.0451	creation of Storm Drain Nodes (Inlets) layer failed!
ERROR	70618.0454	creation of Storm Drain Nodes (Outfalls) layer failed!
ERROR	70618.05	creation of Storm Drain Conduits User layer failed!
ERROR	290718.1934	error while displaying elevation of cell + fid
ERROR	60319.1607	Assigning grid elevation aborted! Please check your input layers.
ERROR	60319.1608	Evaluation of ARFs and WRFs failed! Please check your Blocked Areas User Layer.
ERROR	60319.1609	Replacing duplicated ARFs and WRFs failed!
ERROR	110618.1818	Could not read infiltration global parameters!
ERROR	271118.1638	error schematizing infiltration!
ERROR	51218.1839	Green-Ampt infiltration failed! Please check data in your input layers.
ERROR	40219.2004	assignment of Individual Breach Data failed!
ERROR	210119.0626	assignment of Breach Global Data failed!
ERROR	40219.2004	assignment of Individual Breach Data failed!
ERROR	130219.0746	Saving of Fragility Curve Data failed!
ERROR	100219.0646	assignment of Individual Multiple Channels Data failed!
ERROR	310818.0824	error populating export storm drain INP dialog.
ERROR	80618.044	reading SWMM input file failed!”
ERROR	60319.161	Creating Storm Drain Nodes layer failed!	Please check your SWMM input data. Are the nodes coordinates inside the computational domain?
ERROR	50618.1804	creation of Storm Drain Conduits layer failed!
ERROR	70618.0851	error while exporting [JUNCTIONS] to .INP file!
ERROR	70618.1619	error while exporting [OUTFALLS] to .INP file!
ERROR	70618.162	error while exporting [CONDUITS] to .INP file!
ERROR	70618.1621	error while exporting [XSECTIONS] to .INP file!
ERROR	70618.1622	error while exporting [LOSSES] to .INP file!
ERROR	70618.1623	error while exporting [COORDINATES] to .INP file!
ERROR	160618.0634	couldn’t export .INP file!
ERROR	130718.0831	schematized dialog failed to show!
ERROR	60319.1611	Schematizing left bank lines failed!
ERROR	280718.1054	Schematizing right bank lines failed!
ERROR	101218.1607	exporting XSEC.DAT failed!
ERROR	260618.0416	couldn’t read CHANBANK.DAT or reassign right bank coordinates!
ERROR	50818.0618	couldn’t process HYCHAN.OUT!
ERROR	240718.0359	Couldn’t join left and right banks!
ERROR	80618.0456	couldn’t update the inlets/junctions component using [SUBCATCHMENT] group from storm drain .INP file!
ERROR	60319.1631	Interpolation of channel n-values failed!

Warnings

Type	Code	Message	Details
WARNING	060319.1831	Levee user lines required!
WARNING	060319.1806	Assigning values aborted! Please check your crest elevation source layers.
WARNING	060319.1808	File DEPFP.OUT is needed for the Hazus flooding analysis. It is not in the current project directory:	project_dir
WARNING	060319.1808	Please choose at least one conversion source!
WARNING	060319.1811	Please choose at least one conversion source!
WARNING	060319.1612	Can’t import channels!.	CHAN.DAT doesn’t exist.
WARNING	060319.1632	Can’t import channels!.	CHANBANK.DAT doesn’t exist.
WARNING	010219.0742	Import channels failed!. Check CHAN.DAT and CHANBANK.DAT files.	Maybe the number of left and righ bank cells are different.
WARNING	010219.0742	Import channels failed!. Check CHAN.DAT and CHANBANK.DAT files.	Maybe the number of left and righ bank cells are different.
WARNING	060319.1613	Export to “”GUTTER.DAT failed!
WARNING	060319.1615	Assignment of building areas to building polygons. Not implemented yet!
WARNING	060319.1633	You need at least 2 cross-sections crossing left bank line!
WARNING	060319.1618	Error while creating schematic Left banks!
WARNING	220718.0741	Error while creating schematic Right banks!
WARNING	180319.1431	Schematizing of inflow aborted!
WARNING	180319.1434	Schematizing of outflow aborted!
WARNING	060319.1641	Element “” + elem + “” has a cross section of type ‘R’ without data!
WARNING	060319.1641	Element “” + elem + “” has a cross section of type ‘V’ without data!
WARNING	060319.1641	Element “” + elem + “” has a cross section of type ‘T’ without data!
WARNING	060319.1626	Element “” + elem + “” has a cross section of type ‘N’ without data!
WARNING	060319.1627	Probing grid elevation failed! Please check your raster layer.
WARNING	060319.1629	Cell size must be positive. Change the feature attribute value in Computational Domain layer.
WARNING	060319.1630	Cell size must be positive. Change the feature attribute value in Computational Domain layer or default cell size in the project settings.
WARNING	060319.1632	Assignment of building areas to building polygons. Not implemented yet!
WARNING	060319.1650	Evaluation of buildings adjustment factor failed! Please check your Building Areas (Schematic layer).
WARNING	060319.1612	Please choose at least one crest elevation source!’
WARNING	060319.1653	Couldn’t create new database {}””.format(gpkg_path)
WARNING	060319.1822	Error processing geometry of inlet/junction ‘”” + name
WARNING	060319.1656	Inlet/junction “” + name + “” is faulty!
WARNING	060319.1657	The following inlets/junctions are outside the computational domain!	outside_inlets
WARNING	060319.1658	Error processing geometry of outfall’”” + name
WARNING	060319.1659	Outfall “” + name + “” is faulty!
WARNING	060319.1700	The following outfalls are outside the computational domain!	outside_outfalls
WARNING	060319.1701	Error processing geometry of conduit ‘”” + conduit_name
WARNING	060319.1702	Conduit “” + name + “” is faulty!
WARNING	060319.1703	str(no_in_out) + “” conduits have no inlet and/or outlet!
WARNING	060319.1705	Process failed on schematizing floodplain crosssections!
WARNING	060319.1706	Cell size must be positive. Change the feature attribute value in Computational Domain layer.
WARNING	060319.1707	Cell size must be positive. Change the feature attribute value in Computational Domain layer or default cell size in the project settings.
WARNING	060319.1709	Creating grid aborted! Please check Computational Domain layer.
WARNING	060319.1710	Probing grid elevation failed! Please check your raster layer.
WARNING	060319.1712	Calculating grid elevation aborted! Please check elevation points layer.
WARNING	060319.1713	Calculating sampling of grid field aborted! Please check grid layer or input points layer.
WARNING	060319.1714	Please choose at least one elevation source!
WARNING	060319.1715	There are no roughness polygons! Please digitize them before running tool.
WARNING	060319.1716	Assigning roughness aborted! Please check roughness layer.
WARNING	060319.1717	Evaluation of spatial Froude failed! Please check your Froude Areas (Schematic layer).
WARNING	060319.1719	Evaluation of spatial shallow-n failed! Please check your Shallow-n Areas (Schematic layer).
WARNING	060319.1720	Evaluation of spatial gutter failed! Please check your Gutter Areas (Schematic layer).
WARNING	060319.1721	Selection of no-exchange cells failed! Please check your No-xchange Cells (Tables layer).
WARNING	060319.1724	Calculating SCS Curve Number parameters failed! Please check data in your input layers.’
WARNING	060319.1835	Importing Rainfall Data failed! ({0})	{1}””.format(e.errno, e.strerror)
WARNING	060319.1726	Probing grid elevation failed! Please check your raster layer.
WARNING	060319.1727	Cell size must be positive.	Change the feature attribute value in Computational Domain layer.
WARNING	060319.1728	Cell size must be positive.	Change the feature attribute value in Computational Domain layer or default cell size in the project settings.
WARNING	060319.1729	SWMM input file	“” + swmm_file + “” has no coordinates defined!
WARNING	060319.1730	SWMM input file	“” + swmm_file + “” has no coordinates defined!
WARNING	060319.1731	Storm Drain point ‘”” + name + “”’ outside domain!
WARNING	060319.1732	The following conduit inlets were not found!	conduit_inlets_not_found
WARNING	060319.1733	The following conduit outlets were not found!	conduit_outlets_not_found
WARNING	060319.1734	str(no_in_out_conduits) + “” conduits have no inlet and/or outlet! The value ‘?’ was assigned to them.
WARNING	060319.1736	Schematizing of streets aborted! Please check Street Lines layer.
WARNING	060319.1742	Schematizing failed while creating cross-sections!
WARNING	060319.1743	Schematizing failed while processing attributes!
WARNING	060319.1745	Schematizing failed while preparing interpolation table!
WARNING	060319.1746	There are no user cross sections defined.
WARNING	060319.1747	CHANRIGHTBANK.EXE execution is disabled!
WARNING	060319.1748	Can’t import channels!.	CHAN.DAT doesn’t exist
WARNING	060319.1749	There are no user cross sections defined!
WARNING	060319.1751	Right bank cells selection failed!
WARNING	060319.1752	Right bank cells calculated
WARNING	060319.1756	Interpolation of cross-sections values failed!
WARNING	060319.1757	Channel n-values interpolated into CHAN.DAT file!
WARNING	060319.1758	Interpolation of channel n-values could not be performed!
WARNING	060319.1759	Interpolation of channel n-values failed!

Info Dialogs

Type	Details
show_info	(“Files read by this project:” + self.files_used + “Files not found or empty:” + self.files_not_used)
show_info	(“Files read by this project:” + self.files_used + Files not found or empty:” + self.files_not_used)
show_info	(“Files exported:” + self.files_used)
show_info	(‘Values assigned to the Schematic Levees layer!’)
show_info	(‘Converting User Layers to Schematic Layers finished!)
show_info	(‘gutter globals is empty’)show_info,(‘gutter globals filled’)show_info,(‘head’)show_info,”(‘globals width%, height%, n_value%’ % (head[0], head[1], head[2]))
show_info	(‘after rows’)
show_info	(‘opened’)
show_info	(“fid %s, width %s, height %s , heign_value %s, direction %s” % (fid, width, height, n_value, direction))
show_info	(‘next line’)
show_info	(“WARNING 040319.0521: The following cell(s) with inlet/junction of type 4 “ +
show_info	(“Inflows schematized!”)
show_info	(“Outflows schematized!”)
show_info	(“Run 0.4 min debug”)
show_info	(‘Calculating elevation finished!’)
show_info	(‘Spatial tolerance values calculated!’)
show_info	(‘Perform average grid elevation interception.’)
show_info	(‘Perform elevation from shapefile.’)
show_info	(‘Flow depths were calculated.’)
show_info	(‘Perform sample from raster.’)
show_info	(‘Perform interpolate from DTM points.’)
show_info	(‘Compute from area reduction factors.’)
show_info	(“Buildings statistics can be seen in ‘Buildings Statistics’ table.” +
show_info	(‘Connection!’)
show_info	(‘TABLE CHANGED in ‘ + str(I) + ‘ ‘ + str(J))
show_info	(“WARNING 020219.1836: The following “ + str(no_rt) +
show_info	(‘Connection!’)
show_info	(‘Sampling done.’)
show_info	(‘Sampling done.’)
show_info	(“Importing Storm Drain nodes and conduits data finished!” +
show_info	(“Importing Storm Drain conduits data finished!” +
show_info	(“Importing Storm Drain nodes data finished!” +
show_info	(“Floodplain cross-sections schematized!”)
show_info	(‘Grid created!’)
show_info	(‘Calculating elevation finished!’)
show_info	(“Sampling of grid field ‘” + grid_field + “’ finished!”)
show_info	(‘Assigning grid elevation finished!’)
show_info	(‘Assigning roughness finished!’)
show_info	(‘ARF and WRF values calculated!’)
show_info	(‘Spatial tolerance values calculated!’)
show_info	(‘Spatial Froude values calculated!’)
show_info	(‘Spatial shallow-n values calculated!’)
show_info	(‘Spatial gutter values calculated!’)
show_info	(‘No-exchange areas selected!’)
show_info	(“WARNING 150119.0354 Calculating Green-Ampt parameters finished, but”)
show_info	(‘Calculating Green-Ampt parameters finished!’)
show_info	(‘Calculating SCS Curve Number parameters finished!’)
show_info	(‘Importing Rainfall Data finished!’)
show_info	(‘Exporting Rainfall Data finished!’)
show_info	(‘Importing predefined time series finished!’)
show_info	(“Schematizing of Storm Drains finished!”)
show_info	(“No nodes or conduits were defined in file + swmm_file)
show_info	(“Importing Storm Drain data finished!”)
show_info	(swmm_file + file saved with:)
show_info	(“Inlets saved to ‘Storm Drain-Inlets’ User Layer! Schematize it before saving into SWMMFLO.DAT.”)
show_info	(“Streets schematized!”)
show_info	(‘Importing Storm Drain input data finished!’)
show_info	(‘Updating SWMM input data finished!’)
show_info	(‘Left Banks, Right Banks, and Cross Sections schematized!’)
show_info	(“Files CHAN.DAT and XSEC.DAT saved.”)
show_info	(‘Interpolation of cross-sections values finished!’)
show_info	(‘Confluences schematized!’)

Bar Warning

Type	Message
bar_warn	Could not run simulation under current operation system!
bar_warn	Running simulation failed!
bar_warn	Could not find TOPO.DAT file! Importing GDS files aborted!’,| dur=3
bar_warn	Could not read HEC-RAS file!
bar_warn	There is no grid layer to identify.
bar_warn	There is no schematic cross-section data to display!
bar_warn	There is no evaporation data to display!
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	WARNING 060319.1809 There are not any polygon layers| selected (or visible)!
bar_warn	Could not compute Hazus Flooding Analysis!
bar_warn	Reading coordinates from SWMM input data failed!
bar_warn	Reading conduits from SWMM input data failed!
bar_warn	No time series fid for current outflow is defined.
bar_warn	No time series fid for rain defined.
bar_warn	Define a database connections first!
bar_warn	No data series for this inflow.
bar_warn	No time series data defined for that inflow.
bar_warn	No data series for this type of outflow.
bar_warn	Couldn’t find outflow fid={} and type={}’.format(fid, typ).
bar_warn	Schematized Channel Editor populated!
bar_warn	Schematized Channel Segments (left bank) Layer is empty!
bar_warn	Schematized Channel Segments (left bank) Layer is empty!
bar_warn	Could not save Channels data! Please check it
bar_warn	There are no Schematized Channel Cross Sections!
bar_warn	Schematized Channel Segments (left bank) Layer is empty!
bar_warn	There are no Schematized Channel Cross Sections!
bar_warn	There are not any polygon layers selected (or visible)
bar_warn	There are not any polygon layers selected (or visible)
bar_warn	There is no computational domain! Please digitize it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There are no raster layers in the project!
bar_warn	WARNING 060319.1628 There is no grid! Please create it before running tool.
bar_warn	WARNING 060319.1631 There is no grid. Please, create it before evaluating the tolerance values.
bar_warn	No inlets defined in ‘Storm Drain Nodes’ User Layer!
bar_warn	No rating table defined!
bar_warn	Could not import 3D levee lines data!
bar_warn	There are not any point layers selected (or visible)
bar_warn	Creating User Layers failed on Grid to Computational Domain conversion!
bar_warn	Creating User Layers failed on Grid to Roughness conversion!
bar_warn	Creating User Layers failed on Boundary Conditions conversion!
bar_warn	Creating User Layers failed on 1D Domain elements conversion!
bar_warn	Creating User Layers failed on Levees conversion!
bar_warn	Creating User Layers failed on Floodplain cross-sections conversion!
bar_warn	Creating User Layers failed on Infiltration conversion!
bar_warn	There is no computational domain! Please digitize it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	No data was selected!
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There is no any user floodplain cross sections!
bar_warn	There is no Computational Domain! Please digitize it before running tool.
bar_warn	There is no computational domain! Please digitize it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	WARNING 060319.1711 There is no grid! Please create it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There are not any point layers selected (or visible)
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There is no grid. Please, create it before evaluating the reduction factors.
bar_warn	There is no any blocking polygons in “”Blocked Areas”” layer! Please digitize them before running tool.
bar_warn	There is no grid. Please, create it before evaluating the tolerance values.
bar_warn	There is no grid. Please, create it before evaluating the Froude values.
bar_warn	WARNING 060319.1718 There is no grid. Please, create it before evaluating the shallow-n values.
bar_warn	There is no grid. Please, create it before evaluating the shallow-n values.
bar_warn	There is no grid. Please, create it before evaluating the no-exchange cells.
bar_warn	Please define global infiltration method first!
bar_warn	Please define global infiltration method first!
bar_warn	Please define global infiltration parameters first!
bar_warn	Please define global infiltration method first!
bar_warn	Please define global infiltration method first!
bar_warn	Please define global infiltration method first!
bar_warn	Schematizing of infiltration failed! Please check user infiltration layers.
bar_warn	Importing Rainfall Data from ASCII files failed! Please check your input data.\nIs the .RFC file missing?
bar_warn	There is no h5py module installed! Please install it to run export tool.
bar_warn	Exporting Rainfall Data failed! Please check your input data.
bar_warn	Importing predefined time series failed! Please check your input data.
bar_warn	There is no computational domain! Please digitize it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There is no computational domain! Please digitize it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There is no computational domain! Please digitize it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	Vertical inlet opening is not allowed for {}!’.format(inlet_type))
bar_warn	There is no computational domain! Please digitize it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There are no storm drain components (inlets/outfalls) defined in layer Storm Drain Nodes (User Layers”
bar_warn	There is no computational domain! Please digitize it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	User Layer “”Storm Drain Nodes”” is empty! Import components from .INP file or shapefile, or schematize Storm Drains.
bar_warn	No oulets defined in ‘Storm Drain Nodes’ User Layer!
bar_warn	Could not save outfalls! Please check if they are correct.
bar_warn	User Layer “”Storm Drain Nodes”” is empty! Import components from .INP file or shapefile, or schematize Storm Drains.
bar_warn	No inlets defined in ‘Storm Drain Nodes’ User Layer!
bar_warn	Could not save Inlets! Please check if they are correct.
bar_warn	User Layer “”Storm Drain Conduits”” is empty! Import components from .INP file or shapefile, or schematize Storm Drains.
bar_warn	Could not save conduits! Please check if they are correct.
bar_warn	User Layer “”Storm Drain Conduits”” is empty!
bar_warn	There is no computational domain! Please digitize it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	Storm drain components not saved!
bar_warn	No rating table defined!
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There is no any user streets to schematize! Please digitize them before running tool.
bar_warn	Vertical inlet opening is not allowed for {}!’.format(inlet_type))
bar_warn	Schematizing of Storm Drains failed! Please check user Storm Drains Points layer.
bar_warn	Recalculation of Max Depth failed!
bar_warn	Importing Storm Drain input data failed! Please check your SWMM input data.
bar_warn	Updating SWMM input data failed! Please check Storm Drain data.
bar_warn	No rating table defined!
bar_warn	Too many columns to paste.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There are no User Left Bank lines! Please digitize them before running the tool.
bar_warn	There are no User Cross Sections! Please digitize them before running the tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There are no User Right Bank lines! Please digitize them before running the tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There are no Schematized Channel Segments (Left Banks) to export.
bar_warn	There are no Schematized Channel Cross Sections to export.
bar_warn	Could not run interpolation under current operation system!
bar_warn	Could not run CHANRIGHTBANK.EXE under current operation system!
bar_warn	CHANRIGHTBANK.EXE failed!
bar_warn	WARNING 060319.1754 There is no grid! Please create it before running tool.
bar_warn	WARNING 060319.1755 There are no cross-sections! Please create them before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	There is no grid! Please create it before running tool.
bar_warn	Could not run ‘CHAN N-VALUE INTERPOLATOR.EXE’ under current operation system!
bar_warn	There is no grid! Please create it before running tool.
bar_warn	WARNING 060319.1801 There is no grid! Please create it before running tool.
bar_warn	WARNING 060319.1802 There are no any user left bank lines! Please digitize them before running the tool.
bar_warn	WARNING 060319.1803 There are no any user cross sections! Please digitize them before running the tool.
bar_warn	All changes to this layer can be overwritten by changes in the User Layer.
bar_warn	ERROR 12117.0602
bar_warn	ERROR 121117.0544

Bar Error

Type	Message
bar_error	ERROR 060319.1604 Cell size is 0 - something went wrong! Does TOPO.DAT file exists or is empty?
bar_error	{} is NOT a GeoPackage!.format(gpkg_path)
bar_error	{} is NOT a GeoPackage!.format(self.gutils.path)
bar_error	ERROR while saving storm drain components from hydraulic layers!
bar_error	ERROR 280318.0530 Cross sections interpolation dialog could not be loaded!
bar_error	ERROR 280318.0528 Cross sections interpolation failed!

Bar Info

Type	Message
bar_info	Simulation started!, dur=3
bar_info	Loading last model cancelled, dur=3
bar_info	Import cancelled, dur=3
bar_info	Flo2D model imported, dur=3
bar_info	Flo2D model exported, dur=3
bar_info	HEC-RAS geometry data imported!
bar_info	Parameters saved!, dur=3
bar_info	Hazus Flooding Analysis performed
bar_info	Converting Schematic Layers to User Layers finished!
bar_info	Not implemented…
bar_info	Channel Profile tool not implemented for selected features.
bar_info	There is no inflow defined in the database…
bar_info	There is no outflow defined in the database…
bar_info	Channel data saved!, dur=3
bar_info	3D levee lines data imported!
bar_info	GeoPackage {} is OK .format(gpkg_path)
bar_info	GeoPackage {} is OK .format(self.gutils.path)
bar_info	No data was selected
bar_info	Schematizing of infiltration finished!
bar_info	There aren t cells with levees defined
bar_info	Individual Breach Data saved.
bar_info	Saving of Individual Breach Data failed!.
bar_info	Breach Global Data saved.
bar_info	Saving of Breach Global Data failed!.
bar_info	There aren t individual breach cells
bar_info	Individual Breach Data saved.
bar_info	Saving of Individual Breach Data failed!.
bar_info	Fragility curve data saved.
bar_info	Saving of Fragility Curve Data failed!.
bar_info	Individual Multiple Channels Data saved.
bar_info	Saving of Individual Multriple Channels Data failed!.
bar_info	Outfalls saved to Storm Drain-Outfalls User Layer!\n\nSchematize it before saving into SWMMOUTF.DAT.
bar_info	Conduits saved to Storm Drain-Conduits User Layer!\n\nSchematize it before saving into SWMMOUTF.DAT.
bar_info	Storm drain components (inlets, outfall, and/or conduits) from hydraulic layers saved.
bar_info	Schematizing of Storm Drains finished!
bar_info	Recalculation of Max Depth finished!
bar_info	CHAN.DAT file exported to + outdir, dur = 5
bar_info	CHAN.DAT file exported to + outdir, dur = 5
bar_info	XSEC.DAT model exported to + outdir, dur=5
bar_info	xsec.dat model exported to + outdir, dur=5
bar_info	HYCHAN.OUT file imported. Channel Cross Sections updated with max. surface water elevations and peak discharge data.
bar_info	Action cancelled, dur=3
