FLORunner

FLORunner allows you to batch run one or more FLO-2D projects in a controlled sequence.

  1. Select the project folder.

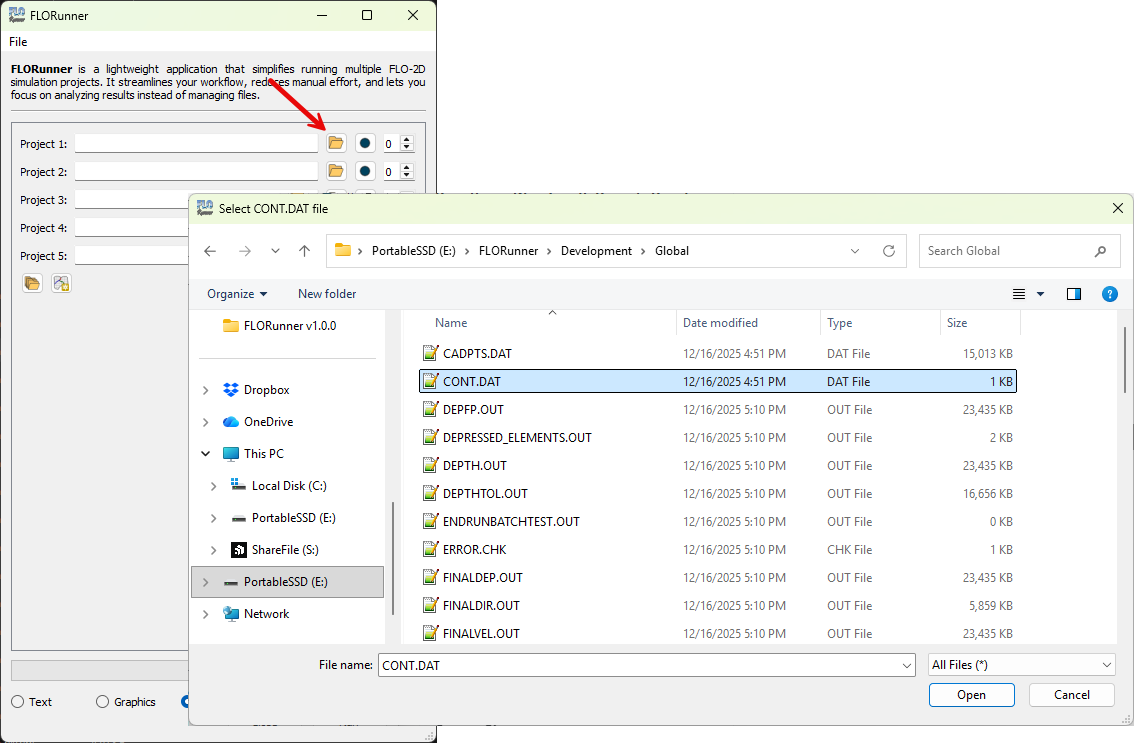

    Click the Folder button and select the CONT.DAT file located in the FLO-2D project directory.

    ../_images/select_cont.png

  2. Select multiple project folders (optional).

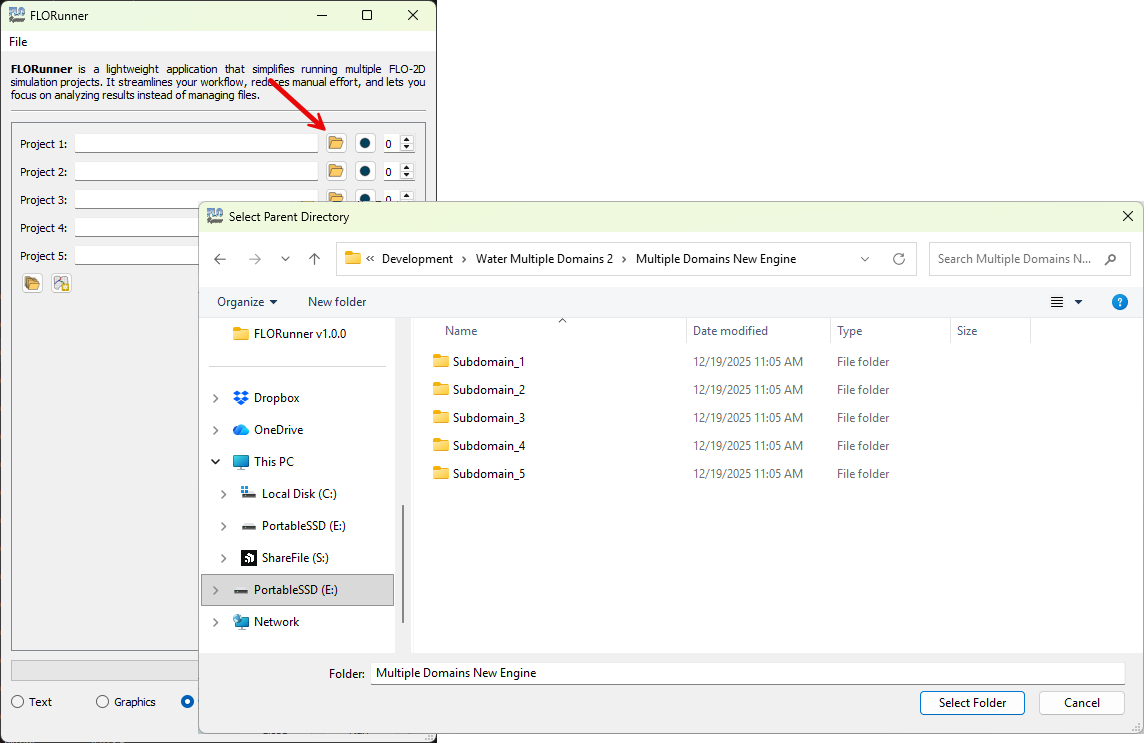

    Click the Multiple folders button to select directories containing multiple FLO-2D projects.

    ../_images/select_md.png

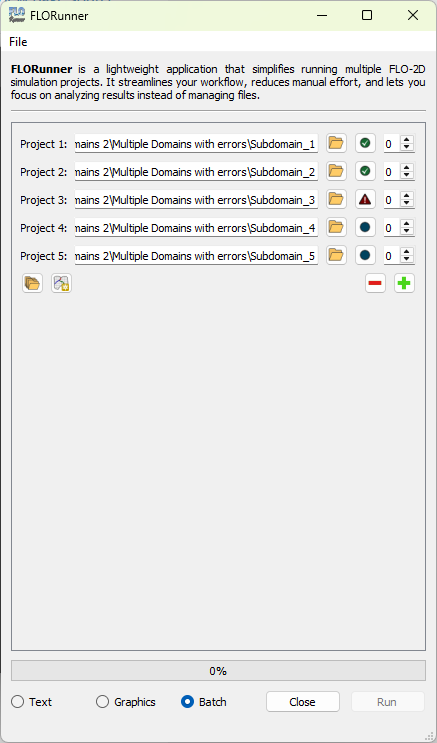

  3. Review detected projects.

    FLORunner automatically detects all projects and displays their current status.

    ../_images/selected_projects.png

    Note

    • Green check mark: project completed successfully.

    • Blue circle: project is on hold.

    • Red warning icon: project failed.

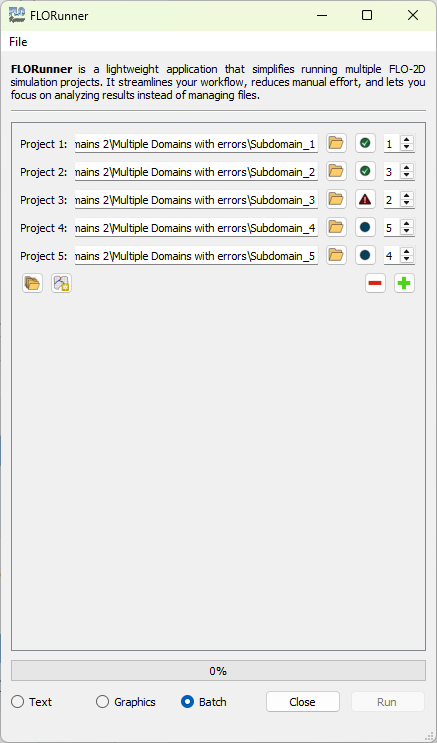

  4. Set the execution order.

    ../_images/selected_projects.png

    Note

    • Order numbers must be unique.

    • Projects with order 0 will not run.

  5. Run the simulations

    Click the Run button to execute the simulations in the specified sequence.

    • FLORunner automatically tracks and displays the progress and status of each simulation.

    • Simulations run silently in batch mode, without requiring user interaction between runs.

    • Each simulation starts automatically when the preceding simulation is complete.

    ../_images/florun003.png
