Storm Drain Plots

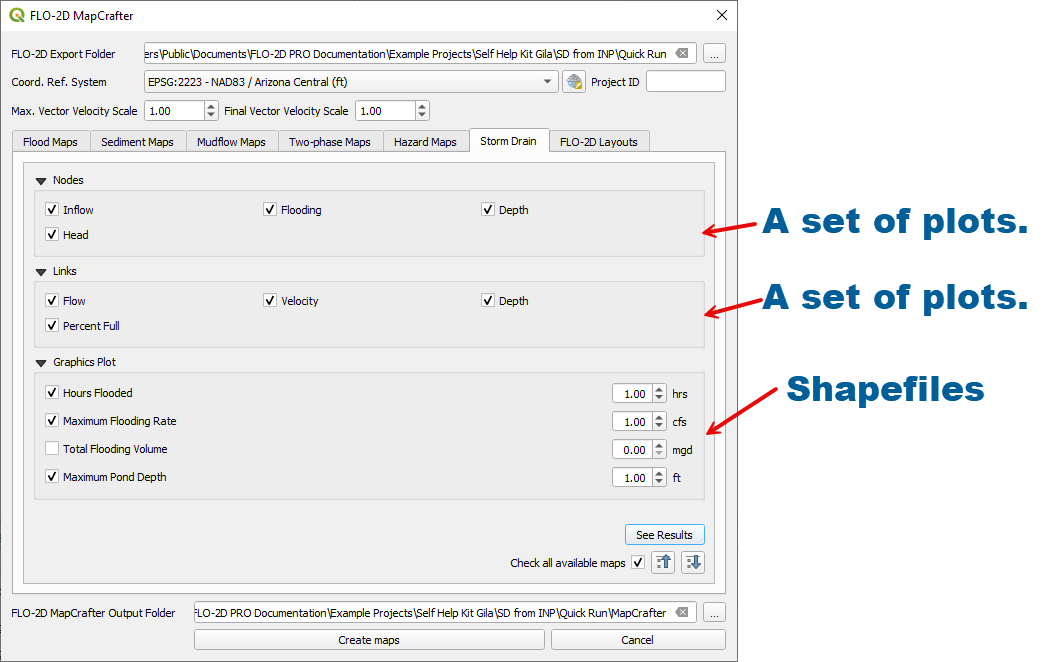

Use this tab of MapCrafter to create plots of different storm drain output data for individual nodes and links.

../../_images/sd_1.png

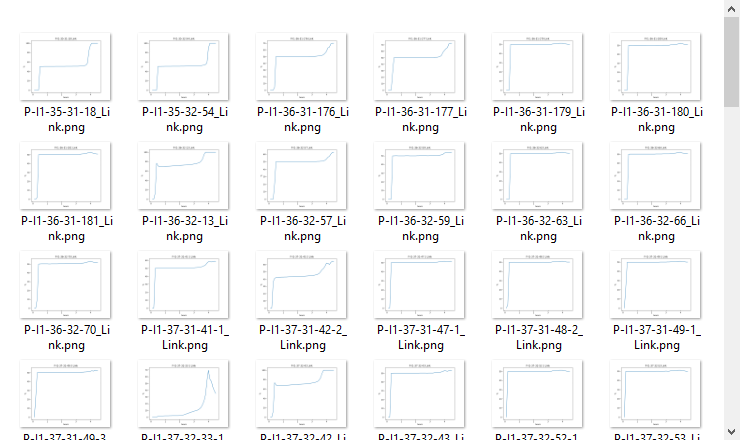

The plots are saved as *.png files in the MapCrafter folder, for example:

Project Folder/MapCrafter/Storm Drain/Links/Percent Full

../../_images/sd_2.png

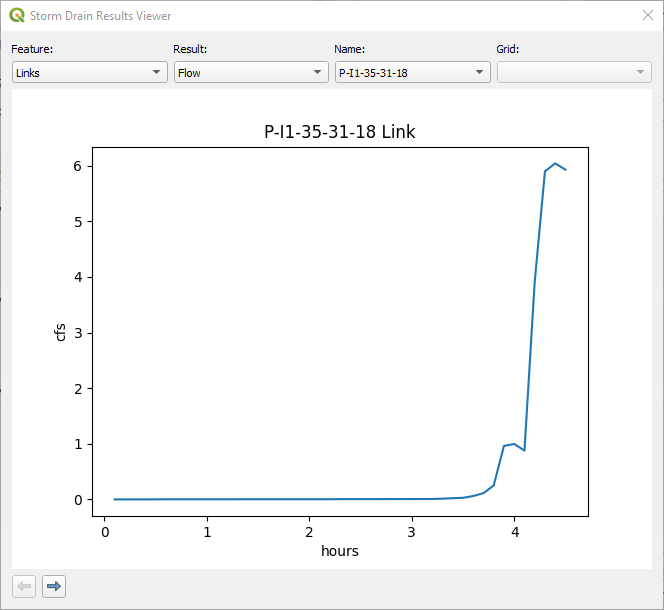

The See Results button will open a simple image viewer to rotate through the different views.

../../_images/sd_3.png
