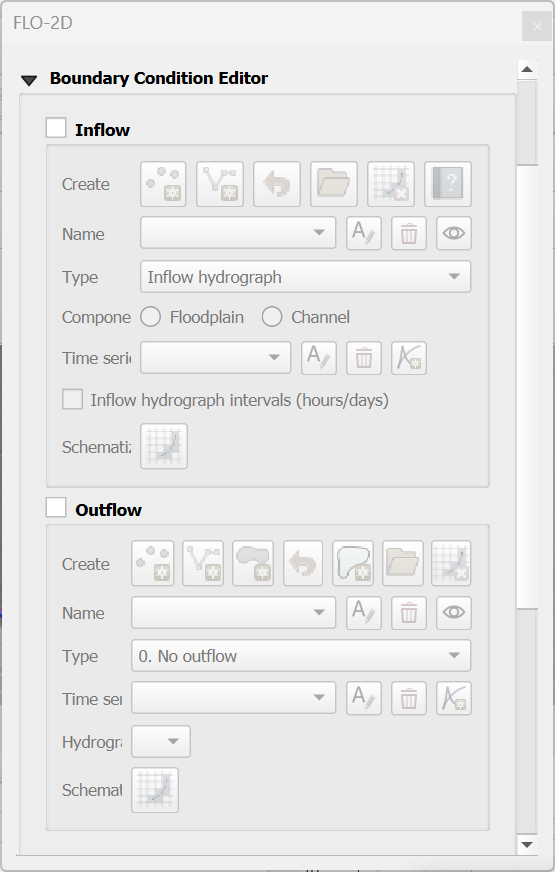

Boundary Condition Editor

The boundary condition editor is used to define the inflow and outflow boundaries. The data is written to the INFLOW.DAT and OUTFLOW.DAT files.

The new Boundary Condition Editor introduces several key updates, including:

• Separated the Inflow and Outflow Boundary Conditions into their respective groups.

• Separation of the Inflow and Outflow Boundary Condition schematize buttons.

• Button to delete the schematized data.

• Button to load existing INFLOW.DAT and OUTFLOW.DAT.

• Button to define an outflow for the whole grid boundary.

• Grouped Boundary Condition tables into their respective groups.

• Hide/show Boundary Condition layers.

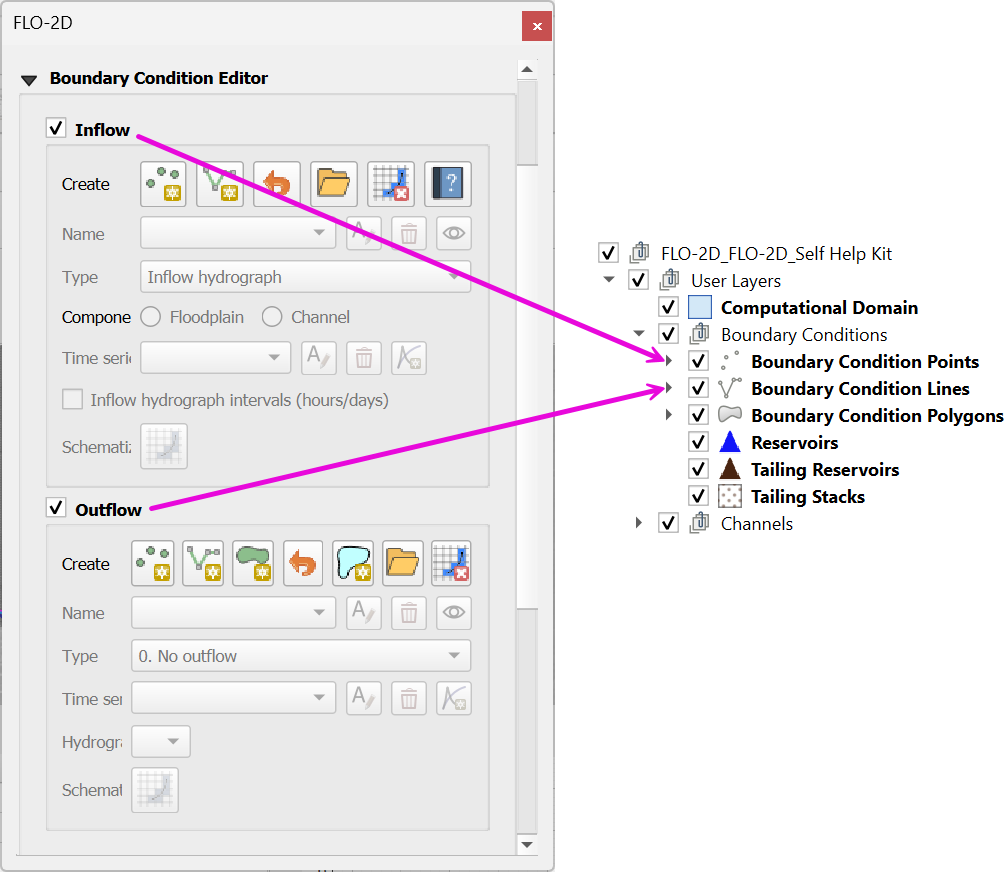

The Boundary Condition User Layers are only shown on the layer tree when the Inflow or Outflow Boundary Conditions are checked. See image below.

Note

Get a BC Training Package to learn how to correctly define boundaries for FLO-2D projects.

Contents

• Inflow Editor
  • Create Inflow Point
  • Create Inflow Line
  • Import an Inflow Data File
  • Assign Inflow Attributes Hydrographs
  • Zoom and Pan to Inflow Boundary Condition
  • Delete Selected Inflow Boundary Condition
  • Schematize the Data
  • Delete Schematized Data
• Outflow Boundary Editor
  • Normal Depth Boundary
  • Time-Stage Boundary
  • Stage-Discharge Boundary
  • Multiple Domain Boundary
  • Troubleshooting Outflow Boundaries
