Step 1: Download street center ines

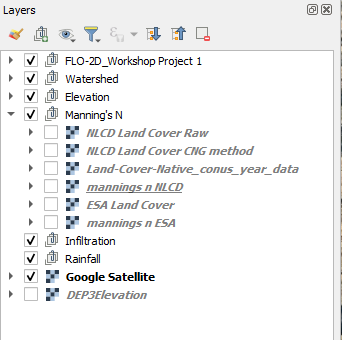

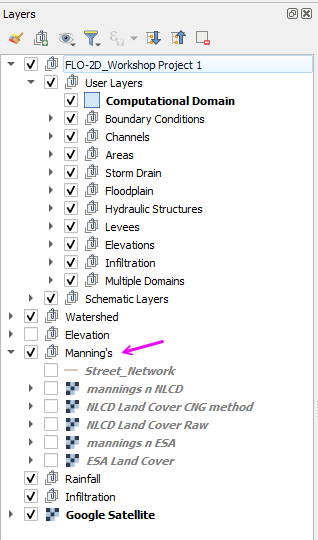

Move all Manning’s n Roughness related rasters into the Manning’s Group.

hydrow040a

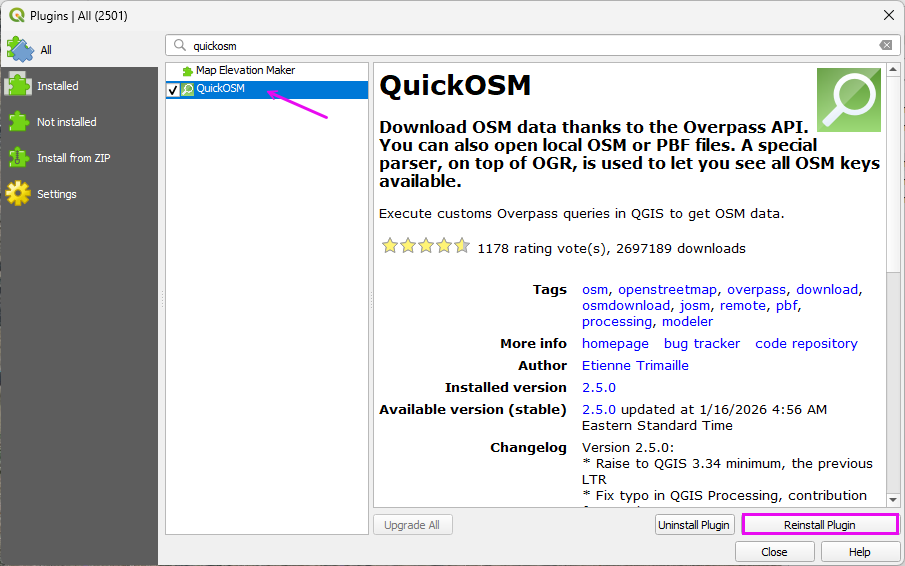

Open Plugins → Manage and Install Plugins and install QuickOSM (or OSM Downloader) if it is not already enabled.

hydrow042a

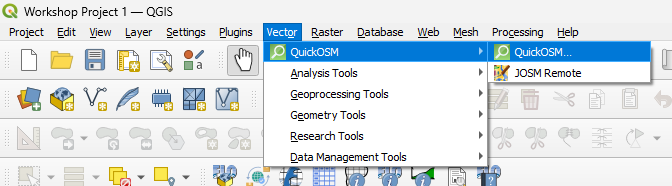

Open the tool:
Vector → QuickOSM → QuickOSM

hydrow042b

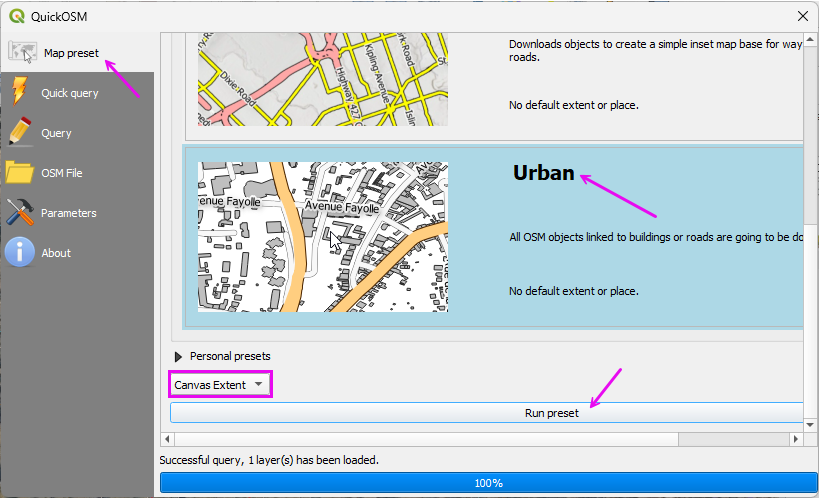

Use the Map Preset tab and select Urban for Streets and Buildings.
Use the current map canvas extent so the download matches the project domain.
Click Run Preset.

Note

if a timeout error occurs, run the preset again.

hydrow042c

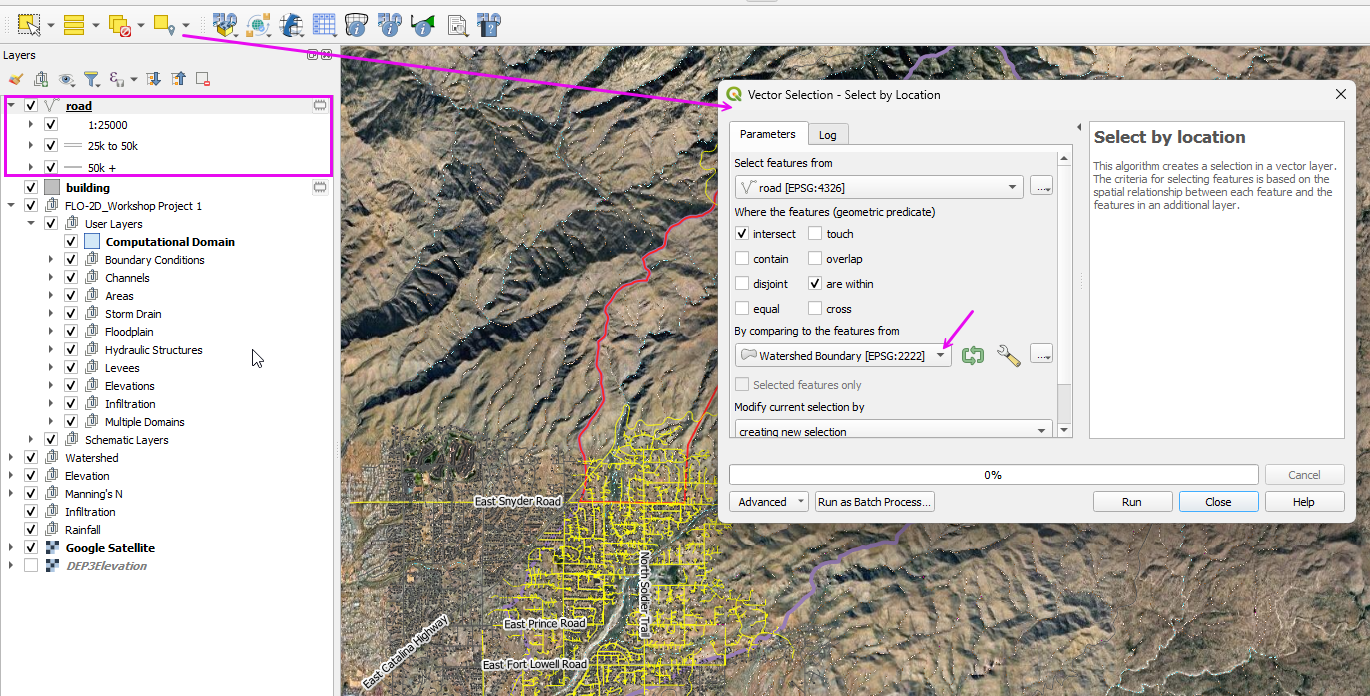

Select the streets that are inside the Watershed Boundary.
Run the Select by location tool.
Fill the fields as shown and click Run.

hydrow042d

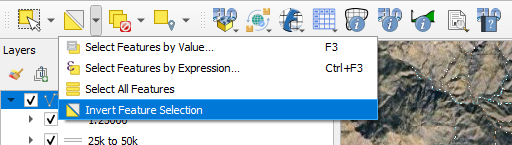

Invert the selection.

hydrow042e

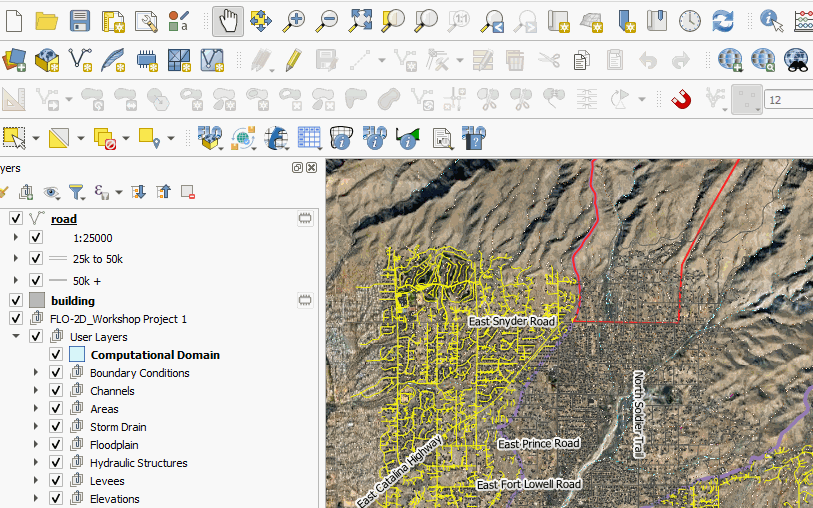

Toggle the editor.
Delete the Selected Streets.
Save the edits.
Toggle the editor off.

hydrow042f

Step 2: Re-project and Export Street Layer

The street layer must be in the project coordinate system before buffering. If it remains in WGS84 (EPSG:4326), the buffer distance will be interpreted in degrees and will not produce correct results.

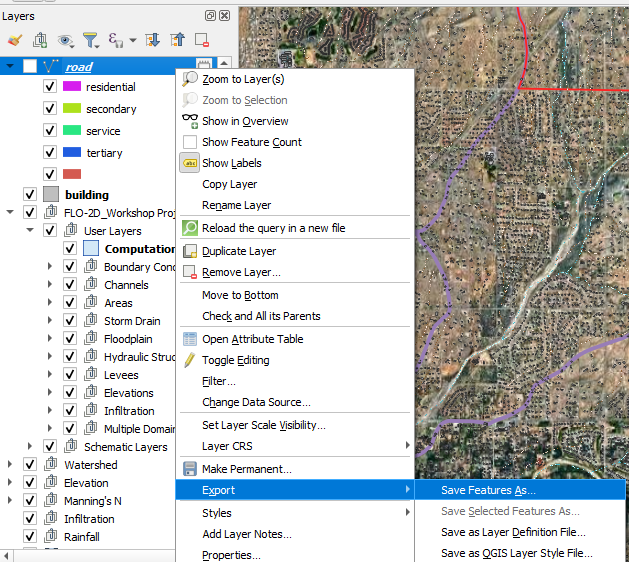

Right-click the Roads layer.
Select Export → Save Features As.

hydrow043a

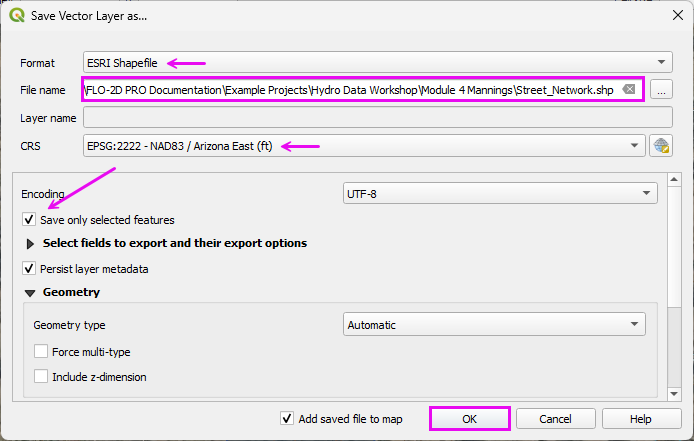

Set Format to: ESRI Shapefile
Set the Coordinate Reference System (CRS) to: EPSG:2222
Choose an appropriate file name and save location.
Check Selected Features.
Click OK.

hydrow043d

The street layer is now in projected units (feet), and buffer distances will be applied correctly in the next step.

Step 3: Create street layer buffer

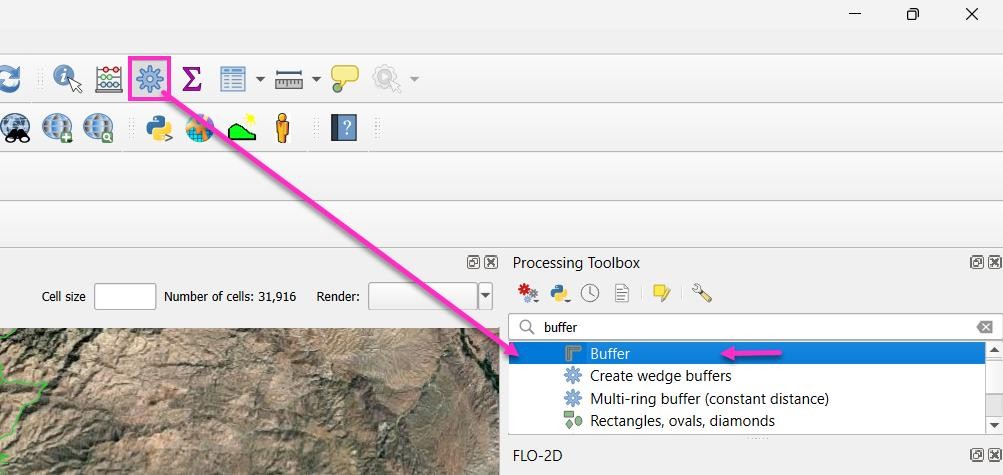

Run the Buffer tool from the Processing Toolbox.

hydrow042

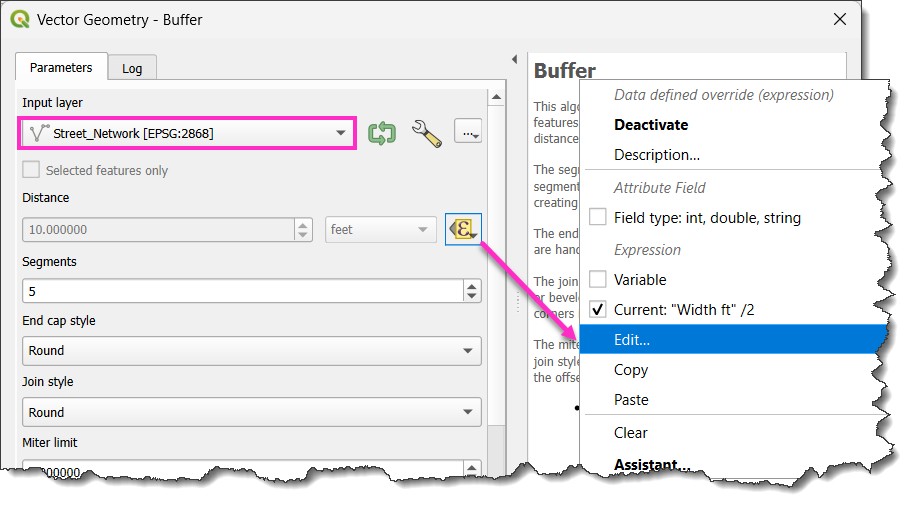

Load the Street Network in the editor and set the buffer distance to Edit Expression.

hydrow043

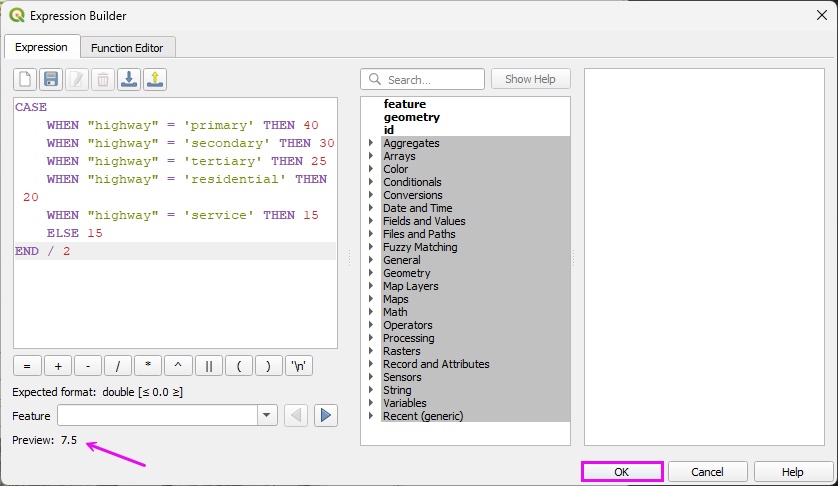

Copy code into the Expression Editor to determine the buffer width by street type.

CASE
    WHEN "highway" = 'primary' THEN 40
    WHEN "highway" = 'secondary' THEN 30
    WHEN "highway" = 'tertiary' THEN 25
    WHEN "highway" = 'residential' THEN 20
    WHEN "highway" = 'service' THEN 15
    ELSE 15
END / 2

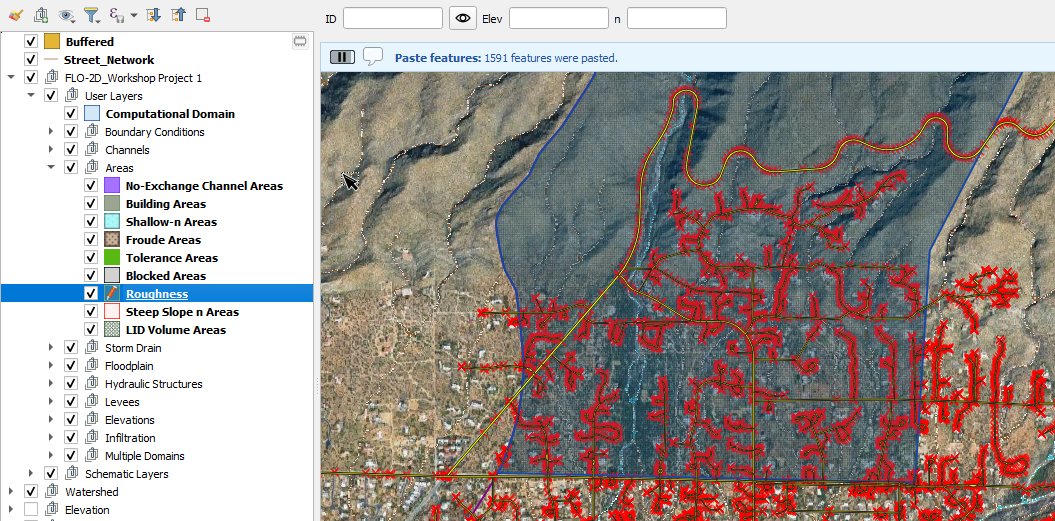

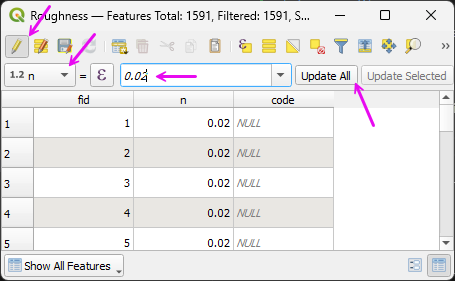

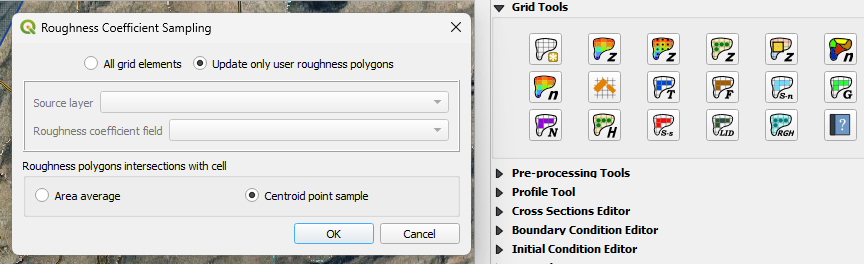

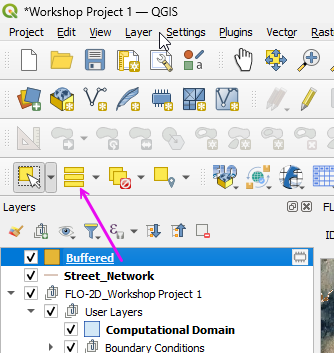

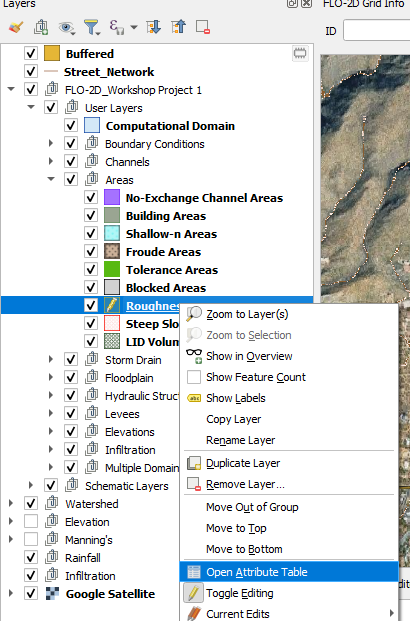

hydrow043c
